What Is an Anodizing Line Cleaning Brush?
An anodizing line cleaning brush is a specialized mechanical brush installed in a continuous or batch anodizing line to remove surface contamination from aluminum profiles or sheets. The contamination can be loose dust, metal fines, light oxide layers, pretreatment residues, or airborne debris. The brush typically runs in a fixed position—after pretreatment or just before the anodizing tank—making either dry or wet contact with the moving aluminum surface. Its job is to improve surface cleanliness without scratching, galling, or embedding particles that could cause anodizing defects.
Common Types of Anodizing Line Cleaning Brushes
For the safety point in this section, the relevant OSHA reference is OSHA — Hazard Communication.
For the safety point in this section, the relevant OSHA reference is OSHA — Chemical Hazards and Toxic Substances.
For material-selection language, this section is supported by World Stainless — Corrosion Resistance of Stainless Steels.
For brush terminology and construction language, this section references American Brush Manufacturers Association — Brush Lingo.
Several brush configurations are used in aluminum anodizing lines. The main types are:
- Roller brushes: Full-width cylindrical brushes that span the sheet or profile width. They are the most common for continuous sheet lines and wide profiles.
- Strip brushes: Flexible linear brushes held in a holder; often used to clean profiles with irregular shapes or channels.
- Cup brushes: Often used on dedicated machines to clean specific areas or hard-to-reach profile details.
- Disc brushes: Face-cleaning brushes for end or edge treatment, less common in high-speed anodizing lines.
This article focuses on roller brushes because they dominate high-volume aluminum anodizing lines.
Bristle Material Comparison for Anodizing Applications
The bristle material dictates how the brush interacts with the aluminum surface. The wrong choice can cause scratches, chemical attack, or rapid wear. Below is a comparison of materials commonly used in aluminum anodizing line cleaning brushes.
| Bristle Material | Surface Sensitivity | Wet/Dry Suitability | Chemical & Temp Resistance | Typical Use Case |
|---|---|---|---|---|
| Abrasive nylon (SiC or AlOx) | Low (can remove thin oxide, but risk of scratching bright surfaces) | Dry or wet | Good up to ~100°C, resistant to mild acids/alkalis | Light oxide removal, pre-anodizing surface activation |
| Nylon (non-abrasive) | Medium (gentler cleaning) | Dry or wet, often with water spray | Similar to abrasive nylon | Dust and particle removal from sensitive surfaces |
| Natural fiber (Tampico) | High (very soft, non-scratching) | Best when wet; can absorb water and chemicals | Less resistant to strong chemicals, max ~80°C | Wiping and final clean before anodizing |
| Stainless steel wire | Very low (high scratch risk; not recommended for most anodizing) | Dry or wet | Excellent chemical and temperature resistance | Heavy scale removal on non-aesthetic surfaces; use with caution to avoid ferrous contamination |
| Brass wire | Low (softer than steel but still can scratch) | Dry or wet | Good chemical resistance, non-sparking | Rarely used; may leave brass traces on aluminum |
For most aluminum anodizing lines, non-abrasive nylon or medium-grit abrasive nylon offers the best balance of cleaning and surface protection.
Key Factors for Choosing the Right Brush
Selecting an aluminum profile and sheet anodizing line cleaning brush goes beyond bristle material. Evaluate these factors in parallel:
- Surface finish requirements: Architectural anodized profiles demand scratch-free surfaces, so avoid steel wire and go with soft or medium nylon. For industrial parts where aesthetics are secondary, a mildly abrasive brush may be acceptable.
- Contaminant type: Dust and small fibers need a soft, dense brush; light oxide or smut may need an abrasive nylon; heavy scale requires a chemical pre-clean before brushing.
- Line speed and brush diameter: The brush surface speed must match the line speed to allow sufficient contact time. A larger diameter brush can achieve higher surface speed without excessive RPM, which helps with bearing life.
- Wet vs. dry operation: Wet brushing (water spray, rinse water, or chemical solution) reduces dust and cools the brush. Some bristle materials lose stiffness when wet; factor this into your choice.
- Installation space and mounting: Measure the available gap, shaft diameter, and bearing supports. Custom-bore roller brushes must fit your existing journals or quick-change hubs.
- Temperature and chemical exposure: Brushes near pretreatment tanks may see acidic or alkaline mists. Ensure the bristle and core material (aluminum, steel, or composite) are compatible.
Installation and Maintenance Considerations
Even the best brush performs poorly if misaligned or not maintained. Set the brush contact depth so that only the bristle tips touch the surface—excessive pressure accelerates wear and can generate enough heat to soften nylon. On wet lines, ensure the brush is shielded from direct chemical spray if its core is not corrosion-resistant. Schedule regular inspections for bristle wear, core runout, and bearing condition. A worn brush can become uneven and cause streaky cleaning. In continuous lines, quick-change brush assemblies reduce downtime.

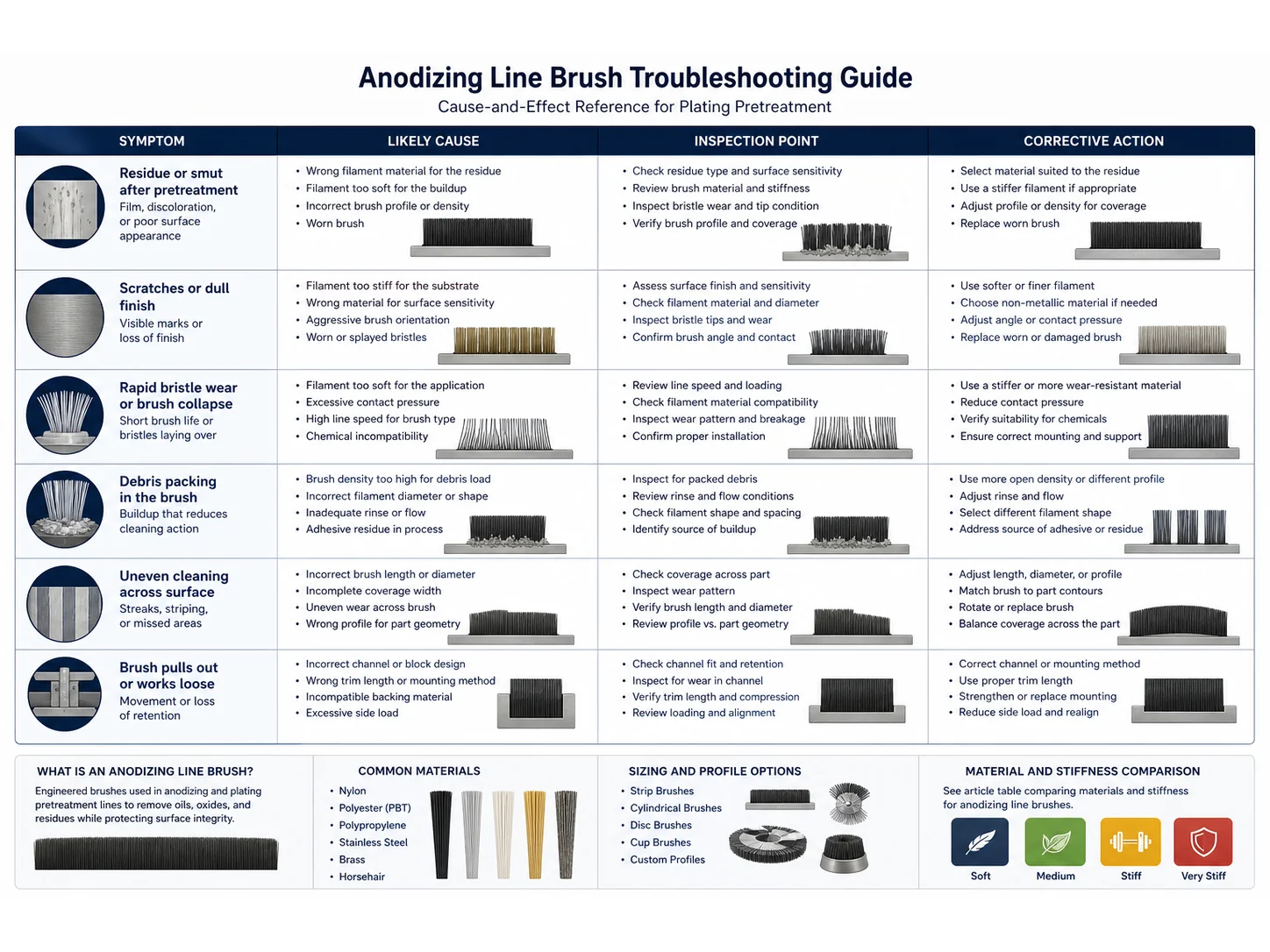

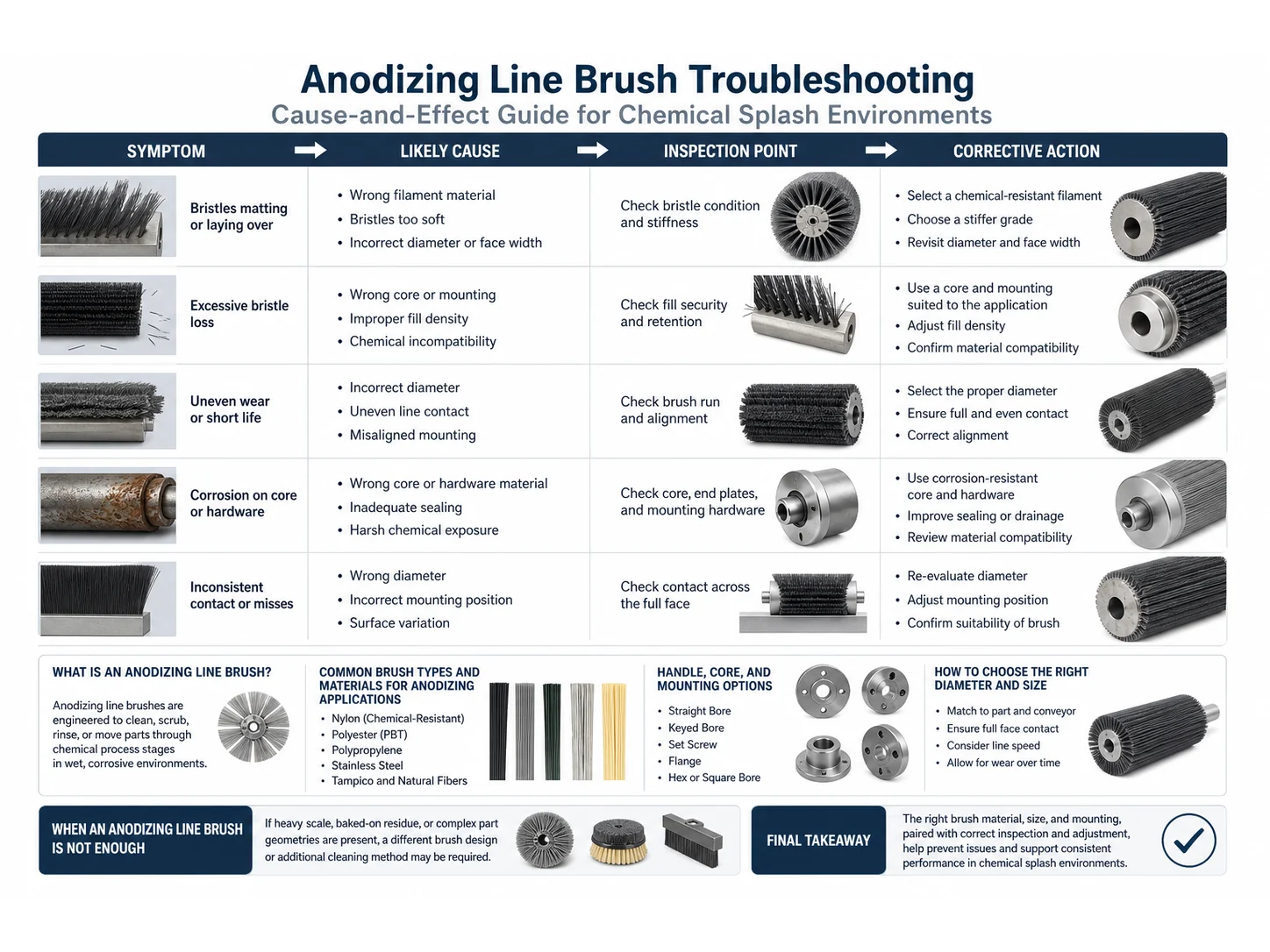

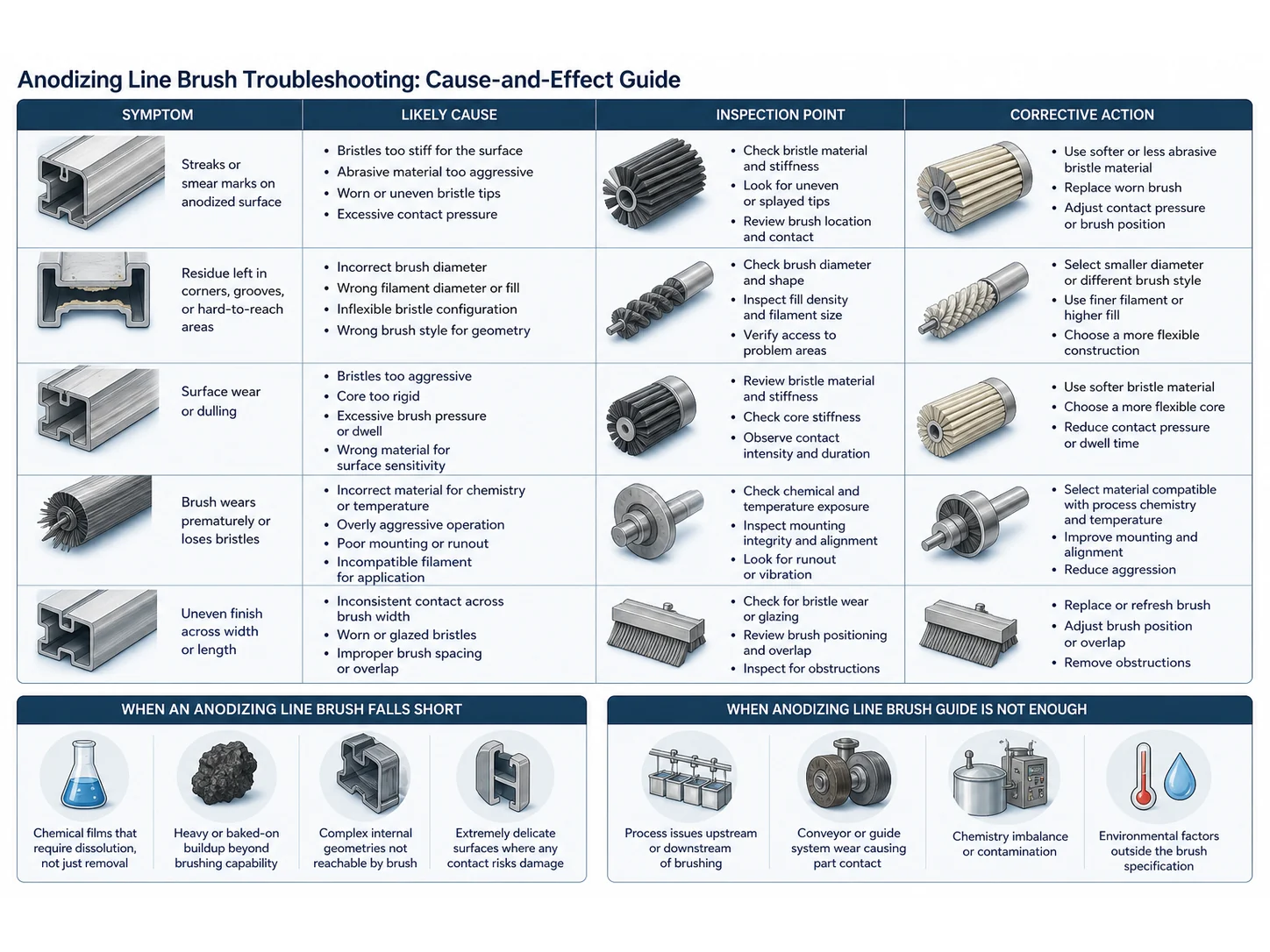

Common Mistakes When Selecting an Anodizing Line Cleaning Brush
Avoid these frequent errors:
- Using steel wire brushes on aluminum: This can embed iron particles that cause galvanic corrosion spots after anodizing. Stick to nylon or specified non-ferrous materials.
- Ignoring chemical compatibility: Nylon bristles can degrade in strong alkaline or acidic environments at elevated temperatures. Confirm chemical concentrations and operating temperature with the brush supplier.
- Overlooking line speed mismatch: A brush diameter that is too small at high line speeds results in insufficient dwell time and poor cleaning. Conversely, an oversized brush may not fit or may require excessively high RPM.
- Choosing by cost or generic specs alone: A low-cost brush with the wrong bristle density or core material will wear faster and may damage product, increasing total cost.
- Skipping mounting detail verification: A brush with the wrong bore size, keyway, or flange pattern can delay installation and add machining costs.
When a Cleaning Brush Alone Is Not Enough
A rotating brush provides mechanical surface cleaning, but it has limits. For heavy oil, grease, or drawing compounds, a degreasing stage (alkaline or solvent) must precede the brush. When microscopic dust or lint remains after brushing, an air knife, vacuum extraction, or tacky roller may be added downstream. For scale or thick oxide layers, the pretreatment line needs an etching or pickling tank; the brush cannot remove chemically bonded scale without damaging the substrate. In high-purity applications like capacitor foil or optical-grade anodizing, brushing may need to be replaced or supplemented by ultrasonic cleaning or clean-in-place (CIP) systems to meet stricter cleanliness specs. Recognize these boundaries to avoid over-relying on one component.
What to Confirm Before Ordering
When you are ready to specify or order an aluminum profile and sheet anodizing line cleaning brush, have the following information ready:
- Brush type (roller, strip, etc.) and dimensions: outer diameter, overall length, bore diameter, and keyway if any.
- Bristle material and required density (e.g., abrasive nylon 320 grit, medium density).
- Mounting method: shaft with key, through-bore with flanges, or quick-change adapter.
- Line speed (m/min or ft/min) and the desired surface speed of the brush.
- Operating environment: dry, wet (describe liquid), temperature range, and chemical exposure.
- Desired cleaning result: just dust removal, light oxide scrub, or other. Ask for a drawing or sample brush if the application is new.
This preparation helps avoid mis-specification and ensures the brush supplier can offer a fit-for-purpose solution without unrealistic performance claims.
Final Takeaway
Choosing the right anodizing line cleaning brush starts with understanding your aluminum surface, the contamination you need to remove, and the mechanical constraints of your line. Match bristle aggressiveness to your surface finish requirements, and balance line speed with brush diameter. Specify all mounting details before ordering, and never assume a brush alone will solve a chemical cleaning problem. When in doubt, consult with an experienced brush maker and run a trial on scrap material before full production.
Frequently Asked Questions
Can I use steel wire brushes on aluminum anodizing lines?
Generally, no. Steel wire can scratch the aluminum and leave embedded iron particles that cause pitting or discoloration after anodizing. If you must use a wire brush for heavy oxide, choose stainless steel and follow with a chemical de-smut step, but nylon abrasive brushes are safer for most applications.
What bristle material is safest for bright anodized surfaces?
Non-abrasive nylon or soft Tampico are the safest choices because they clean gently without leaving scratches. For bright architectural finishes, always test first on a sample to ensure no micro-scratching occurs.
How often should I replace the cleaning brush?
Replacement depends on line speed, bristle loading, and contamination load. Monitor bristle length and evenness. When bristles become too short to contact the aluminum with the correct pressure, or when cleaning quality visibly drops, it’s time to replace. On high-volume lines, planning for periodic changeouts during scheduled downtime is common.
Should I run the brush dry or with water?
Wet operation usually extends brush life, reduces heat buildup, and helps carry away loose debris. However, some processes require dry brushing to avoid introducing moisture before anodizing. Check your line’s process constraints before deciding.
Can a cleaning brush remove etching smut?
No. Etching smut is a tightly adherent layer of alloying constituents that requires chemical desmutting (usually nitric or sulfuric acid dip). A brush alone will be ineffective and may drive smut deeper into the surface.
How do I measure the correct brush diameter for my line?
Measure the available space from the mounting shaft centerline to the aluminum surface to determine the maximum brush radius. Then allow for a small gap so the brush doesn’t bottom out. The brush diameter is twice the effective radius. Always account for future bristle wear in your minimum clearance.
What is the difference between a strip brush and a roller brush in anodizing?
A strip brush is a linear brush held in a holder, often adjustable, used for cleaning edges or profiles with complex cross-sections. A roller brush is a full cylinder that cleans the entire sheet or profile width uniformly. Roller brushes are more common for wide sheets, while strip brushes can be customized for shaped profiles.
Can I use the same brush for different aluminum alloys?
Usually yes, if the alloys have similar surface hardness and you are removing similar contaminants. However, if you switch from a soft alloy to a harder one, or from a bright finish to a matte, re-evaluate bristle aggressiveness to avoid surface damage.
