How to Choose Anti-Static Carbon Fiber Brush

What Is an Anti-Static Carbon Fiber Brush?

An anti-static carbon fiber brush is a cleaning or static elimination tool that uses conductive carbon fiber bristles to safely dissipate electrostatic charges and remove loose contaminants from a surface. Because carbon fiber is both conductive and resistant to many chemicals, it can ground static while mechanically sweeping away dust, fibers, or debris — without generating a harmful static charge of its own. These brushes are commonly mounted on conveyors, roll‑to‑roll systems, or manual handles, and they are used in applications such as cleaning substrates before coating, removing dust from electronic assemblies, and neutralizing static on moving webs.

Common Types and Bristle Configurations

For static-control claims, this article uses EOS/ESD Association — ESD Fundamentals as the ESD reference.

For static-control claims, this article uses EOS/ESD Association — Principles of ESD Control as the ESD reference.

For material-selection language, this section is supported by British Plastics Federation — Thermoplastics.

For brush terminology and construction language, this section references American Brush Manufacturers Association — Brush Lingo.

Anti-static carbon fiber brushes come in several forms, each suited to different machine positions and cleaning tasks.

• Strip brushes — Long, linear brushes that mount across a web or conveyor. They provide continuous contact and are ideal for wide, flat surfaces.
• Roller brushes — Cylindrical brushes that rotate against the surface. They are often used where self‑cleaning action or uniform contact pressure is needed at higher speeds.
• Pencil or spot brushes — Small, handheld or fixture‑mounted brushes for localized cleaning or detail work.
• Edge and groove brushes — Designed to clean recessed areas, edges, or irregular profiles.

Bristle configuration also matters: density (fine vs. coarse tow), fiber length, and whether the brush is grounded through the body or via a separate ground wire. Some brushes use pure carbon fiber, while others blend carbon with conductive nylon or metallic fibers for specific performance needs.

Application‑Based Selection Guide

The right bristle material and configuration depend on your operating conditions. Use the table below to compare common options.

Note: The above table provides general guidance. Always test a brush under your actual process conditions when possible.

How to Choose the Right Brush: Key Decision Factors

Selecting an anti-static carbon fiber brush goes beyond picking a bristle material. Evaluate these factors to narrow your choices.

• Contact surface material and texture — Delicate surfaces need fine, soft carbon fiber; rough or uneven surfaces may tolerate coarser or blended fibers.
• Type of contamination — Dry, loose dust is easily removed by carbon fiber; sticky or wet residues may require a different cleaning approach or a brush with moisture‑resistant fibers.
• Line speed and duty cycle — Higher speeds demand brushes that maintain consistent contact without bouncing or wearing prematurely.
• Operating environment — Temperature extremes, humidity, chemical exposure, and washdown requirements influence bristle and backing material choice.
• Mounting and available space — Confirm whether a strip, roller, or spot brush fits your machine layout and if a grounded mounting bracket is needed.
• Maintenance access and frequency — Brushes that are difficult to reach should be durable and require less frequent replacement or cleaning.

Before Ordering: What to Confirm

When requesting a quote or preparing a purchase specification, ensure the following details are clear. Suppliers often ask for this information to recommend or build the right brush.

• Exact dimensions — Overall length, bristle envelope (width × height), and backing profile.
• Mounting method — Clamp‑on, bolt‑on, magnetic, or custom bracket. Provide drawing or machine photos if possible.
• Grounding connection — Specify if a ground wire, terminal, or conductive housing is needed.
• Sample or drawing reference — If replacing an existing brush, supply a sample, part number, or detailed sketch.
• Expected cleaning result — Define the target cleanliness level (e.g., particle size, residual static voltage) to help the supplier validate the solution.
• Process conditions — Web speed, tension, temperature, chemicals, and whether the brush will be stationary or moving.

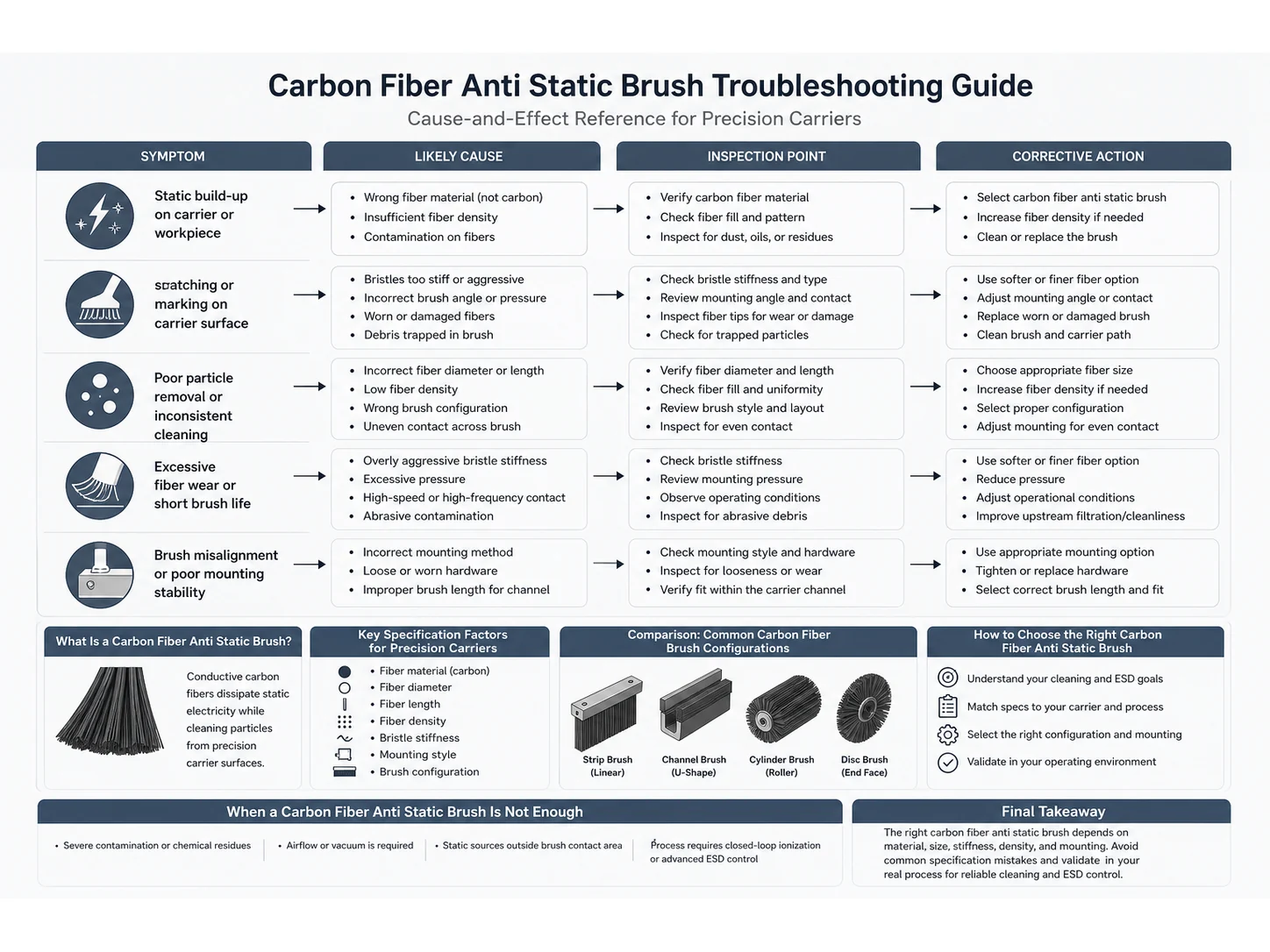

Common Mistakes in Selection

Avoid these errors — they often lead to premature brush failure or ineffective static control.

• Ignoring the grounding path — A conductive brush that is not properly connected to earth ground will not dissipate static effectively.
• Overlooking maintenance access — A brush buried deep inside a machine will be neglected, causing buildup and degraded performance.
• Choosing by cost alone — Low‑cost brushes may use inferior carbon fiber that sheds, wears quickly, or loses conductivity.
• Assuming one brush works for all speeds — A brush that works at low speed may lift or bounce at higher speeds, leaving static unneutralized.
• Not matching fiber grade to contamination type — Coarse bristles on a delicate surface cause scratches; fine bristles on rough surfaces wear out too fast.
• Forgetting environmental limits — Using a brush beyond its temperature or chemical resistance can warp the backing or degrade the fibers.

When an Anti-Static Carbon Fiber Brush Alone Is Not Enough

Even the best‑selected brush has its limits. In many processes, a brush should be part of a broader static and contamination control strategy.

• High‑volume web cleaning — Pair brushes with a vacuum extraction system to capture dislodged particles and prevent re‑contamination.
• Removing stubborn residues — Brushes can loosen debris, but a downstream air knife or air blade can blow away remaining particles.
• Wet or sticky soils — A scraper or pre‑rinse may be needed before the brush, or a clean‑in‑place (CIP) system might be more effective.
• Sub‑micron particle control — For ultra‑clean environments (e.g., semiconductor), combine brush cleaning with ultrasonic or mega‑sonic agitation.
• Explosive dust atmospheres — Verify that the entire assembly (brush, mount, and grounding) meets ATEX or equivalent safety standards; brushing alone may not be sufficient.

Final Takeaway

Selecting an anti-static carbon fiber brush is about matching the fiber grade, physical form, and grounding method to your specific surface, contamination, and process conditions. Start by clearly defining what you are cleaning, at what speed, and in what environment. Confirm dimensions, mounting, and grounding before ordering. And remember that in many cases, the best results come from combining the brush with auxiliary static control or extraction systems. A well‑chosen brush reduces defects and downtime — but it all begins with asking the right questions.
