What Is a Chimney Brush Rod?
A chimney brush rod is a sectional or one‑piece shaft used to drive a chimney brush through a flue. It must withstand bending, torsion, and sometimes chemical exposure while maintaining a secure connection to the brush. Rods are most commonly made from fiberglass, nylon, or polypropylene, and they connect together with quick‑coupling fittings or threaded adapters to match the length of the flue.
For fire-safety language, this article uses USFA — Heating Fire Safety as the public-safety source.
For combustion-appliance and chimney-adjacent risk language, CPSC — Carbon Monoxide Information Center is used as a safety reference.
For fire-safety language, this article uses USFA — Clothes Dryer Fire Safety Flyer as the public-safety source.
For roof-access and work-at-height cautions, the supporting public-safety reference is HSE — Safe Working on Roofs.
For the safety point in this section, the relevant OSHA reference is OSHA — 1910.23 Ladders.
For the environmental or chemical-safety point in this section, the supporting reference is EPA — Nonpoint Source: Urban Areas.
In soot cleaning, the rod’s job is to transfer motion without snapping, separating, or scratching the flue liner. Soot is less abrasive and sticky than heavy third‑degree creosote, but a poor rod choice can still lead to broken sections inside the flue, incomplete cleaning, or damaged liners.
Common Types and Options
When shopping for chimney brush rods, you will encounter several standard variations. Understanding these will help you match the rod to your cleaning setup.
- Material: Fiberglass, nylon, polypropylene, or hybrid composite. Fiberglass offers high stiffness and durability; nylon provides better flex and chemical resistance.
- Diameter: Typically ¼ inch, ⅜ inch, or ½ inch. The rod diameter must match the brush hub and coupling system.
- Stiffness / Flex Grade: Some rods are sold as “flexible” for navigating offsets, while others are “rigid” for straight flues.
- Coupling Type: Quick‑connect, threaded, or pinned. Quick‑connect speeds up assembly; threaded couplings are often more secure under high torque.
- Handle / Core Connection: A T‑handle for manual use, a ¼‑inch hex shank for a drill, or a square drive for rotary cleaning machines.
- Sectional vs. One‑Piece: Sectional rods break down for storage and length adjustment; one‑piece rods avoid coupling play but are harder to transport.
Chimney Brush Rod Material Comparison
| Material | Flexibility | Durability | Chemical Resistance | Best For |
|---|---|---|---|---|
| Fiberglass | Low to medium | High | Moderate | Straight flues, heavy brushing, drill‑driven cleaning |
| Nylon | High | Medium | Very good | Curved flues, chemical cleaning, wet environments |
| Polypropylene | Medium | Medium | Excellent | Light soot, frequent cleaning, sanitary applications |
| Hybrid Composite | Varies | High | Varies | Custom rigidity needs, professional use |
How to Choose the Right Rod for Soot Removal
Soot is a soft, powdery deposit that often contains acidic particles. Your rod selection should balance flue protection and cleaning power.
- Flue type and condition: A rigid fiberglass rod may damage clay tile or delicate metal liners. Flexible nylon rods reduce the risk of scratching while still transmitting enough torque to remove soot. For stainless steel liners, stick to nylon or polypropylene.
- Soot thickness and buildup: Light soot can be removed with a flexible rod and soft brush. Thicker, greasy soot may require a stiffer rod to apply more scrubbing pressure.
- Cleaning method: Manual cleaning with a T‑handle works well with lighter, flexible rods. Drill‑driven cleaning demands a rod that resists whipping and can handle higher RPMs, such as a stiffer fiberglass rod.
- Rod diameter compatibility: Check that the rod’s diameter matches your brush hub. A loose fit causes wobble and uneven cleaning; a forced fit can crack the hub.
- Chemical exposure: If you plan to use water, soot‑loosening sprays, or acidic cleaners, choose nylon or polypropylene rods, which resist swelling and degradation better than fiberglass.
- Frequency of use: Professional sweeps who clean multiple chimneys per day should prioritize quick‑connect couplings and durable fiberglass or composite rods. Occasional homeowners can manage with nylon sectional rods.
Setup and Usage Factors That Influence Choice
Beyond the rod itself, how you set up and use the system matters.
- Rod sag and support: Long rod strings can sag inside the flue, causing the brush to lose contact with the walls. Stiffer rods reduce sag, but adding a rod guide can help with flexible rods.
- Coupling security: Quick‑connect couplers are convenient, but they can accidentally disconnect if pulled backward while spinning. Threaded couplings or locking collars add safety.
- Storage and maintenance: Fiberglass rods can develop surface cracks if stored wet or in freezing temperatures. Nylon rods resist moisture but may become brittle with UV exposure. Store rods indoors, dry, and away from direct sunlight.
- Extension considerations: For tall chimneys, you may need multiple rods. Ensure the joints are smooth and do not catch on the flue liner. A slight taper or smooth coupler design helps.

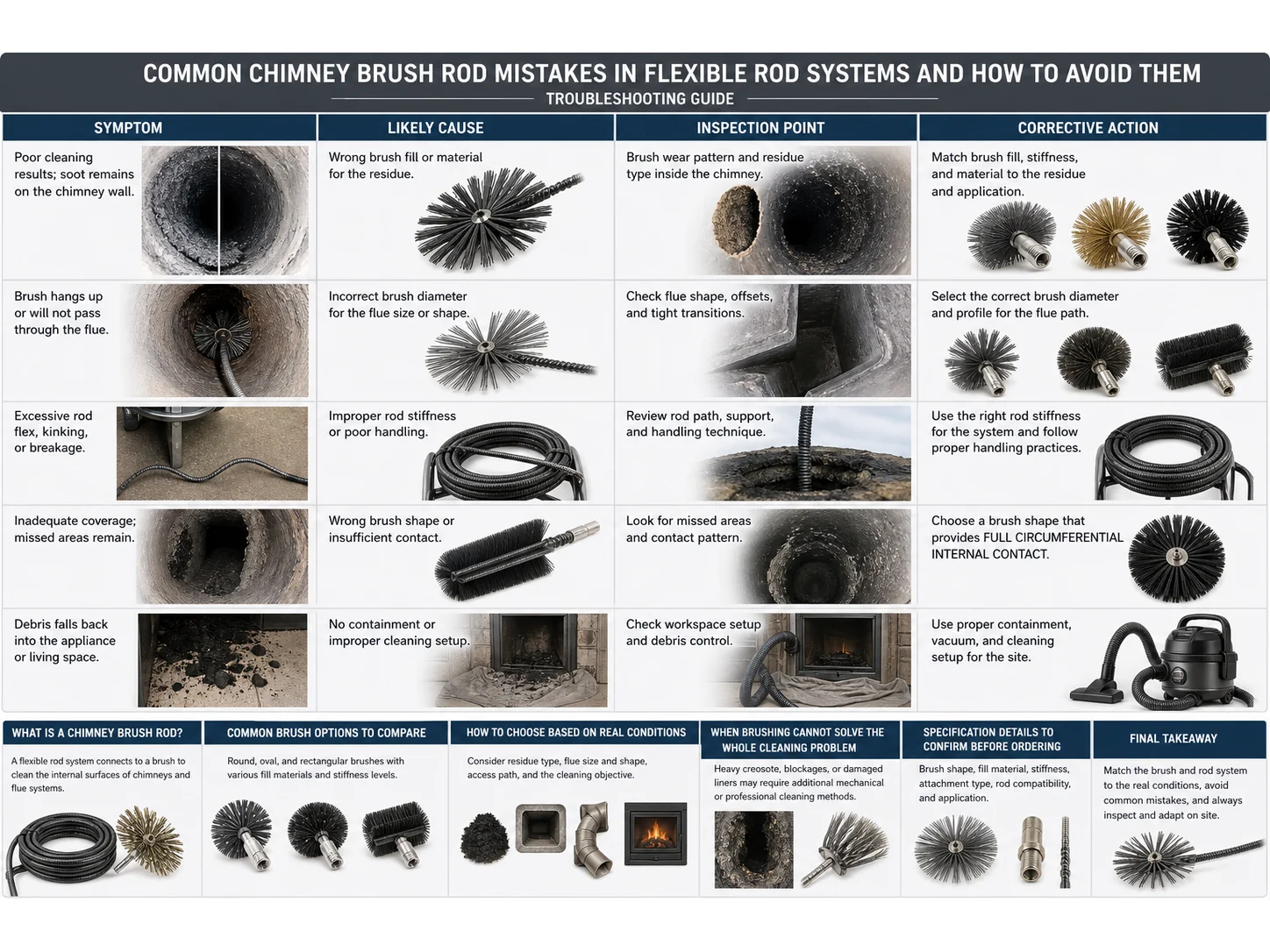

Common Mistakes When Selecting a Chimney Brush Rod
- Choosing by cost drivers alone: A low-cost rod that snaps inside the chimney can cost far more in retrieval and damage than the initial saving.
- Ignoring flexibility versus stiffness: A rod that is too stiff can’t navigate offsets; a rod that is too flexible can’t apply effective scrubbing pressure.
- Mismatching couplings: Not all “standard” couplings fit every brush. Check the thread pitch, quick‑connect style, and diameter before buying.
- Overlooking chemical compatibility: Using a fiberglass rod with acidic cleaners can cause the resin to break down, leading to rod failure.
- Skipping a sample or fit check: Even if specifications match, physical fit can vary by manufacturer. A quick test assembly before descending into the flue prevents mid‑job surprises.
When a Chimney Brush Rod Is Not Enough
Even the best rod has limits. Understand when you need a different approach or professional help.
- Heavy glazed creosote: Soot rods and brushes struggle with hard, shiny creosote. You may need a rotary loop system, chemical treatment, or a professional sweep with specialized tools.
- Irregular or oversized flues: A single round brush on a rod cannot clean square, oval, or extremely large flues evenly. Multi‑brush heads, rotary whips, or custom brush sizes may be necessary.
- Structural flue damage: If the flue liner is cracked, spalling, or has missing mortar joints, a brush rod could worsen the damage. A professional inspection and repair should come first.
- Excessive rod length without support: Connecting many flex rods creates a column that can buckle or tangle. If your chimney exceeds the manufacturer’s recommended rod length, consider a winch‑based cleaning system or professional service.
Final Takeaway on Rod Selection
For routine chimney soot removal, match the rod material and stiffness to your flue type and cleaning method. Flexible nylon or polypropylene rods are safe and effective for most homeowner situations. Fiberglass rods offer durability for drill‑driven cleaning in straight flues. Always verify coupling compatibility, consider chemical exposure, and avoid the temptation to sacrifice quality for cost drivers. A proper rod selection makes soot cleaning faster, safer, and damage‑free.
Frequently Asked Questions
What is the difference between a chimney brush rod and a chimney brush handle?
A rod is an extension shaft that connects the brush to the power source or manual grip. A handle is the part you hold (like a T‑handle) that attaches to the top of the rod string for manual rotation.
Can I use a chimney brush rod with a power drill?
Yes, if the rod has a ¼‑inch hex shank or drill adaptor. Make sure the rod is rated for the RPM and torque your drill produces. Flexible rods work better at lower speeds; stiff fiberglass rods handle higher speeds.
How many chimney brush rods do I need for a standard chimney?
Measure the flue height and add one rod section for the brush and handle. Typical residential chimneys need 3–6 four‑foot rods. It is safer to have one extra rod than to come up short.
Are nylon chimney brush rods better than fiberglass for soot?
Nylon rods are more flexible and resist moisture and mild chemicals, making them ideal for light soot in curved flues. Fiberglass rods are stiffer and more durable for heavy soot in straight flues. The “better” choice depends on your specific flue conditions.
Can a chimney brush rod damage stainless steel liners?
A stiff fiberglass rod can scratch or dent a thin stainless steel liner if forced. Nylon or polypropylene rods are gentler. Always use a brush with soft bristles on metal liners, and keep the rod centered to avoid side pressure.
Do I need a special adapter to connect different brands of rods and brushes?
Not always, but brand mixing can be risky. Quick‑connect styles vary (ball‑lock, pin‑lock, threaded). Check the thread size or coupling type; if in doubt, use rods and brushes from the same brand or request a sample fit from the supplier.
How should I store chimney brush rods to make them last longer?
Disconnect sections, wipe off soot and moisture, and store in a dry place away from direct sunlight. Fiberglass rods should not be stored in freezing temperatures if damp, as water expansion can create micro‑cracks.
What rod diameter should I choose for a 6‑inch brush?
Most 6‑inch chimney brushes have a ¼‑inch or ⅜‑inch hub. Measure the brush hub opening first, then select a rod with a matching core diameter. A too‑small rod will cause wobble; a too‑large rod will not fit.
