What Is a Food Conveyor Belt Brush?
A food conveyor belt brush is a cleaning component that uses bristles or filaments to dislodge debris from moving conveyor belts. In dry dust applications, it typically operates without water or chemicals and relies on mechanical action to sweep or flick dust off the belt surface. These brushes are common in bakeries, snack processing, grain handling, and other operations where dry, loose particles accumulate. The right brush improves hygiene, reduces cross-contamination risks, and extends belt life by preventing abrasive buildup.
Common Types of Conveyor Belt Brushes for Dry Dust
For food-service sanitation language, the FDA — Food Code is the reference point for food safety terminology rather than a brush manufacturer’s preference.
For the material or regulatory boundary in this section, the supporting reference is eCFR — 21 CFR 177.1500 Nylon Resins.
For the material or regulatory boundary in this section, the supporting reference is eCFR — 21 CFR 177.1520 Olefin Polymers.
For the material or regulatory boundary in this section, the supporting reference is eCFR — 21 CFR 177.1630 Polyethylene Phthalate Polymers.
For the safety point in this section, the relevant OSHA reference is OSHA — Machine Guarding.
For the safety point in this section, the relevant OSHA reference is OSHA — Control of Hazardous Energy.
While many brush configurations exist, the most common options for dry dust removal include:
- Rotary roller brushes: Mounted across or alongside the belt, driven by a motor or belt friction, continuously sweeping dust into a collection tray.
- Fixed strip brushes: Stationary brushes that scrape against the belt surface; low-cost but require manual cleaning and replacement more often.
- Across-the-belt sweep brushes: Full-width brushes that remove debris from the entire belt width in one pass, often used at transfer points.
- Tube or spiral brushes: Cylindrical brushes fitted onto a shaft, ideal for cleaning curved or tracked belts.
For dry dust, rotary roller brushes are typically preferred because they provide consistent cleaning force without constant manual adjustment.
Comparing Brush Materials and Features for Dry Dust
The filament material is the most critical factor for effective dry dust removal. Use the table below to compare common food-grade brush materials based on stiffness, moisture tolerance, and typical applications.
| Material | Stiffness | Moisture Tolerance | Food Contact Suitability | Best For |
|---|---|---|---|---|
| Nylon (solid or abrasive-filled) | Medium–high | Good | Yes (FDA-grade available) | Flour, grain dust, abrasive cleaning |
| Polypropylene | Low–medium | Excellent | Yes | Light, sticky dusts; chemical resistance |
| Tampico (vegetable fiber) | Low–medium | Poor (absorbs water) | Yes | Delicate belts; gentle sweeping of fine dust |
| Horsehair | Very low | Poor | Yes (if from approved source) | Extremely sensitive surfaces; polishing |
| Blends (Nylon/Polyester) | Customizable | Varies | Check individual components | Compromise between wear and flexibility |
For dry dust, nylon is often the default choice because of its durability and cleaning power. Tampico is a good alternative when the belt surface is easily scratched.
How to Choose the Right Brush for Your Application
Follow this step-by-step decision path to narrow down your options.
- Analyze your dust: Is it fine (like flour) or coarse (like breadcrumbs)? Is it free-flowing or sticky? Fine dust may require softer filaments to avoid scattering; coarse particles call for stiffer bristles.
- Assess belt surface and tension: A delicate urethane belt cannot tolerate hard bristles; a thick rubber belt can withstand aggressive cleaning. Also, check if the brush will press against a flat surface or a troughed profile.
- Determine mounting location: Space constraints often dictate whether you use a compact strip brush or a full-width roller. Consider how the brush will be driven—by separate motor or by belt contact.
- Select filament type, density, and trim length: Based on the material comparison above. Denser filaments provide more cleaning points but may trap dust; longer trim is more flexible but may fold over on stiff bristles.
- Confirm hygiene requirements: Food contact zones demand FDA-approved filaments and corrosion-resistant cores. Even if the brush is not in direct food contact, nearby debris can contaminate product.
- Plan maintenance access: Can operators easily remove, clean, and replace the brush? Clogged brushes become a contamination source themselves.

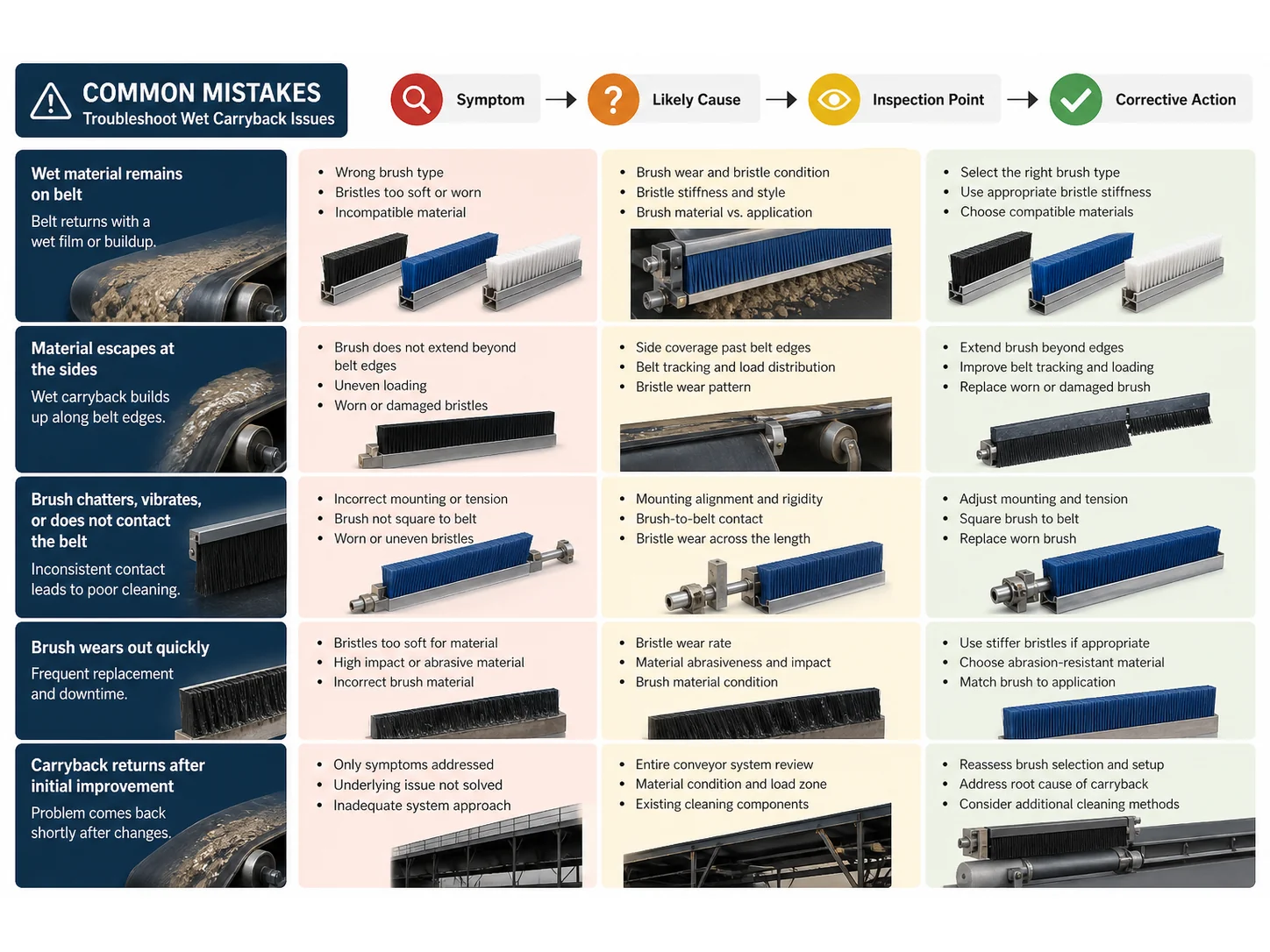

Common Mistakes to Avoid
- Choosing stiffness by guesswork: Too stiff and you wear out the belt quickly; too soft and the brush doesn’t clean effectively. Always test a sample piece.
- Ignoring filament memory: Nylon filaments can take a permanent set if bent too far, reducing cleaning efficiency. Check the filament’s flexural properties.
- Using a wet-rated brush for dry dust: Some materials (like Tampico) absorb moisture from the air and become limp, losing stiffness in dry applications.
- Neglecting static electricity: Dry dust generates static; if your environment is explosion-sensitive, look for anti-static filaments or grounding options.
- Mounting the brush incorrectly: Uneven pressure or misalignment causes premature wear and streaky cleaning.
When a Standard Brush Isn’t Enough
A standard food conveyor belt brush handles routine dry dust well, but there are limits:
- If the dust is mixed with grease or oil, mechanical brushing alone will spread it rather than remove it. A combination brush and dry-steam or minimal water system might be necessary.
- For very fine, low-density powders (e.g., starch cloud), a brush can suspend dust in the air; you may need an integrated dust collection hood with vacuum.
- Explosive dusts (e.g., sugar dust) may require conductive filaments and grounding to prevent static discharge.
- High-temperature belts (above 180°F) can deform standard filaments; heat-stabilized nylons or special blends are required.
- Complex belt profiles, cleats, or sidewalls often need a custom-shaped brush or segmented roller.
If your situation matches any of these, consult a brush manufacturer with a sample of your belt and dust. A drawing review or on-site test can prevent costly mistakes.
Final Takeaway
Choosing the right food conveyor belt brush for dry dust comes down to understanding your dust, your belt, and your production environment. Start with a durable material like nylon for heavy-duty cleaning or Tampico for sensitive belts, then fine-tune the stiffness, density, and mounting based on real-world testing. Avoid the temptation to simply pick the stiffest brush—a balanced choice saves both belt life and cleaning downtime.
Practical Use Note
In daily use, the practical test is simple: check whether the brush reaches the full contact area, removes the target residue, and leaves the surface in the required condition. Record what changes when residue type, food-contact area, cleanability, storage, and cross-contamination risk changes, because many brush failures are caused by the working condition shifting rather than by the brush body alone.
Frequently Asked Questions
Can I use the same brush for dry dust and occasional wet cleaning?
It depends on the filament material. Nylon and polypropylene tolerate occasional moisture, but Tampico or horsehair will absorb water and lose stiffness. For dual-purpose use, polypropylene or a synthetic blend is safest.
What is the best filament material for flour dust?
A soft-to-medium nylon filament works well because flour is fine and non-abrasive. Tampico is an alternative if the belt is delicate, but it may need more frequent replacement.
How do I know if a brush is FDA-compliant?
Check the manufacturer’s documentation. Look for statements indicating the filaments and core materials meet FDA 21 CFR for indirect food contact. Compliance is material-specific, not brush-wide.
How often should I replace a conveyor belt brush for dry dust?
Replacement frequency depends on filament wear, which is influenced by belt speed, dust abrasiveness, and brush pressure. Inspect weekly for bald spots, flattened bristles, or loss of cleaning effectiveness. A typical range is 3–12 months.
Can I trim a standard brush to fit my belt width?
Many roller brushes can be cut to length with a saw, but this can damage the shaft or cause unbalanced operation if done improperly. Strip brushes may be easier to trim. Always follow the supplier’s instructions.
Does a rotary brush require its own motor?
Not always. Some systems use a friction drive where the brush contacts the moving belt and spins passively. Powered drives are more effective for heavy dust and prevent belt slippage.
How do I reduce static electricity when brushing dry dust?
Use a brush with anti-static filaments (often carbon-impregnated nylon) and ensure the brush core and frame are properly grounded. In high-risk areas, a passive static eliminator bar may be needed.
What if my dust has a high moisture content or is sticky?
A purely dry brush may smear residue. Consider a low-moisture brush (polypropylene) with wider gaps between filaments to prevent clogging, or phase in a minimal water spray to aid removal without creating sludge.
