What Is an Oven Band Cleaning Brush?
An oven band cleaning brush is a brush used to clean continuous oven bands, conveyor belts, and other heated surfaces that accumulate stubborn debris during baking, roasting, or drying. Unlike general-purpose cleaning brushes, these brushes must withstand sustained or intermittent heat, resist chemical attack from cleaning agents, and often meet strict food-safety documentation requirements. The brush is typically mounted in a fixed position so that the rotating or oscillating bristles sweep the moving belt, removing build-up before it affects product quality or belt tracking.
Common Brush Types and Materials
For food-manufacturing equipment and wet food zones, eCFR — 21 CFR Part 117 Human Food CGMP and Preventive Controls is the production-side CGMP and preventive-controls reference.
When the article mentions sanitizing food-contact articles, eCFR — 21 CFR 178.1010 Sanitizing Solutions provides the regulatory context for sanitizing solutions.
For food-service sanitation language, the FDA — Food Code is the reference point for food safety terminology rather than a brush manufacturer’s preference.
For the material or regulatory boundary in this section, the supporting reference is eCFR — 21 CFR 177.1500 Nylon Resins.
For the material or regulatory boundary in this section, the supporting reference is eCFR — 21 CFR 177.1520 Olefin Polymers.
For the material or regulatory boundary in this section, the supporting reference is eCFR — 21 CFR 177.1630 Polyethylene Phthalate Polymers.
Oven band cleaning brushes come in several construction styles, each suited to different operating conditions:
- Spiral-wound brushes: Bristles are wound around a core, providing even coverage and good debris ejection. Common in wider belt applications.
- Strip brushes: A metal or plastic channel holds a continuous strip of bristles. Often used in custom profiles or smaller belt widths.
- Roller brushes: A cylindrical brush body with bristles around its circumference, driven via shaft or chain, ideal for high-speed belts.
- Disc or cup brushes: Mounted on a shaft at an angle to the belt, useful for edge cleaning or tight spaces.
Bristle materials are the most critical selection factor:
- Nylon (standard, heat-stabilized): Good for moderate temperatures (up to 300°F continuous), gentle on belts, but may soften under extreme heat.
- Polypropylene: Chemical-resistant, lower continuous temperature (around 200°F). Used where chemical exposure is high.
- Polyester: Better moisture resistance than nylon, similar temperature limits.
- PTFE (Teflon): Can handle higher temperatures (500°F+) and release sticky residues, but costs more.
- Stainless steel wire: Excellent for extreme heat (over 600°F) and heavy carbon, but may scratch belt surfaces if not properly dressed and is generally not for direct food contact unless specified.
- Brass or bronze wire: Softer than steel, used where sparking is a concern or where a less aggressive clean is needed.
- Abrasive-impregnated nylon: Contains silicon carbide or aluminum oxide grit for aggressive cleaning of hard residues; can wear belts faster.
Comparison Table: Key Brush Features for Oven Band Cleaning
| Brush Material | Max Temp. (Continuous) | Stiffness | Food-Contact Suitability | Best Residue Type | Common Mounting |
|---|---|---|---|---|---|
| Heat-stabilized Nylon | 300°F (150°C) | Medium | Yes (FDA-compliant available) | Light oils, dust, soft crumbs | Fixed bracket or quick-release holder |
| Polyester | 250°F (120°C) | Medium-firm | Yes (moisture-resistant) | Damp residues, sugar-based soils | Adjustable arm |
| PTFE | 500°F (260°C) | Soft-medium | Yes (non-stick, inert) | Sticky, high-fat, caramelized | Spiral roller or strip holder |
| Stainless Steel Wire | 800°F+ (425°C+) | High | Indirect contact only* | Heavy carbon, burnt-on scale | Shaft-mounted roller |
| Brass Wire | 450°F (230°C) | Medium | Indirect contact only* | Medium carbon, non-ferrous debris | Shaft-mounted roller |
| Abrasive Nylon | 250°F (120°C) | High | Limited (abrasive particles) | Tenacious polymerized fats | Strip or cup brush |
*Indirect contact means the brush does not touch product contact surfaces when product is present, or is used with a belt that has a scrap layer.
How to Choose an Oven Band Brush
Choosing the right brush involves balancing several practical factors:
Temperature Exposure
Measure the actual band surface temperature where the brush will be located, not just the oven setpoint. Continuous temperature ratings are conservative; intermittent spikes may be higher. Match the bristle material’s softening point, not just its melting point.
Residue Type
Light dust and flour need a softer, flagged bristle. Oily or sticky residues require a stiffer, possibly non-stick material like PTFE. Hard carbon demands wire or abrasive bristles, but never at the expense of belt damage.
Belt Material
A stainless steel mesh belt can tolerate steel wire brushes; a PTFE-coated fiberglass belt cannot. Check belt manufacturer’s recommendations for brush compatibility. Some solid belts require ultra-soft brushes to avoid scratches that harbor bacteria.
Bristle Retention
Look for brushes with set-in-place bristles, not merely glued, especially in high-heat environments. Stainless steel core and mounting hardware prevent corrosion.
Cleaning Access and Mounting
Can the brush be easily swung out, unclipped, or removed for cleaning? Does the mounting allow tension adjustment as bristles wear? Quick-release mechanisms reduce downtime.

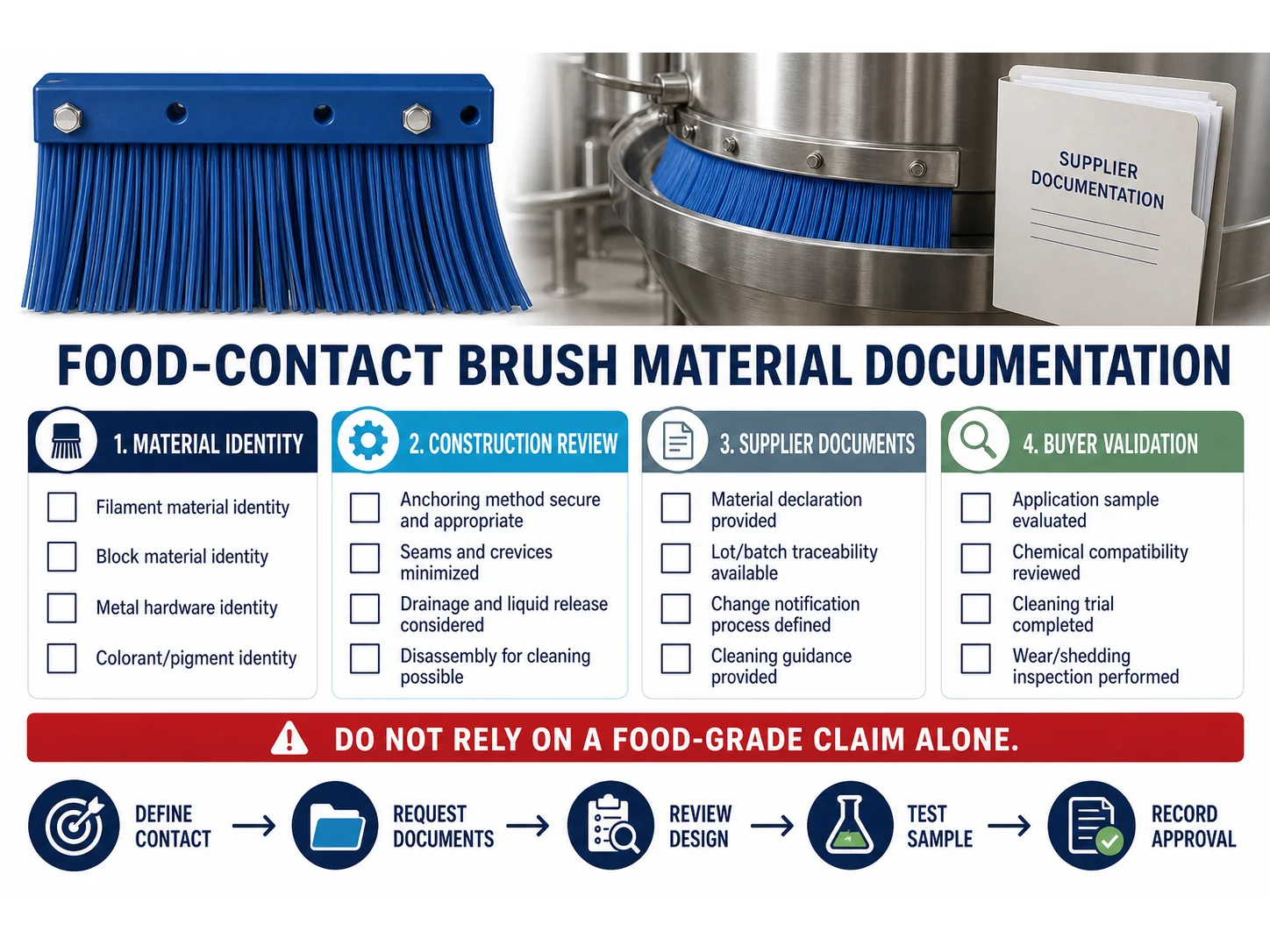

Food-Contact Documentation
If the brush touches the product zone, you’ll need a compliance letter, FDA conformity statement, or EU food-grade declaration. Brush suppliers should provide documentation on bristle material, dyes, and core construction. Keep these on file for audits.
Common Mistakes
- Choosing by cost drivers alone: A cheaper brush that sheds bristles or fails at temperature can cause costly product recalls or belt damage.
- Ignoring bristle wear pattern: A worn brush can scrub unevenly, leaving residue strips that affect product release.
- Using a wire brush on a coated belt: One shift with a steel brush can destroy a PTFE belt surface.
- Not documenting brush changes: For food safety audits, you need records of when brushes were inspected, replaced, or cleaned.
- Mounting too far from the belt: A brush that barely touches the band does nothing; too much pressure wears bristles and belt prematurely.
- Forgetting about static electricity: Synthetic bristles can generate static; consider conductive filaments or grounding in dusty environments.
When an Oven Band Brush Is Not Enough
An oven band brush is a maintenance tool, not a substitute for a clean-in-place system or a band scraper for heavy build-up. Consider alternatives when:
- Residue is thick, rock-hard, or fused to the belt, requiring a scraping blade before brushing.
- The belt material is too delicate for any bristle contact—non-contact methods like steam or ultrasonic cleaning may be needed.
- The line speed is too high for a stationary brush to be effective; an oscillating or powered roller brush may be required.
- You need validated allergen or pathogen removal; a brush alone cannot Help confirm a sanitary clean. You may need a wet wash system, documented sanitation cycles, and ATP testing.
- You are dealing with explosive dust atmospheres; then brush materials and mounting must be ATEX/FM approved.
Always consult your belt supplier and a brush engineering company before spec’ing a custom solution. Request a drawing review and, if possible, a sample brush for a trial period.
Final Takeaway
Select an oven band cleaning brush by matching bristle material to your belt surface and temperature, not by guesswork. Keep documentation for any brush that enters the food zone, and inspect regularly for wear and bristle loss. Starting with a trial or a supplier-provided sample can prevent expensive mistakes.
Frequently Asked Questions
Can I use an oven band brush while the belt is hot?
Yes, if the brush material is rated for continuous exposure at that belt temperature. Always verify the bristle softening point, not just the melting point. A PTFE or stainless steel brush may be suitable for high-heat use.
How often should oven band brushes be replaced?
There is no single interval. Inspect weekly for bristle length, splaying, and embedding of debris. Replace when bristles no longer make consistent contact with the belt or when they show signs of melting or chemical degradation.
What kind of documentation do auditors expect for food-contact brushes?
Typically, a letter of compliance from the brush manufacturer stating that bristles, core, and dyes are FDA-approved for food contact, along with material traceability. Some facilities also keep a log of brush changes, cleaning, and inspection.
Can a stainless steel wire brush be used on a mesh belt that carries food directly?
Generally, no. Wire brushes can shed metal fragments that become foreign material hazards. Use them only in oven zones where the product is fully enclosed or the belt has a scrap layer. Always check with your HACCP team.
What is the difference between a spiral brush and a strip brush for oven bands?
A spiral brush has bristles wound continuously around a core, giving 360° coverage and good self-cleaning action. A strip brush is a linear channel holding bristles, often mounted flat against the belt. Spiral brushes are more common for wide, flat bands.
Do I need a special mounting bracket for an oven band brush?
Not always, but a well-designed bracket allows for easy adjustment of brush pressure, quick removal for cleaning, and compatibility with your belt frame. Many suppliers offer standard brackets; custom ones may be needed for tight spaces.
How do I prevent brush bristles from shedding into food?
Choose brushes with bristles that are mechanically crimped or set, not just glued. Perform regular inspection for loose bristles, and consider using a brush with a detectable filament (metal-detectable) if cross-contamination risk is high.
