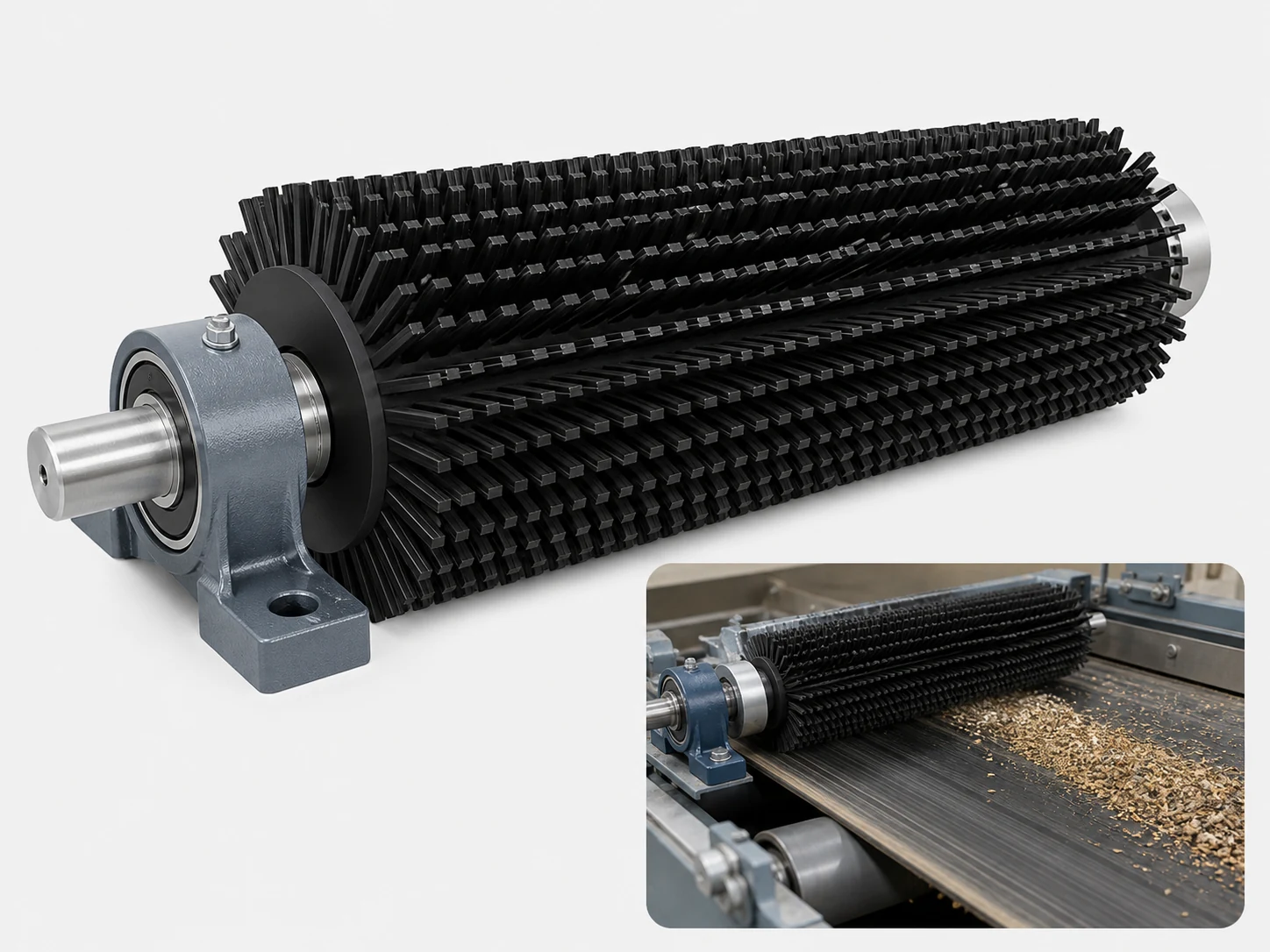

What Is a Rubber Conveyor Belt Brush?
A rubber conveyor belt brush is a rotary or stationary cleaning tool that uses elastomeric bristles to gently sweep debris off a moving belt. Unlike rigid scrapers, rubber bristles conform to surface irregularities, splice bumps, and worn belt covers, providing effective cleaning without damaging the belt. They are commonly installed on the return side of the conveyor, near the head pulley, or inside discharge chutes to control carryback and material buildup.
Common Brush Types and Mounting Positions
For the safety point in this section, the relevant OSHA reference is OSHA — Machine Guarding.
For the safety point in this section, the relevant OSHA reference is OSHA — Control of Hazardous Energy.
For the safety point in this section, the relevant OSHA reference is OSHA — Combustible Dust.
For the environmental or chemical-safety point in this section, the supporting reference is EPA — Particulate Matter Basics.
For brush terminology and construction language, this section references American Brush Manufacturers Association — Brush Lingo.
Conveyor belt brushes can be powered or unpowered. Rotary brushes are driven either by belt friction (a rolling brush in contact with the belt) or by an external motor. Stationary brushes are fixed bars with bristles held against the belt. Typical mounting locations include:
- Head pulley – removes bulk of carryback at the discharge point.
- Return side – cleans the belt after material has been discharged, before the return idlers.
- Inside the chute – prevents material buildup on the chute walls and belt edges.
- Tail pulley area – keeps the tail pulley and belt return side clean.
Bristle Material Comparison
The bristle material is the most critical factor in brush selection. It must be compatible with the residue type, belt surface, and operating environment. The table below compares common bristle materials used in conveyor cleaning.
| Bristle Material | Surface Sensitivity | Dry / Wet Use | Temperature Range | Chemical Resistance | Best For |
|---|---|---|---|---|---|
| Natural Rubber | Very gentle | Dry | -20°C to 80°C | Poor – avoid oils, acids, solvents | Light dust, dry powders on smooth belts |
| Neoprene (CR) | Gentle | Dry / damp | -20°C to 100°C | Moderate – oil, grease, mild acids | Oily or slightly wet residues, outdoor use |
| EPDM Rubber | Gentle | Dry / wet | -30°C to 120°C | Good – acids, alkalis, hot water | Chemical exposure, steam cleaning environments |
| Silicone Rubber | Very gentle | Dry | -40°C to 200°C | Fair – many chemicals, no solvents | High-temperature applications, sticky but non-abrasive residues |
| Nylon (PA) | Moderate | Dry / wet | -30°C to 100°C | Good – oils, dilute acids, alkalis | Abrasive particles, wet cleaning, general duty |
| Polypropylene | Moderate | Dry / wet | -10°C to 90°C | Excellent – most acids, alkalis, solvents | Chemical plants, corrosive environments |
| Abrasive Nylon | Aggressive | Dry | -20°C to 100°C | Good – similar to nylon | Heavy buildup, rust, scale removal |
| Wire (Steel/Brass) | Can damage belt | Dry | High | Good (depends on metal) | Extreme buildup, metal belts; not for rubber belts |
For most rubber conveyor belt applications, natural rubber, neoprene, or EPDM bristles strike a balance between cleaning efficiency and belt protection. Choose the specific rubber compound based on the chemical and thermal demands of the process.
How to Choose the Right Rubber Conveyor Belt Brush
Selecting the correct brush requires matching the bristle characteristics to the operating conditions and cleaning goal. Evaluate these factors:
- Residue type – dry powder, fine dust, sticky paste, oily film, fibrous clumps? Each requires a different bristle stiffness and density.
- Belt surface – smooth or textured cover, presence of mechanical splices, worn areas. Gentle rubber bristles handle splices better than rigid scrapers.
- Line speed – faster belts (>2.5 m/s) may need softer bristles to avoid excessive heat or bounce; slow belts can allow denser bristle patterns.
- Installation space – measure available clearance around the conveyor frame, pulley diameter, and chute opening to avoid interference.
- Cleaning location – at the head pulley, brush orientation and rotation direction matter for residue discharge; on the return side, gravity can assist cleaning.
- Wet or dry operation – if water or chemicals are present, select a rubber that resists swelling and degradation.
- Motorization – a driven brush offers consistent cleaning independent of belt speed and is often preferred for sticky residues or low-tension belts.
What to Confirm Before Ordering
To avoid ordering a brush that does not fit or perform as expected, verify these details before issuing a purchase request:
- Overall brush length and diameter (including bristle tips).
- Core or arbor type: solid shaft, thru-bore, flange mount, keyed shaft, or clamped.
- Arbor size and end configuration.
- Bristle material, diameter, and trim length (distance from core to bristle tip).
- Density or fill pattern (e.g., spiral, solid, staggered).
- Direction of rotation and required speed (if motorized).
- Presence of reversing operations.
- Food-grade certification if required (supported by food-contact documentation rubber).
- Expected cleaning result: is a 90% carryback reduction sufficient, or is near 100% removal needed?
- Sample or drawing availability to test compatibility before final order.
Common Mistakes to Avoid
- Choosing by cost alone – a low-cost brush that wears out quickly or damages the belt leads to higher total cost.
- Ignoring belt splice bumps – too-stiff bristles or excessive pressure at splices can tear belts or damage the brush.
- Using a brush that is too narrow – it may not clean the full belt width, leaving edge buildup that causes mistracking.
- Mounting the brush in the wrong position – e.g., too far from the head pulley allows material to re-adhere to the belt before cleaning.
- Neglecting maintenance access – if the brush cannot be easily inspected, cleaned, or adjusted, performance will degrade.
- Not considering chemical attack – exposure to oils, acids, or solvents can swell rubber bristles, causing them to lose shape and effectiveness.
- Failing to match bristle stiffness to the residue – too soft and the brush cannot dislodge sticky material; too stiff and it may glaze the belt surface.
When a Rubber Brush Alone Is Not Enough
A rubber conveyor belt brush excels at gentle, continuous cleaning, but it has limits. Consider adding auxiliary systems when:
- Wet, sticky pastes – combination with a water spray or wash box can soften the residue, allowing the brush to sweep it away.
- Fine, lightweight dust – the brush may aerosolize dust; add a vacuum extraction hood to capture airborne particles.
- Oily films – a mechanical scraper ahead of the brush can remove the bulk, and the brush polishes the belt afterward.
- Hygienic or CIP requirements – food or pharmaceutical conveyors may need clean-in-place sprays or ultrasonic cleaning, with the brush acting only as a pre-cleaner.
- Extreme carryback – an air knife or positive belt tracking system may complement the brush for full control.
Final Takeaway
Choosing a rubber conveyor belt brush starts with understanding your specific residue and belt surface. Map the bristle material to the chemical and thermal environment, then confirm all mechanical dimensions. Verify that the selected brush can achieve the required cleaning result without damaging the belt or creating secondary issues. When in doubt, involve an application engineer or test a sample brush in your actual process.
Frequently Asked Questions
Can I use a rubber brush on a food-grade conveyor?
Yes, if the rubber compound is supported by food-contact documentation and the brush core is stainless steel. Specify food-grade EPDM or silicone for direct food contact applications.
What is the difference between a rotary brush and a stationary brush?
A rotary brush spins (driven by a motor or belt contact) and actively sweeps the surface. A stationary brush is fixed and relies on belt movement for cleaning. Rotary brushes are more effective for sticky or heavy residues; stationary brushes are simpler and suitable for light dust.
How often should I replace the brush?
Inspect bristle wear frequent. Replace the brush when bristle length is reduced by 30–50% or when cleaning performance noticeably drops. Harsh conditions or abrasive residues shorten life.
Does brush speed matter?
For motorized rotary brushes, a surface speed slightly faster than the belt is typical to optimize cleaning without excessive bristle wear. Exact speed depends on residue type and bristle stiffness.
Can I use a rubber brush with water or chemicals?
Yes, if the rubber compound is rated for wet service (neoprene, EPDM). Natural rubber swells in water and should be avoided in wet environments unless specifically treated.
How do I mount a conveyor belt brush?
Mounting depends on the brush design: a thru-shaft brush is supported by pillow-block bearings at each end, while a flanged brush bolts directly to a drive unit or bracket. Ensure the mounting is rigid and that the brush is parallel to the belt surface.
Will a rubber brush wear out my belt?
When properly selected and set up, rubber brushes are gentle and designed to minimize belt wear. Excessive pressure, mismatched bristle stiffness, or misalignment can accelerate belt cover wear.
What is the best brush for a high-speed conveyor belt?
For belts running above 2.5 m/s, use softer rubber bristles (neoprene or EPDM) with less aggressive trimming to avoid belt vibration and bristle bounce. A motorized brush synchronized with belt speed may be necessary.
