What Is a PCB Brush?
Before ordering pCB Brush for PCB Dust Removal, define the working condition clearly enough that a supplier can build and verify the brush against the job. The most useful details are ESD control, slot access, particle type, contact pressure, and component sensitivity. Missing one of these points often leads to a brush that looks correct on paper but fails during installation or daily use.
A pcb brush is a small, often handheld or machine-mountable brush used to mechanically dislodge dry particulates from the surface of a printed circuit board. Unlike general-purpose cleaning brushes, a proper pcb brush must balance effective cleaning with minimal risk of static discharge, surface scratching, or chemical contamination. It is commonly used at inline cleaning stations, benchtop rework areas, and inside automated PCB handling equipment.
Common Types and Construction Options for PCB Brushes
For static-control claims, this article uses EOS/ESD Association — ESD Fundamentals as the ESD reference.
For static-control claims, this article uses EOS/ESD Association — Principles of ESD Control as the ESD reference.
For the safety point in this section, the relevant OSHA reference is OSHA — Combustible Dust.
For the environmental or chemical-safety point in this section, the supporting reference is EPA — Particulate Matter Basics.
For brush terminology and construction language, this section references American Brush Manufacturers Association — Brush Lingo.
Before requesting a quote, understand the basic building blocks that define a custom pcb brush. The most critical decisions revolve around filament material, stiffness, total diameter, handle or core type, and how the brush will be mounted or held.
- Filament material: Determines anti-static properties, chemical resistance, and abrasiveness. Options include natural animal hair, nylon, anti-static nylon, conductive fibers, and blended filaments.
- Fill density and trim length: Dense, short bristles provide firmer scrubbing; longer, softer bristles are gentler on delicate traces.
- Brush shape: Common profiles include round, cup, wheel, strip, and custom-contoured brushes that match specific board outlines or component clearance zones.
- Core or handle: Wood, plastic, aluminum, or molded hub—each affects weight, chemical resistance, and machine compatibility.
- Mounting style: Hand-held ferrule, threaded shaft, keyway hub, or snap-in carrier for automated roller systems.
Key Selection Factors for Custom PCB Brush Orders
Turning a cleaning requirement into a specification means answering practical questions about your production environment. Here is what you should determine before contacting a brush manufacturer.
Residue Type
Identify the typical dust: fine airborne powder, fiberglass particles from board routing, solder balls, or dried flux residues. Dust size and composition influence filament diameter and material choice. For example, abrasive fiberglass dust requires a durable filament like nylon, while fine conductive dust demands a static-dissipative brush.
Surface Sensitivity
Equipment Interface
Will the brush be attached to a rotating spindle, a linear actuator, a robotic arm, or a handheld tool? Define the mounting bore, keyway dimensions, or ferrule size. A pcb brush integrated into a dust cleaning brush roller assembly requires a precise hub diameter and balance tolerance.
Wet or Chemical Exposure
If your cleaning process uses isopropyl alcohol (IPA), deionized water, or mild solvents, verify that the filament material and core/handle adhesive are chemically compatible. Natural bristles can swell and lose stiffness; certain plastics may degrade.
Hygiene and Particle Shedding
In cleanroom environments, the brush itself can become a contamination source. Specify low-linting materials, trimmed and washed filaments, and a sealed core to minimize particulate generation.
Maintenance Frequency and Life Expectancy
Estimate the cleaning cycles per shift and the acceptable replacement interval. A pcb brush that wears out too quickly can increase downtime. Ask for a projected lifecycle under your operating speed and pressure.
Custom Size Requirements
Provide exact dimensions: overall diameter, bristle portion length, total length, and any step or flange dimensions. Include a drawing with tolerances, as even small deviations can cause interference with nearby machine parts.
Comparison Table of Common Filament Materials
Use the table below to compare materials on the properties that matter most for pcb dust removal. These descriptions are general; your supplier can provide detailed datasheets for specific resin grades.
| Filament Material | Static Control | Stiffness | Absorption | Best For | Limitations |
|---|---|---|---|---|---|
| Natural Horsehair | None (insulative) | Soft to medium | Low moisture absorption | Gentle dusting of bare boards or coated surfaces | Not ESD-safe; can generate static charge |
| Anti-static Nylon (carbon-loaded) | Surface resistivity 10⁶–10⁹ Ω | Medium to stiff | Low | General-purpose PCB dust removal in ESD-sensitive areas | Stiffness may scratch very fine traces; verify with a test sample |
| Conductive Fiber (e.g., stainless steel fiber blend) | Surface resistivity <10⁶ Ω | Stiff to very stiff | None | Removing stubborn, baked-on dust; equipotential bonding | Can damage delicate boards; risk of shorting if fibers break off |
| Goat Hair | None (insulative) | Very soft | Low | Cleaning conformally coated boards or optical sensor areas | Limited durability; not for use with solvents |
| Static-Dissipative Polypropylene | Surface resistivity 10⁸–10¹¹ Ω | Soft | Negligible | Cleanrooms, low-linting applications | Lower abrasion resistance than nylon |
How to Specify a Custom PCB Brush: The Buyer’s RFQ Checklist
When you are ready to prepare a technical quotation request, include the following details to receive accurate pricing and a production-ready design. This checklist also serves as a verification document before approving a sample.
- Dimensional drawing: Overall length, bristle diameter, trim length, core/hub diameter, and mounting details with tolerances.
- Filament specification: Material type, diameter (e.g., 0.15 mm), color, and any static-dissipative or conductive target range.
- Fill density and pattern: Mention if you need a specific bristle packing style (e.g., helical wound, punched tufted, or straight set).
- Core/handle material: State the material and any chemical resistance or cleanroom compatibility requirement.
- Mounting method: Threaded stud, set-screw hub, quick-release shank, or integration into an existing roller shaft.
- Operating conditions: Maximum RPM, cleaning pressure, chemical exposure, temperature range, and whether the brush contacts static-sensitive components.
- Target dust type: Particle size, composition, and whether it is dry or slightly tacky from environmental humidity.
- Sample and testing expectations: Request a physical sample or a pilot run to validate fit, cleaning efficiency, and ESD performance.
- Order quantity and packaging: Annual volumes help the supplier optimize cost, but avoid sharing sensitive pricing strategies. Ask about protective packaging for transport.

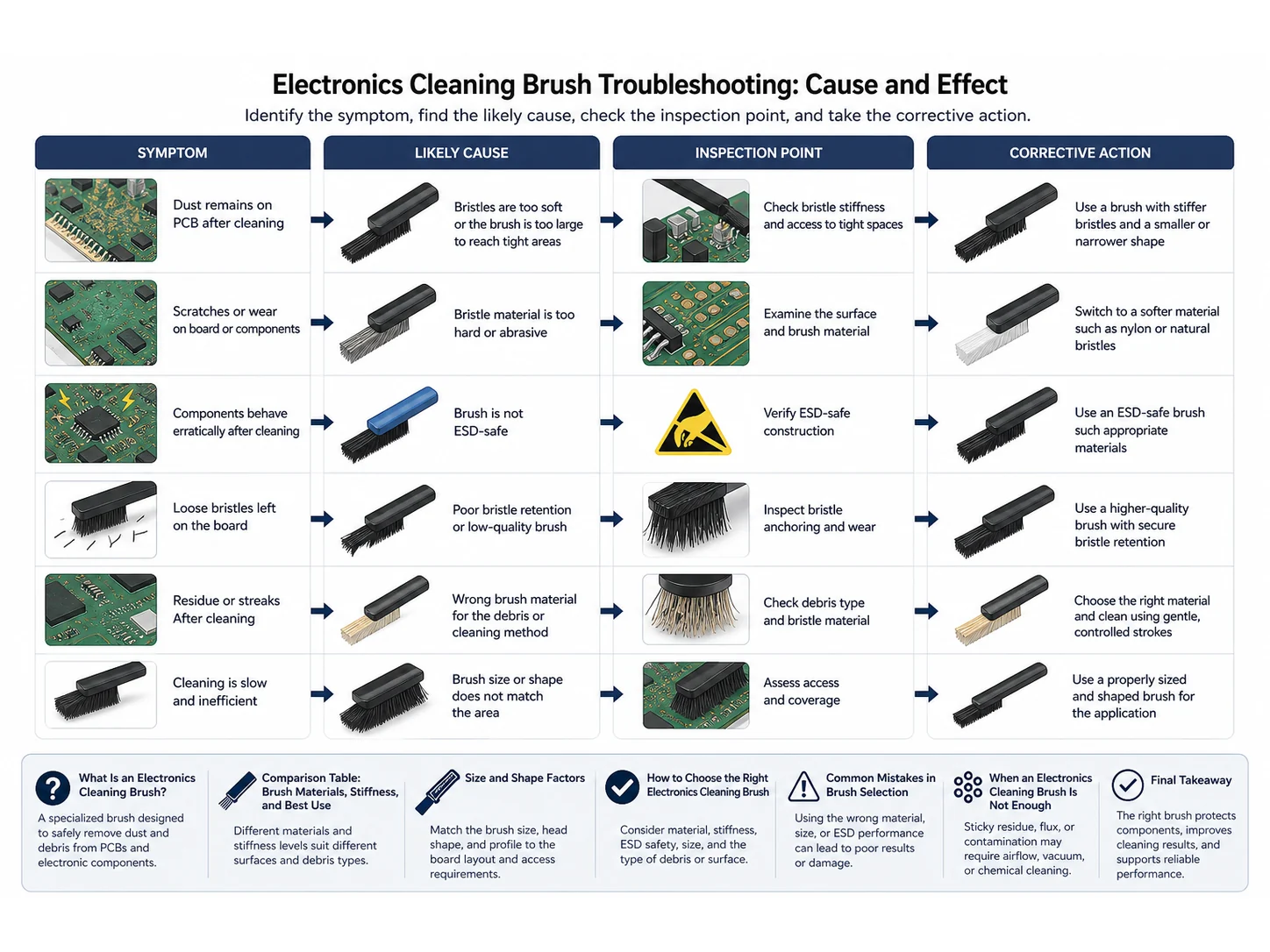

Common Mistakes When Ordering a Custom PCB Brush
Avoid these typical missteps that derail pcb brush projects.
- Ignoring ESD safety: Using an insulative bristle on an EPA (ESD Protected Area) bench can cause latent component damage. Always match brush resistance to your facility’s static control program.
- Selecting the wrong diameter: A brush that is too large can collide with nearby machine guards; too small may not cover the board width, leaving uncleaned tracks.
- Overlooking chemical compatibility: Even occasional wipe-downs with IPA can degrade an unsuitable core or adhesive over time. Request chemical immersion test data if available.
- Focusing only on cost drivers per piece: A cheaper brush that sheds fibers or wears out rapidly can increase defect rates and downtime, eroding initial savings.
- Skipping the sample stage: Production-scale orders without a verified sample can lead to entire batches that fail on arrival. Insist on a pre-production sample, even if it extends lead time slightly.
- Not sharing the full machine interface: Providing only the shaft diameter without the keyway depth, drive torque, or axial float requirement can cause improper fit.
When a Standard PCB Brush Is Not Enough (or the Wrong Choice)
Mechanical brushing is not always the ideal solution. Recognizing its limits can save you from a poorly performing cleaning station.
- Extremely high cleanliness requirements: Applications like wafer handling or implantable medical electronics may need ultrasonic cleaning, CO₂ snow cleaning, or plasma treatment instead of or in addition to brushing.
- Removal of wet or sticky contaminants: A dry pcb brush cannot effectively remove flux pastes, greasy films, or cured adhesive residues. Solvent wiping or a wash process is required.
- Very large board areas with short cycle times: When throughput demands exceed what a single brush can cover, consider a vacuum-assisted brush roller system or a multi-brush array rather than a single custom brush.
- Risk of fine wire damage: Ultra-fine pitch components or wire-bonded devices may not tolerate any mechanical contact. Non-contact methods such as ionized air blowing are safer alternatives.
- Supplier drawing review reveals a better solution: A reputable brush manufacturer may suggest a stock design or a small modification to an existing brush series that achieves the same result at a lower cost and faster lead time. Be open to their recommendations.
Final Takeaway: Verifying Your Custom PCB Brush Order
Before signing off on production, revisit the checklist: Can the brush handle your dust type without scratching? Is the electrical resistance within your ESD-safe window? Have you confirmed chemical compatibility and mounting fit? A well-specified pcb brush is not just a cleaning tool—it is a process stability component. Investing the time to define these parameters up front reduces quality escapes and keeps your PCB manufacturing line running smoothly.
Frequently Asked Questions
What does “ESD-safe” mean for a pcb brush?
An ESD-safe pcb brush has a controlled electrical resistance (typically between 10⁶ and 10⁹ ohms) that allows static charges to dissipate slowly rather than building up and discharging suddenly. This prevents damage to sensitive electronic components. Always ask the supplier for a surface resistivity test report.
Can I clean my pcb brush with isopropyl alcohol?
It depends on the brush material. Anti-static nylon and polypropylene usually tolerate IPA well, but natural animal hair can become brittle or lose shape. The core material and epoxy adhesive must also be resistant. Check with the manufacturer before introducing any solvent.
How often should a pcb brush be replaced?
Replacement frequency depends on usage cycles, pressure, and dust abrasiveness. Signs that a brush needs replacement include bristle deformation, uneven wear, shedding, or static control drift. Many users replace brushes every 3–6 months in high-volume lines, but your supplier can give a lifecycle estimate based on your parameters.
What is the minimum order quantity for custom pcb brushes?
Custom brush orders typically require a minimum production run due to tooling and setup time, but quantities vary widely by manufacturer. When requesting a quote, ask about small-batch pilot runs or sample programs that allow you to validate the design before committing to full volumes.
Can I get a sample before placing a large order?
Yes, most reputable brush manufacturers provide pre-production samples for evaluation. Expect a sample charge and longer lead time, but it is a critical step to verify fit, cleaning performance, and ESD properties before investing in production tooling.
How do I know if a stiffer bristle is better for my application?
Stiffer bristles remove stubborn particles more aggressively but increase the risk of scratching delicate surfaces. If your dust is abrasive or the board has sensitive coatings, start with a softer filament and test cleaning effectiveness. You can always move to a stiffer grade if the soft brush does not work, but scratches are permanent.
What is the difference between anti-static and conductive brushes?
Anti-static brushes have a surface resistivity in the dissipative range (10⁶–10⁹ Ω) and prevent charge buildup. Conductive brushes have much lower resistance (<10⁶ Ω) and can conduct charges quickly, which is useful for grounding but can be dangerous if the brush contacts live circuits. Most PCB dust removal tasks require only anti-static properties.
Can I use the same pcb brush for bare boards and assembled boards?
It is generally not recommended. Assembled boards have components of varying heights and can trap dust unevenly, requiring a brush with a specific filament length and density. Using the same brush for both can lead to incomplete cleaning or component damage. Consult your supplier about a two-brush system or a segmented brush roller design.
