What Is a Terminal Cleaning Brush?
A terminal cleaning brush is a small, precision brush engineered to clean the contact surfaces inside screw-type, spring-clamp, barrier, or pluggable terminal blocks. Its job is to restore low-resistance metal-to-metal contact by removing anything that interferes with conduction—without scratching the plating, bending the terminal, or leaving behind lint.
For static-control claims, this article uses EOS/ESD Association — ESD Fundamentals as the ESD reference.
For static-control claims, this article uses EOS/ESD Association — Principles of ESD Control as the ESD reference.
For brush terminology and construction language, this section references American Brush Manufacturers Association — Brush Lingo.
The real problem behind terminal block maintenance is not just “dirt.” Even a few microns of oxide film, dried flux, or metallic dust can raise contact resistance enough to cause signal noise, intermittent faults, or thermal runaway in higher-current circuits. A correctly specified brush addresses the root cause: physical removal of the resistive layer while preserving the geometry and surface finish of the terminal.
Common Options for Custom Terminal Cleaning Brushes
Before you can fill out a spec sheet, you need to understand the building blocks of a terminal cleaning brush. Most custom requests center around five design variables:
- Bristle material – brass, phosphor bronze, stainless steel, abrasive nylon, horsehair, or specialty fibers.
- Stiffness/fill density – soft, medium, firm, or extra-stiff trim lengths and fill patterns.
- Brush diameter and working length – the overall OD and the reach into the terminal cavity.
- Handle or core – plastic stem, twisted wire, flexible shaft, or custom-molded core.
- Mounting interface – manual finger grip, machine chuck, robotic tool holder, or quick-change stem.
Key Specifications to Compare
| Specification | Common Choices | Why It Matters for Terminal Blocks |
|---|---|---|
| Bristle material | Brass, stainless steel, abrasive nylon (aluminum oxide or silicon carbide loaded), horsehair | Determines cutting action on oxides, risk of scratching soft plating (tin, gold), and generation of conductive particles. Brass is conductive and relatively gentle; stainless steel is stiffer for heavy oxidation; abrasive nylon removes stubborn residues aggressively but can leave micro-scratches. |
| Stiffness & fill density | Soft (low wire count), medium, high-density stiff trim | Affects how much pressure reaches the contact surface and how well the brush conforms to irregular cavities. Too stiff can deform spring contacts; too soft may not remove baked-on flux. |
| Diameter & working length | 1.5–8 mm OD, 15–100 mm reach | Must match terminal opening diameter and depth. Undersize brushes miss the contact zone; oversized brushes can bind or damage sidewalls. |
| Handle / core | Molded plastic, twisted galvanized wire, flexible nylon core, aluminum tube | Transfers torque from tool to bristle. Flexible shanks help reach offset terminals; rigid shanks suit robotic positioning. Must also resist any cleaning chemicals used in the process. |
| Mounting type | Hex shank, round shank, threaded tail, quick-release, custom chuck | Ensures the brush can be held securely in the intended cleaning tool—manual driver, power screwdriver, automated rotating spindle, or static holder. |
How to Choose a Custom Terminal Cleaning Brush
Move from problem to specification by answering these questions in order:
- Residue type. Is it light dust, sticky flux, or hard black oxide? Dust can often be lifted with soft horsehair or low-fill nylon. Baked-on flux needs abrasive nylon or brass. Oxide layers require brass or stainless bristles to cut through.
- Surface sensitivity. What plating is on the terminal? Gold flash or tin-lead coatings are soft—if in doubt, choose brass or nylon over stainless. Silver-plated contacts may tarnish but still require gentle cleaning to avoid wearing through the plating.
- Equipment interface. Will the brush be held by an operator, a spindle, or a robot? Handheld brushes need ergonomic grips; spindle-driven brushes need accurate roundness and concentricity; robot brushes need a repeatable tool holder and compliance if position tolerance is loose.
- Wet or chemical exposure. Will the brush be used with solvents, contact cleaners, or alcohol? Check that the adhesive bonding the bristles in place and the handle material are compatible with the chemicals. Nylon loses stiffness when wet; steel can rust if the solvent is water-based.
- Hygiene expectations. Are you cleaning terminals in a cleanroom or for visual inspection? Soft horsehair or anti-static nylon may be preferred to avoid particle generation. In vacuum environments, materials must not outgas.
- Maintenance frequency. Is this a one-time reclaim job or a daily production step? High-cycle production often favors metal bristles for wear life; low-volume rework may allow softer, lower-cost fibers.
- Custom size requirements. If the terminal block has a non-circular cavity, you may need a formed brush or a special tip shape. Provide accurate measurements—preferably a CAD drawing or a sample block—so the brush maker can match the geometry.
Setup and Usage Factors That Affect Brush Design
Even the best-chosen brush fails if the operating environment isn’t considered. Pay attention to:
- Rotation speed. Power-driven brushes need a safe RPM rating; too fast and bristles may flare, lose their shape, or generate heat that can soften plastic housings.
- ESD requirements. Electronics assembly often demands electrostatic-discharge-safe handles and bristles. Conductive brush materials may not be sufficient if the handle is insulating. Specify full ESD-safe construction if required.
- Access constraints. If the terminal is buried in a dense DIN-rail block, the brush shank must be long and thin enough to reach the target without forcing adjacent wires aside.
- Cleaning protocol. A brush meant for dry wiping behaves differently under vacuum extraction or in an ultrasonic bath. Verify that the bristle retention method (crimped, epoxied, or fused) stays intact under the intended conditions.

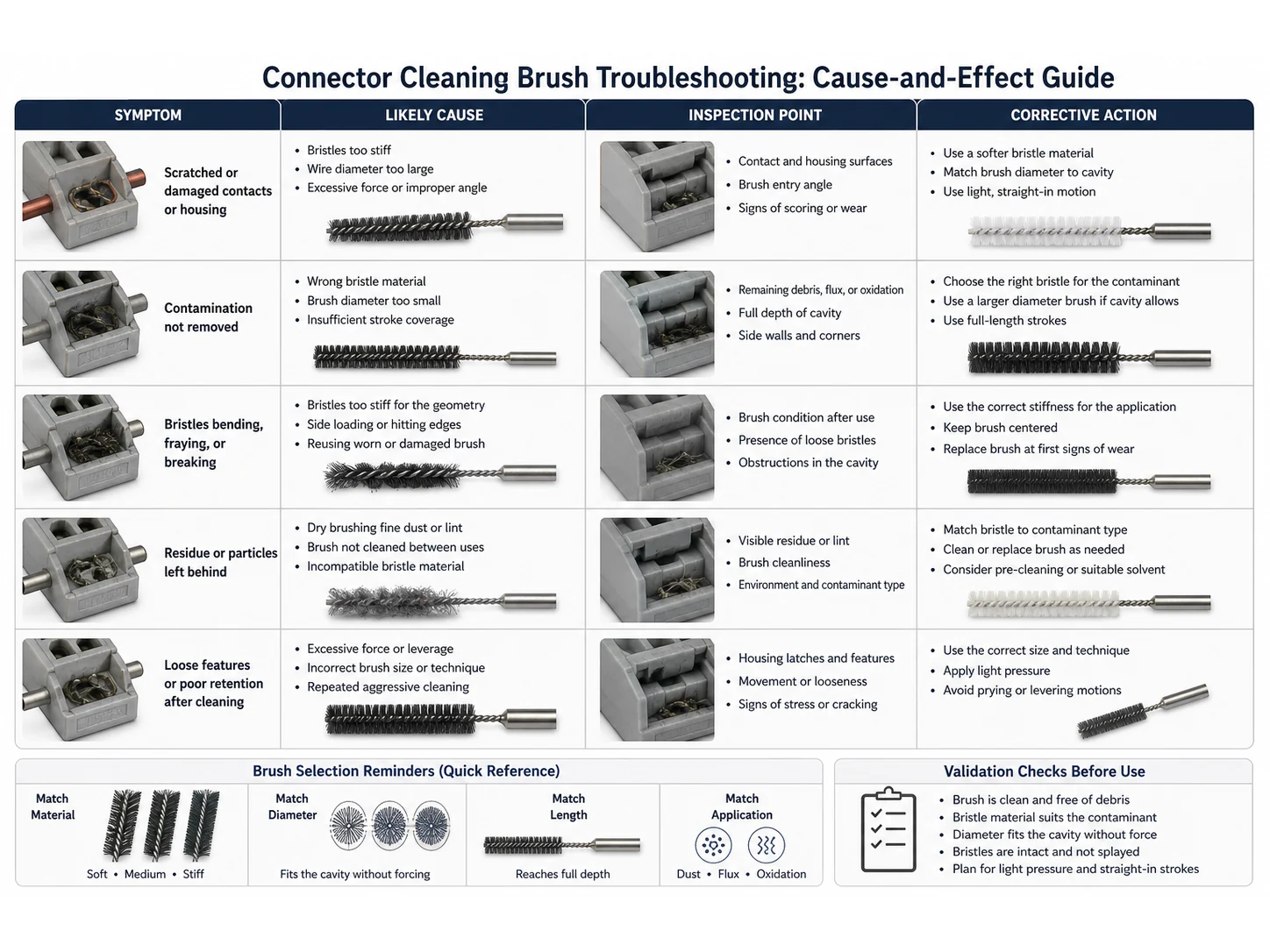

Common Mistakes Buyers Make When Ordering Custom Terminal Brushes
- Skipping a sample test. Photographs and phone conversations do not replace a trial fit. Always request a handful of prototype brushes—or at least a drawing review—before committing to production quantities. A 0.2 mm diameter error can make the brush useless.
- Specifying bristle material by name alone. “Brass wire” can mean different alloys, wire diameters, and hardness levels. Ask for the specific wire grade (e.g., 260 cartridge brass, 0.10 mm wire diameter) to get repeatable behavior.
- Using too aggressive a brush. A stainless steel brush that makes short work of oxide on a power lug can destroy thin gold plating on an adjacent signal terminal. Match aggressiveness to the most sensitive contact in the block.
- Ignoring handle ergonomics for hand tools. A thin, smooth plastic stem becomes impossible to grip after a few minutes of repetitive work. Specify a non-slip handle shape or overmold if the operator will use it for extended periods.
- Forgetting to specify mounting tolerances. A round shank described as “3 mm” can arrive as +0.0/−0.05 mm from one supplier and +0.1 mm from another. A loose fit in a rotary tool causes runout, uneven wear, and inconsistent cleaning. State the tolerance you require.
- Overlooking chemical compatibility. Even a short exposure to aggressive flux removers can swell the brush core, dissolve adhesives, or corrode the wire. Request compatibility data for the specific cleaning agents you use.
When a Custom Terminal Cleaning Brush Is Not Enough
A custom brush can solve many contamination problems, but it has limits. Recognize when you need a different approach or supplementary cleaning step:
- Deep pitting and intergranular corrosion. If oxide has formed pits, a brush cannot restore the original surface. The terminal block may need replacement or re-passivation, and cleaning attempts may only mask a progressive failure.
- Inaccessible backside contacts. Some spring clamp terminals require access from both sides for a complete clean. A single-ended brush may push debris toward the board edge instead of removing it. In these cases, consider a double-ended brush or a different cleaning method like ultrasonic agitation.
- Contamination that requires validated cleanliness. In aerospace, medical, or failure-analysis labs, cleaning is often part of a documented process. A brush alone cannot provide the traceability required; you may need to integrate it with a prescribed chemical treatment, a defined stroke count, and post-cleaning inspection.
- Static-sensitive assemblies. Even an ESD-safe brush can generate a minute charge when rubbing against plastic terminal housings. For ultra-sensitive CMOS circuits, add ionization or a static-dissipative mat to the cleaning station.
- Conductive particle redistribution. If metallic dust is the main contaminant, a dry brush may simply move it to a different part of the block. Use a vacuum brush or follow up with a lint-free wipe and compressed air to collect the debris.
Final Takeaway: Your Pre‑Order Verification Checklist
Before you send the purchase order, walk through this checklist to make sure your custom terminal cleaning brush will perform as intended:
- Contamination identified: Dust, oxide, flux, or mixed residue? Decision on bristle material made.
- Terminal measurements verified: Cavity ID, depth, and any obstructions recorded. Sample block or drawing shared with supplier.
- Plating sensitivity confirmed: Gold, tin, silver—brush aggressiveness matched to the softest surface.
- Handle and mounting specified: Manual grip or machine chuck? Dimensions, tolerances, and any overmold requirements documented.
- Chemical exposure plan: List of cleaning agents tested for material compatibility.
- ESD and cleanliness requirements: ESD-safe or non-shedding construction specified if needed.
- Trial samples requested: Prototype brushes or sealed drawings approved before production run.
- Validation method ready: How will cleaning effectiveness be checked? Contact-resistance measurement, visual inspection, or functional test defined.
Frequently Asked Questions
Can I use a battery terminal cleaning brush on small terminal blocks?
Battery terminal brushes are typically much larger and stiffer, designed for heavy lugs. Using one on a delicate 3.5 mm pitch terminal block can bend the contact, damage the housing, or leave deep scratches. For electronics terminal blocks, choose a brush with dimensions and stiffness specifically matched to the small cavity.
What bristle material is safest for gold-plated contacts?
Soft brass (e.g., 0.06–0.10 mm wire) or fine horsehair are gentle enough for gold flash without abrading through the plating. Abrasive nylon and stainless steel should be avoided unless you have confirmed through testing that the plating thickness and workload can tolerate them.
How do I measure the diameter of the brush I need?
Measure the narrowest opening in the terminal’s cleaning path, not just the wire entry hole. The brush OD should be 0.2–0.5 mm smaller than that minimum clearance to allow bristle flex and prevent binding. Provide the supplier with a drawing or a sample terminal block for the most accurate fit.
Do I need a different brush if I clean with a solvent like isopropyl alcohol?
Yes. Nylon bristles soften and lose resilience when wet; certain epoxies used to set bristles may dissolve. If solvents are part of your process, specify a brush built with solvent-resistant materials such as brass, stainless steel, or chemically stable filaments like PBT, and verify the handle and adhesive compatibility with the supplier.
Can I get a single prototype brush before ordering a large quantity?
Reputable custom brush manufacturers will produce a small number of samples or first-article units for evaluation. Expect to pay for the engineering time and tooling, but this step prevents costly mistakes. Always build prototype validation into your project schedule.
Does a terminal cleaning brush need to be ESD-safe?
It depends on your assembly’s sensitivity. If you work with MOSFETs, laser diodes, or similar devices, an ESD-safe brush prevents latent damage. Specify conductive bristles (carbon-filled or brass) and a conductive handle with a resistance to ground of 10⁴ to 10⁸ ohms. Confirm the full assembly, including the ferrule, meets your ESD control plan.
How stiff should the brush be for heavy oxidation without scratching tin-plated terminals?
Start with medium-stiff brass (around 0.10–0.12 mm wire), which cuts oxidation effectively yet is softer than tin. If the oxide layer resists, move to a slightly stiffer fill or a stainless steel wire with a reduced trim length—but always test on a sample first to ensure the brushing action does not remove the tin plating.
Can one custom brush design clean all terminal block sizes in a panel?
Rarely. A brush that fits a 5 mm power terminal will not enter a 2.5 mm signal terminal. A brush thin enough for the small terminal may lack the diameter to clean a larger bore effectively. Evaluate whether a family of brushes or a stepped-diameter brush could reduce cost, but do not compromise on fit—partial cleaning can be worse than none.
