What Is a Micro Tube Brush?

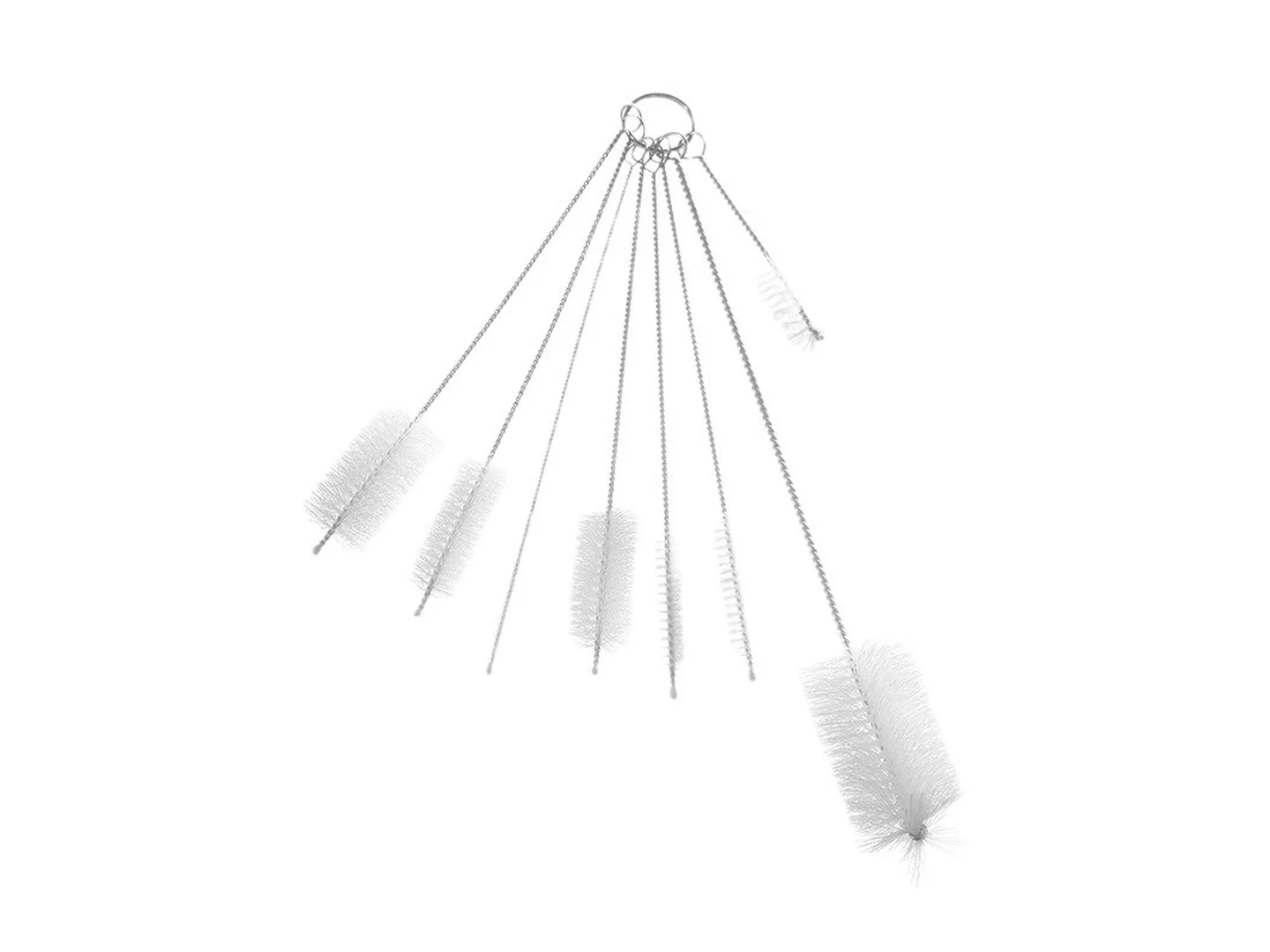

A micro tube brush is a small-diameter cleaning tool with bristles secured around a flexible core or twisted wire stem. Technicians push or rotate it through tubes to remove scale, biofilm, process residue, and light corrosion. In production environments, these brushes work inside tubes ranging from a few millimeters to about two inches in diameter, and they face constant friction, chemical exposure, and mechanical stress.
For machine guarding and moving-part safety context, this section references OSHA — Machine Guarding.
For lockout/tagout and maintenance isolation context, this section references OSHA — 1910.147 Control of Hazardous Energy.
For engineering drawing, dimensions, tolerance, thread, fit, and RFQ specification context, this section references ASME — Y14.5 Dimensioning and Tolerancing.
For brush construction terminology, bristle/fill/backing/stem terms, this section references American Brush Manufacturers Association — Brush Lingo.
Common Types of Micro Tube Brushes
Bristle material and core construction decide where a brush works well—and how it wears. Know the basic types before you inspect.
- Nylon or polypropylene bristle: Good for soft residues, plastic or thin‑walled metal tubes; gentle on tube ID surfaces.
- Stainless steel wire bristle: Removes hard scale, rust, and baked‑on deposits in metal tubes; aggressive.
- Brass or bronze wire bristle: Softer than steel; reduces spark risk and works on non‑ferrous tubes.
- Carbon steel wire bristle: Heavy rust and scale removal in ferrous tubes; leaves minor surface scuffing.
- Abrasive‑impregnated nylon: Contains silicon carbide or aluminum oxide; for polishing and light deburring.
- Spiral‑wound style: Bristles wrap around a single or double stem; common for manual and machine‑driven cleaning.
Inspection Checklist for Micro Tube Brushes
Pull the brush from service and check these points each shift or between batches—whichever fits your production flow. Use the table below as a quick reference.
| Inspection Point | What to Look For | Recommended Action |
|---|---|---|
| Bristle condition | Fraying, matting, flattening, or missing bristles | Clean or re‑trim if minor; replace if bristle loss exceeds roughly 15‑20% of total fill |
| Core or holder damage | Kinks, bends, cracks, corrosion, or weakening at the connection point | If kinked or cracked, replace immediately; slight surface rust on wire core may be cleaned |
| Uneven wear pattern | One side wears faster, bristle length differs around the circumference | Check machine alignment and feed pressure; replace brush if pattern cannot be corrected |
| Shedding (bristle loss) | Loose bristles found in the tube or on the brush after cleaning | Stop using; switch to a brush with compatible bristle material and tube chemistry |
| Clogging | Debris packed between bristles, hard residue that does not rinse out | Soak and rinse thoroughly; replace if clogging cannot be removed without damaging bristles |
| Cleaning result changes | Residual film, uneven cleaning, increased pressure drop through the tube | Replace brush if results do not return to acceptable level after cleaning |
How to Decide: Cleaning, Re‑trimming, Adjustment, or Replacement?
A simple, condition‑based decision path avoids throwing away usable brushes and stops worn brushes early.
- Clean the brush first if bristles are dirty, slightly matted, or lightly clogged, and the core is sound. Use warm water, mild detergent, or a compatible solvent that won’t attack the bristle or core material. After cleaning, re‑inspect before putting back in service.
- Re‑trim the bristle ends when the tips are deformed or mushroomed but overall bristle length is still adequate, and the brush material is not degraded. Trimming restores a square end face for better contact. This works best on nylon and soft wire brushes. Do not re‑trim abrasive‑impregnated bristles or brushes with significant core wear.
- Adjust machine settings or operator technique when uneven wear is the main problem. Check for tube misalignment, off‑center feed, wrong rotation speed, or too much pressure. A small alignment fix can double brush life without changing the brush itself.
- Replace the brush when any inspection point shows a safety or performance risk: kinked core, excessive bristle loss, persistent shedding, cleaning results that fail the quality check even after cleaning, or uneven wear that cannot be corrected by adjustment.
Do not assign fixed lifetime hours. Two identical brushes can wear very differently depending on tube material, residue type, chemical exposure, and operator handling.
Operating Factors That Affect Brush Life
Micro tube brushes work in a narrow tolerance zone. These factors directly influence wear rate and cleaning effectiveness.
- Operating pressure and speed: Higher feed force and RPM can clean faster but dramatically increase bristle fatigue and core stress. Start at the low end of the machine’s recommended range and increase only if necessary.
- Cleaning chemistry: Acids, caustics, and strong detergents can weaken nylon, corrode wire cores, or cause bristle embrittlement. Match the brush material to the cleaning solution. If you change the cleaning chemical, re‑evaluate brush compatibility.
- Storage conditions: Store brushes dry, away from direct sunlight, chemicals, and humidity. A wet brush stored in a sealed container can develop corrosion on the wire core overnight, leading to premature breakage.
- Tube condition: Rough or pitted tube IDs accelerate abrasive wear on bristles. If tube ID condition cannot be improved, consider a harder bristle material or expect more frequent brush replacement.
Common Maintenance Mistakes
- Using the wrong bristle material for the tube: A stainless steel brush in a copper or plastic tube can cause serious damage. Always match bristle hardness to tube material and the residue you need to remove.
- Applying too much force: Pushing harder to “fix” poor cleaning results only snaps cores, flattens bristles, and may score the tube ID.
- Ignoring bristle shedding: Loose bristles left inside a tube can migrate downstream and block valves, filters, or nozzles—creating bigger problems than a dirty tube.
- Storing brushes dirty or wet: Residual chemicals and moisture corrode metal cores and degrade bristles between uses.
- Skipping alignment checks: A brush that wobbles or enters the tube at an angle wears unevenly and may miss part of the tube ID. Align the guide system regularly.
- Using one brush for incompatible chemistries: A brush used in an acidic cleaning cycle may carry residuals that harm alkaline‑sensitive tube surfaces on the next run. Dedicate brushes by process line or clean thoroughly between changes.
When Routine Brush Maintenance Isn’t Enough
Sometimes, no amount of inspection or cleaning will fix abnormally fast wear or poor cleaning results. That’s the signal to look beyond the brush itself.
If brushes consistently fail after a short run, review:
- Tube material and ID condition: Is the tube surface rougher than expected? A light hone or passivation step may be needed before mechanical cleaning.
- Residue type: Has the process changed? A new deposit may require a different bristle material, a two‑step cleaning process, or a chemical pre‑soak.
- Machine settings: Are the brush rotating speed and feed force within the brush manufacturer’s typical range? An older machine may have drifted out of spec.
- Brush quality or design: If the procurement source changed, the brush dimensions, fill density, or core construction may not match the original specification. Verify the brush against the drawing or sample.
- Process design: In extreme cases, the cleaning method itself may need to change—for example, moving from mechanical brushing to high‑pressure water or chemical circulation for certain tube sections.
Stop and involve process engineering when brush life is less than half of what was historically normal, or when tube damage is observed after cleaning.
Final Takeaway
A micro tube brush is a consumable tool, not a forever part. But with a simple inspection routine, correct cleaning, and honest wear assessment, you’ll catch problems before they hurt tube integrity or production throughput. Use the checklist. Replace based on condition, not a calendar. And when something changes—new residue, faster wear, unusual bristle loss—pause the brush and review the process, not just the tool.
Frequently Asked Questions
How often should I inspect a micro tube brush?
Inspect at least once per shift or at the end of each cleaning batch. In high‑volume production, check after every tube set to catch early shedding or core damage.
Can I straighten a kinked wire core?
No. A kink creates a weak point that will likely snap during rotation. Bending it back does not restore the metal’s strength. Replace the brush immediately.
What’s the best way to clean a brush after use?
Rinse thoroughly with warm water immediately after removal. If residue has dried, soak in mild detergent or a compatible solvent, then rinse. Avoid wire brushes or scrapers that can damage bristles. Air‑dry before storing.
Does bristle color indicate wear?
Color change can signal chemical attack, heat exposure, or residue buildup. For example, nylon bristles may turn white or brittle after contact with strong oxidizers. Compare color and stiffness to a new brush as one piece of condition data.
How do I know if I’m using the right brush material for my tubes?
Start with the tube material: use softer bristle (nylon, brass) for softer tubes (copper, plastic, thin‑wall stainless); use harder bristle (stainless or carbon steel) only on hard metal tubes with tough deposits. When in doubt, test on a scrap tube section first.
Can I use the same brush for different tube materials or process lines?
It’s risky. Cross‑contamination of residues and chemical carryover can harm tubes or product. Dedicate brushes by line or, if sharing, implement a strict cleaning and verification protocol between uses.
What if the brush is shedding bristles but otherwise looks fine?
Stop using it. Bristle shedding means the bonding or mechanical twist is failing, or the bristle material is weakening. Lost bristles inside a tube are a contamination risk. Switch to a brush with a compatible bristle type for your process and check for chemical incompatibility.
Is there a standard percentage of bristle loss that means “replace immediately”?
There is no single universal number, but a practical rule: replace when bristle loss approaches 15‑20% of the total fill diameter or when bare spots appear on the core. If cleaning quality drops, don’t wait for a percentage—act on performance.
