How to Choose Cement Conveyor Cleaning Brush

What Is a Cement Conveyor Cleaning Brush?

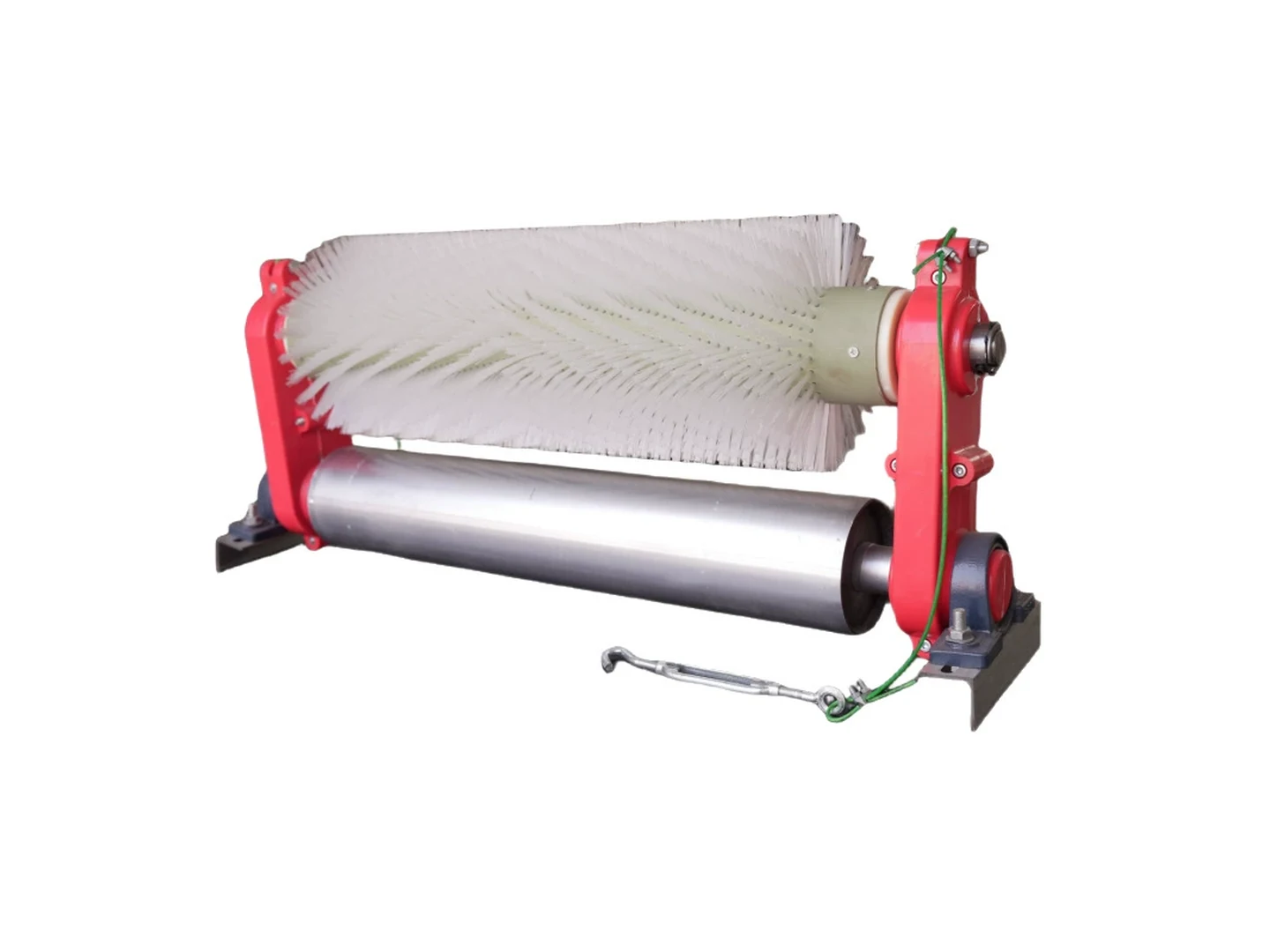

A cement conveyor cleaning brush is a mechanical cleaning device that uses rotating or stationary brush elements to scrub the belt surface continuously. It is positioned against the belt, usually after the head pulley or on the return run, to dislodge fine cement particles before they harden, build up on rollers, or fall as spillage. Unlike simple scraper blades, brushes conform to belt irregularities and are less likely to damage splice joints or belt covers. For cement applications, brush bristles must resist abrasion, moisture, and alkaline dust while maintaining effective contact over long runs.

Common Types of Conveyor Cleaning Brushes

For the safety point in this section, the relevant OSHA reference is OSHA — Machine Guarding.

For the safety point in this section, the relevant OSHA reference is OSHA — Control of Hazardous Energy.

For the safety point in this section, the relevant OSHA reference is OSHA — Combustible Dust.

For the environmental or chemical-safety point in this section, the supporting reference is EPA — Particulate Matter Basics.

For the safety point in this section, the relevant OSHA reference is OSHA — Respirable Crystalline Silica.

Brushes for cement conveyors come in a few main configurations. The three most relevant types are:

• Rotary roller brush: A cylinder-shaped brush mounted on a driven or idler shaft. It rotates against the belt direction or with the belt to sweep carryback into a collection chute. Best for high-speed belts and heavy residue.
• Stationary strip brush: A straight brush held in a fixed holder with adjustable tension. Simple to install and often used as a secondary cleaner behind a primary scraper. Works on slower belts or for polishing the belt surface.
• Spiral or segmented brush: A roller brush with bristles arranged in a spiral or separate segments to improve debris evacuation and reduce bristle loading. Useful for sticky or damp cement residue that clumps.

Bristle materials further split these types. Nylon (polyamide), polypropylene, abrasive-impregnated nylon, and stainless steel wire are the most common fill materials, each suited to a different balance of cleaning aggressiveness and belt safety.

Roller Brush vs. Strip Brush: Which Cleaning Method Fits Your Conveyor?

What to Compare When Selecting a Cement Conveyor Cleaning Brush

Choose by matching the brush to your specific operating conditions, not just belt width or cost.

• Conveyor interface: Measure belt width, belt speed, pulley diameter, and available mounting space. The brush must cover the full material-carrying width with a few inches of extra bristle fill on each side.
• Residue type: Dry, abrasive cement dust can be handled with medium nylon bristles. Sticky, damp residue or hardened build-up may require abrasive nylon (grit-impregnated) or even a stainless steel wire fill—but wire bristles increase the risk of belt cover wear, so use them only when necessary and with lower contact pressure.
• Operating environment: Moisture, temperature, and chemical exposure (alkaline cement pH) influence bristle life. Polypropylene resists moisture and chemicals better than standard nylon. Abrasive nylon holds its stiffness longer in wet conditions.
• Contact pressure and pattern: Too little pressure means poor cleaning; too much pressure overheats the bristles and accelerates wear. Aim for a contact footprint around ¼–½ inch (6–12 mm) deep. Rotary brushes often allow better control through adjustable positioning or spring tensioning.
• Replacement cycle: Evaluate how often the brush can be changed. Quick-change hubs or split brush designs reduce downtime. If production stops only during scheduled maintenance, select a durable fill that lasts until the next scheduled window.
• Drive method: For a roller brush, decide whether to belt-drive from the conveyor (simple, no extra motor) or use an independent electric or hydraulic drive (constant speed regardless of belt movement). Independent drives are preferred when the conveyor stops frequently but cleaning is still needed.

Placement and Setup Factors That Affect Brush Performance

Where you put the brush matters as much as the brush itself.

• Position: The most effective location for a primary rotary brush is at the head pulley, just after material discharge, where the belt is still flat and carryback is loose. A secondary brush can go further along the return side, before the snub pulley, to catch any remaining dust.
• Angle of contact: The brush should contact the belt at a slight wrap angle—typically 3 to 5 degrees—so bristles release debris toward a collection pan or chute, not back onto the return belt.
• Direction of rotation: For a driven roller brush, rotate against the belt’s travel direction (counter to belt movement) for most aggressive cleaning. Rotating with the belt direction reduces wear and is suitable for soft bristle finishing. Many cement plants use a “kiss” position, where the brush just touches the belt with minimal deflection.
• Tensioning mechanism: Use spring-loaded, counterweighted, or pneumatic tensioners to maintain consistent contact as bristles wear. Manual fixed mounts can lead to declining performance over time.

Common Mistakes in Brush Selection

• Choosing by belt width alone: Ignoring bristle density, material, or mounting compatibility leads to a brush that fits but doesn’t clean. Verify the brush can handle your residue and belt speed.
• Mismatching bristle to residue: Using soft polypropylene on hardened cement clinkers, or putting aggressive wire bristles on a thin rubber belt, can cause rapid failure or belt damage. Test a small section or request a sample first for critical applications.
• Ignoring belt splice bumps: Mechanical splices or repair patches can catch bristles. A roller brush with flexible, longer bristles and a pivot mount will ride over irregularities better than a rigid strip brush.
• Neglecting cleaning direction and containment: A brush without a properly positioned collection pan or spray bar may simply relocate dust rather than remove it. Plan for what happens to the removed material.
• Overlooking drive requirements: A free‑running idler roller brush depends on belt motion to spin. If the belt coasts to a stop under load, it may clog. In those cases, choose a motorized brush.
• Buying on initial cost only: A low-cost brush that wears out in weeks costs more in downtime and replacement labor than a durable brush with a clear replacement schedule.

When a Standard Brush Is Not Enough

Off‑the‑shelf conveyor cleaning brushes work for many cement handling lines, but certain conditions push beyond their limits:

• Heavy, compacted residue: If carryback hardens into concrete‑like deposits, a standard nylon brush may polish the surface rather than remove it. A more aggressive fill, such as abrasive nylon or stainless steel wire, may be needed, or a primary mechanical scraper should be installed before the brush.
• Unusual belt profiles or extreme widths: Belts wider than 84 inches, or those with deep chevron cleats, often require a custom brush assembly with segmented design and special mounting brackets.
• Wet and dry cycles: Cement dust that gets damp then dries can form a crust. In these conditions, a combination of a water spray and a brush works better than a dry brush alone. The brush must tolerate intermittent wetness.
• High‑temperature belts: Hot clinker belts require bristle materials (like heat‑stabilized nylon or steel) that maintain stiffness at elevated temperatures. Standard nylon softens and loses cleaning effectiveness.

When any of these apply, ask the supplier for a custom drawing or a test sample. Provide your belt width, speed, head pulley diameter, residue pH and moisture content, and ambient temperature range. That information ensures the proposed brush is engineered for your exact conditions, not adapted from a generic catalog part.

Final Takeaway

A cement conveyor cleaning brush is not a “one size fits all” item. Start by defining your residue characteristics and operating environment, then match a brush type (rotary roller vs. strip), bristle material (nylon, abrasive nylon, polypropylene, wire), and mounting method that fits your conveyor geometry. Factor in the replacement cycle and tensioning system as part of the total cost of ownership. When resinous build‑up, extreme belt widths, or high temperatures are present, invest in a custom design and testing phase rather than forcing a standard brush into a job it cannot handle. That approach reduces belt damage, spillage cleanup, and unplanned downtime.
