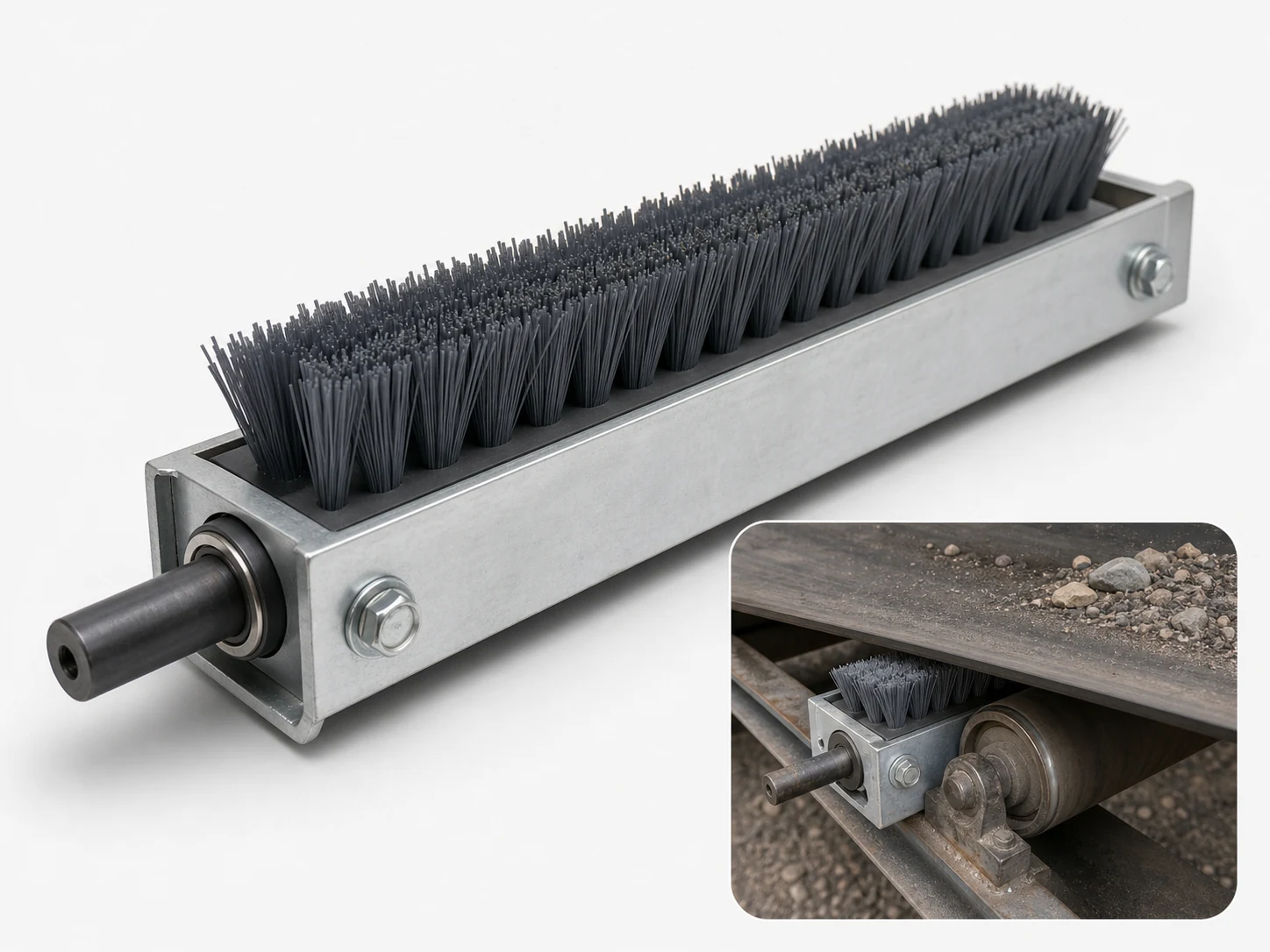

What Is a Mining Conveyor Belt Brush?
A mining conveyor belt brush—often called a conveyor belt brush cleaner, roller brush, or cleaning brush—is a cylindrical or strip-style brush designed to sweep residual material off a moving belt. It is a core element of a conveyor belt cleaning system, used in mining, quarrying, cement, and bulk material handling to reduce carryback, improve housekeeping, and extend belt and idler life. Unlike fixed scrapers that rely on a blade, brushes use flexible bristles to conform to belt irregularities and remove fine or sticky material without damaging the belt cover.
Common Types of Brush Structures
- Spiral-wound roller brushes: Bristles are wound in a continuous helix around a core, offering full‑width contact and uniform cleaning. Often used as primary cleaners or in motorized assemblies.
- Channel strip brushes: Bristle strips are inserted into a rigid channel or holder, allowing individual strip replacement without changing the entire brush roll. Common on head pulleys and in wash box systems.
- Gang-mounted brush clusters: Multiple shorter brush segments are arranged along a shaft to cover wide belts, simplifying handling and replacement.
- Idle (passive) brushes: Roll freely against the belt and rely on belt motion for rotation. Low‑cost and low‑maintenance but less aggressive on stubborn residue.
- Motorized (driven) brushes: A separate drive rotates the brush at a controlled speed and direction, increasing cleaning energy for sticky or compacted residues. Often reversible to maximize bristle wear life.
Brush Selection Comparison Table
| Brush Type | Typical Configuration | Best for Residue Type | Bristle Material Options | Mounting Style | Maintenance Frequency | Relative Cost |
|---|---|---|---|---|---|---|
| Spiral roller brush | Full‑width helix on a single core | Dry fines, dust, non‑sticky powders | Nylon, abrasive nylon, polypropylene | Shafted, pillow block bearings | Low – replace entire roll when worn | Medium |
| Channel strip brush | Segmented strips in a holder | Sticky, wet, or abrasive carryback | Abrasive nylon, polyester, steel wire | Bolt‑on channel to frame | Medium – individual strips can be swapped | Low–Medium |
| Motorized spiral brush | Driven roller with adjustable speed | Compacted, frozen, or heavy residue | Nylon, abrasive nylon, steel‑filled nylon | Shafted with motor mount | Drive components require periodic inspection | High |
| Passive idle roller brush | Simple roller on bearings | Light dust, non‑abrasive fines | Polypropylene, nylon | Bracket with spring or gravity tension | Very low – check bearings periodically | Low |
How to Choose the Right Mining Conveyor Belt Brush
For the safety point in this section, the relevant OSHA reference is OSHA — Machine Guarding.
For the safety point in this section, the relevant OSHA reference is OSHA — Control of Hazardous Energy.
For the safety point in this section, the relevant OSHA reference is OSHA — Combustible Dust.
For the environmental or chemical-safety point in this section, the supporting reference is EPA — Particulate Matter Basics.
For brush terminology and construction language, this section references American Brush Manufacturers Association — Brush Lingo.
Choosing the correct brush starts with application data, not a catalog part number. Work through these decision factors:
- Belt interface and mounting space: Measure belt width, head‑pulley diameter, and available frame clearance to determine the maximum brush diameter and length. Confirm whether the brush must mount on the face (carrying side) or return side of the belt and how much adjustment range is available.
- Residue characteristics: Sticky, wet, or fibrous residues often require motorized brushes or aggressive bristle materials such as abrasive nylon. Dry, free‑flowing dust may only need a passive spiral brush.
- Bristle material: Nylon offers good wear and resistance to chemicals; abrasive nylon (impregnated with silicon carbide or aluminum oxide) adds cutting action for caked‑on material; polypropylene is economical but less durable; steel wire can damage belt covers and is usually reserved for non‑critical or open‑mesh belts. Match the bristle to the material being cleaned and the belt cover type.
- Operating environment: High temperatures, moisture, or acid conditions may require stainless‑steel cores, special polymers, or sealed bearings.
- Cleaning intensity: A passive brush relies on gravity and spring tension; it cleans best with moderate belt speeds and light residue. A driven brush can provide a higher relative surface speed and can rotate against the belt for deeper cleaning. Consider whether you need a single brush or a multistage system with a primary scraper followed by a brush.
- Replacement cycle and maintenance access: Look at how quickly bristles wear down. A channel strip design allows low-cost, quick strip changes without pulling the shaft. Spiral rolls generally require a full‑roll change, but they may last longer. Evaluate how often maintenance can access the brush area and plan replacement intervals accordingly.
Common Mistakes When Selecting a Conveyor Brush
- Choosing by cost alone: A low‑cost brush that wears out in weeks and requires constant adjustment costs far more in labor and downtime than a properly specified brush with longer life.
- Ignoring bristle wear rate and belt damage risk: Too‑stiff bristles can scuff the belt cover; too‑soft bristles wear quickly and fail to clean effectively. Always verify bristle‑to‑belt pressure with the brush manufacturer for your specific belt compound.
- Mismatching brush length to belt width: A brush that is narrower than the belt leaves an uncleaned margin, where carryback can accumulate on idlers. A brush that is too wide may interfere with structure.
- Skipping mounting adjustment range: Brushes require periodic retensioning as bristles wear. If the mounting bracket lacks travel, the brush will lose contact prematurely.
- Overlooking maintenance access: A brush buried behind guards and chutes becomes a “set and forget” item that is never inspected until failure occurs.
When a Standard Brush Is Not Enough
A catalog‑standard mining conveyor belt brush can solve many cleaning challenges, but certain conditions call for a custom solution:
- Extreme residue: Highly sticky or wet materials (e.g., certain clays or sludge) may require a double‑brush arrangement, rubber‑paddle combination cleaners, or belt washing systems that a standard brush cannot deliver alone.
- Non‑standard belt widths or pulley diameters: If your equipment does not match common brush dimensions, a custom‑length core, special end fittings, or a larger‑diameter brush may be necessary.
- High‑temperature or corrosive environments: Standard polymer bristles and carbon‑steel cores degrade quickly above certain thresholds. Custom materials such as stainless steel, specialty nylons, or metal‑filled composites may be needed.
- Regulatory or safety requirements: In some mining sectors, spark‑resistant (brass or conductive) brushes or food‑grade (if applicable) materials are mandatory. A standard brush will not meet these requirements.
- When a drawing or sample is required: If the interface geometry is complex or multiple brush types must be trialed, working with a manufacturer on a custom drawing and prototype sample is often the safest route to avoid costly rework.
Final Takeaway
Start with your belt’s width, speed, and the exact residue you need to remove. Then choose a brush structure and bristle material that match that residue without harming the belt cover. Consider how easily the brush can be adjusted and serviced in your layout. If a standard part fits—fine; if not, a custom drawing or sample evaluation will pay off in longer brush life and less downtime.
Frequently Asked Questions
What size roller brush should I use for my conveyor belt?
Measure your belt width and select a brush that covers the full material‑carrying face, typically the belt width minus a small margin on each side (e.g., 1–2 inches). The brush diameter depends on available space around the head pulley and the cleaning force needed; common diameters range from 4 to 12 inches in mining applications. Always confirm clearance and mounting bracket travel with the supplier.
How often should I replace a mining conveyor belt brush?
Replacement frequency depends on bristle material, residue abrasiveness, and belt speed. A rule of thumb is to inspect brushes frequent and replace when bristles have worn to about half their original length or when cleaning performance drops visibly. Channel strip designs allow spot replacement; full‑roll brushes are usually replaced on a 6‑ to 12‑month cycle.
Can one brush clean both sides of the belt?
Typically, a brush is positioned on either the carrying side or the return side, not both. The same brush model may be used in multiple locations, but it cleans only the surface it contacts. A dual‑side cleaning system usually uses a primary scraper on the face side and a brush on the return side.
What bristle material works best for abrasive mining residues?
Abrasive nylon bristles impregnated with silicon carbide or aluminum oxide are a strong choice for tough carryback. They offer a balance between cleaning aggressiveness and belt‑friendly contact. For extreme abrasion, some manufacturers use steel‑filled nylon, but always verify belt cover compatibility.
Is a motorized brush better than a passive brush?
Motorized brushes provide more consistent cleaning energy and can rotate against the belt, making them better for sticky, compacted, or heavy residues. Passive brushes are simpler, cheaper, and work well for light dust or dry fines. The choice depends on the material being cleaned and the conveyor speed.
How do I know if the brush pressure is correct?
Correct pressure removes carryback without excessive bristle flare or belt scuffing. A visual check: the bristle tips should lightly sweep the belt, not be fully flattened. Many designs provide spring‑loaded or gravity‑based tensioners with adjustment indicators. Consult the brush manufacturer’s pressure guidelines for your specific bristle and belt type.
Can I use an abrasive nylon cup brush instead of a roller brush for spot cleaning?
Abrasive nylon cup brushes are typically used on handheld tools or in fixed positions for isolated cleaning, but they do not provide continuous full‑width belt cleaning like a roller brush. For primary conveyor cleaning, stick with roller or channel brushes designed for full‑width coverage.
