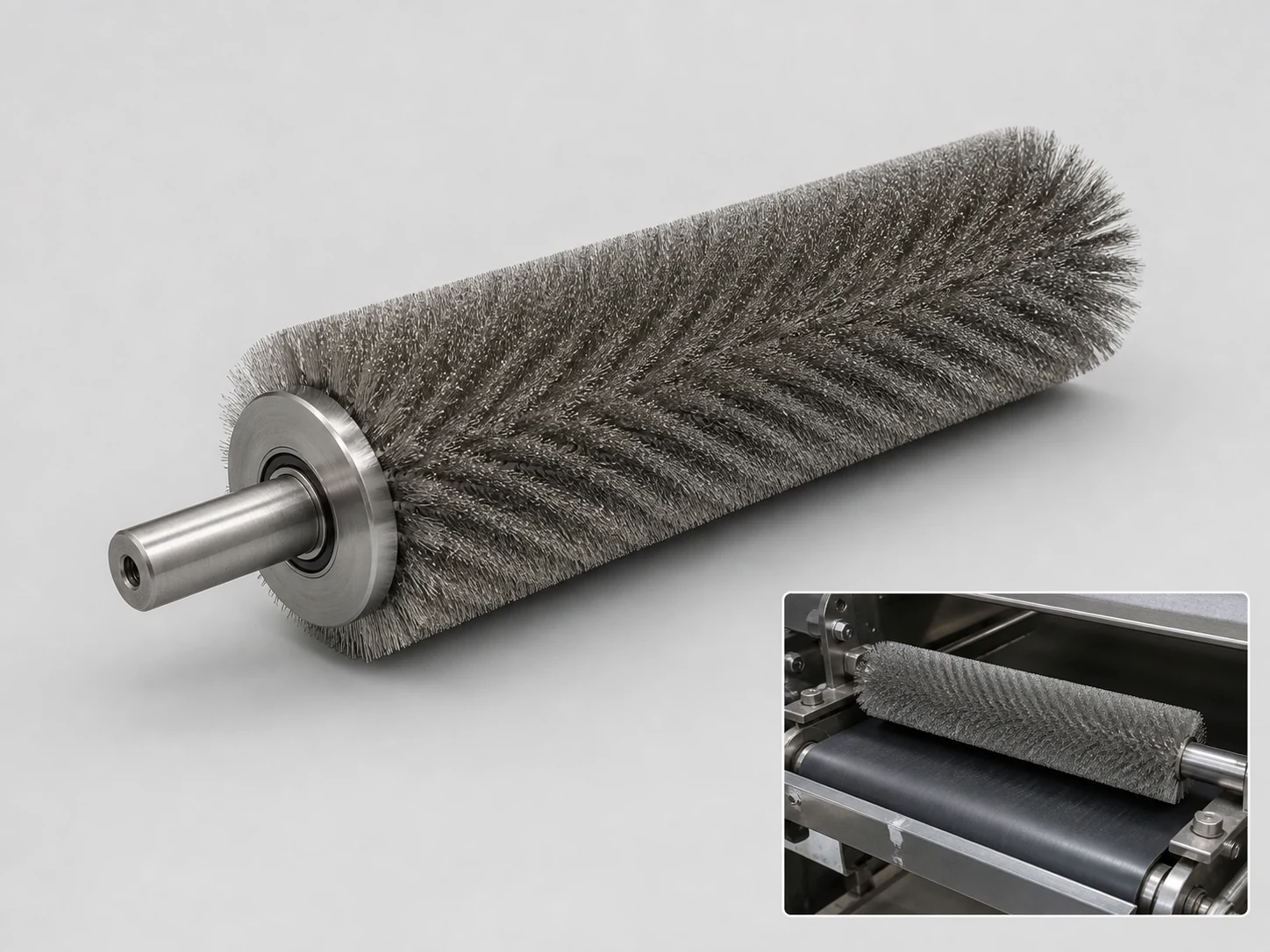

What Is a Stainless Steel Brush Roller?
A stainless steel brush roller is a cylindrical brush whose filling consists of stainless steel wire or strips, mounted on a core for use in powered or manual applications. It delivers aggressive mechanical action for tasks like deburring, descaling, rust removal, surface roughening, conveyor cleaning, or chip removal. Compared to brass, nylon, or abrasive-filled bristles, stainless steel offers higher stiffness, better wear resistance, and excellent tolerance to heat and many chemicals.
For material-selection language, this section is supported by World Stainless — Corrosion Resistance of Stainless Steels.
For brush terminology and construction language, this section references American Brush Manufacturers Association — Brush Lingo.
For dimension and measurement language, NIST — Metric SI supports the use of consistent SI/metric specifications.
Industrial buyers often encounter stainless steel brush rollers in metalworking, food processing, packaging, textile machinery, and heavy equipment maintenance. The key is that “stainless steel” refers to the bristle material—not the core, shaft, or mounting hardware.
Common Types of Stainless Steel Brush Roller Options
When specifying a stainless steel brush roller, you are usually deciding among these variations:
- Wire Gauge or Diameter: Thicker wire cuts more aggressively and lasts longer; thinner wire conforms better to irregular surfaces and reduces the risk of gouging.
- Straight vs. Crimped Wire: Straight wire offers a stiffer, more aggressive bite. Crimped (wavy) wire creates a softer, more flexible face that is less likely to scratch or fatigue.
- 304 vs. 316 Stainless Steel: 304 is a general-purpose food-grade and chemical-resistant option. 316 adds molybdenum for better pitting resistance in chloride or marine environments. The choice matters most in wet or corrosive applications.
- Filament Tip Treatment: Some brush rollers have cut tips, flagged tips, or polished ends. Cut tips are sharp and paint a narrow line; flagged tips splay out for wider, softer contact.
- Filler Density and Pattern: Dense face fill increases cleaning force and brush life; sparse or spiral patterns allow better chip clearance or product transfer.
Stainless Steel vs. Other Brush Materials: Quick Comparison
| Material | Typical Stiffness | Wear Resistance | Surface Safety | Heat Tolerance | Chemical Compatibility | Static Generation | Relative Cost |
|---|---|---|---|---|---|---|---|
| Stainless Steel | High | Excellent | Low (aggressive) | High (up to ~500°F typical) | Good, especially acids/alkalis (304/316) | Conductive – does not build static | Moderate to high |
| Brass | Medium | Moderate | Better (softer, spark-resistant) | Lower than stainless | Fair; avoid ammonia, strong acids | Conductive | Moderate |
| Nylon | Low to medium | Low (abrasive wear quickly) | Excellent (non-marring) | Low (softens ~180–250°F) | Good; resistant to many solvents | Insulating – can build static | Low to moderate |
| Abrasive Nylon (impregnated) | Medium-high | High (abrasive grains wear down) | Moderate (can scratch) | Limited by nylon binder | Fair; binder may degrade | Insulating | Moderate to high |
This table shows why stainless steel is the go-to when high aggressiveness, heat, or chemical resistance is needed. However, if surface finish is critical or you need a spark-free environment, alternatives may be safer.
How to Choose the Right Stainless Steel Brush Roller
Use these five decision factors to narrow your options before contacting suppliers:
- Contact Surface: Is it a flat metal plate, a textured profile, a polished cylinder, or a delicate coating? Rougher, harder surfaces tolerate thicker, straight stainless steel wire. Coated or soft materials may require thinner, crimped wire or a lower density.
- Residue Type: Rust, scale, heavy weld slag, sticky glue, or fine dust. Hard, thick deposits demand high wire gauge and straight wire. Light contamination may be removed effectively with crimped stainless steel to avoid substrate damage.
- Machine Speed and Force: High-speed operation (e.g., above 1000 SFM) can cause wire fatigue and heat buildup. Thicker wire or 316 material may hold up longer. Low-speed, high-pressure applications favor dense fill patterns.
- Dry or Wet Operation: Wet environments (coolant, washdown, chemical spray) call for 316 over 304 if chlorides are present. Dry operation increases friction heat; stainless steel handles it better than nylon, but dust extraction may be needed to prevent loading.
- Documentation and Compliance: Food, pharmaceutical, or cleanroom uses often require material certifications, supported by food-contact documentation lubricants, or additional finishing. Stainless steel can meet many of these, but you must specify the exact grade and surface finish requirements.
Common Mistakes When Selecting Stainless Steel Brush Rollers
- Choosing by Wire Thickness Alone: Thicker is not always better. Overly aggressive wire can ruin tolerances, create deep scratches, or tear thin-gauge materials.
- Assuming All Stainless Steel Is the Same: 304 and 316 have different corrosion profiles. Using 304 in a chloride washdown environment can lead to premature rusting and contamination.
- Ignoring Crimp: Straight wire may be too stiff for contoured parts; the brush will wear unevenly or skip areas. Crimped wire provides conformability without losing cleaning power.
- Skipping a Pilot Test: Operating conditions on paper rarely tell the full story. Dwell time, lubricity, and vibration can change brush life and effectiveness dramatically.
- Overlooking Core and Mounting: A stainless steel brush roller is only as reliable as its shaft, bearing fit, and core material. A corroded core can fail even if the bristles are fine.
When a Stainless Steel Brush Roller May Not Be Enough
Stainless steel bristles excel at aggressive cleaning, but they have limits. If you are working with extremely soft substrates (aluminum, copper, some polymers), abrasive nylon or a softer metal like brass may prevent galling. In explosion-risk environments (e.g., solvent-laden air), stainless steel can spark on impact with rusty steel; brass is often specified for spark resistance. For ultra-high-temperature applications (above 600°F), specialized alloys or ceramic filament brushes are necessary.
Also, if your process demands zero metallic residue (e.g., certain medical or optical coatings), stainless steel may be unacceptable. In such cases, custom material blends—such as stainless steel with an elastomeric coating or a hybrid filament—may be required. This is where sample testing with your actual workpiece and operating parameters becomes critical. A trial run with a few candidate brush configurations will almost always pay back the time invested.
Final Takeaway
Choosing a stainless steel brush roller is a decision about balancing aggressiveness, material life, and surface integrity. Start with the basics: know your substrate, your target residue, and your operating environment. Use the comparison table to rule out materials that clearly don’t fit. Then narrow wire gauge, crimp, and grade (304 vs 316) based on the needed force and chemical exposure. When the risk is high—expensive parts, safety-critical surfaces, or borderline operating conditions—insist on sample testing before committing to a full production order.
Practical Use Note
In daily use, the practical test is simple: check whether the brush reaches the full contact area, removes the target residue, and leaves the surface in the required condition. Record what changes when screen opening, belt or surface material, carryback, uptime risk, and whether the brush can clean without process damage changes, because many brush failures are caused by the working condition shifting rather than by the brush body alone.
Frequently Asked Questions
What is the difference between 304 and 316 stainless steel brush roller bristles?
304 stainless steel provides good corrosion resistance in most general and food-processing environments. 316 adds molybdenum, which significantly improves resistance to chlorides and pitting in marine, chemical, or heavy-washdown applications. If your cleaning process uses chlorinated cleaners or high-humidity salt exposure, 316 is typically the better choice.
Can I use a stainless steel brush roller on aluminum surfaces?
It is possible, but caution is needed. Stainless steel wire can gall or smear aluminum, leaving embedded particles that may corrode later. For critical surface finish, a crimped, thinner wire or a material like brass may be safer. Always test on a scrap piece first.
How do I prevent a stainless steel brush roller from rusting?
Stainless steel resists rust because of its chromium oxide layer. However, if the brush is used on carbon steel and iron particles become embedded, those particles can rust and appear as “tea staining”. Regular cleaning, using a dedicated stainless-only brush, and selecting 316 for harsh environments helps prevent this.
Is a stainless steel brush roller anti-static?
Yes, stainless steel is electrically conductive and will not build up static charge during operation. This makes it suitable for applications where static discharge could damage components, ignite flammable dust, or attract contaminants.
Can I use a stainless steel brush roller in a wet, high-temperature washdown?
Generally yes, provided you select a grade appropriate for the chemical and temperature conditions. 316 is often recommended for aggressive washdowns. Also ensure that the core and shaft materials are compatible to avoid galvanic corrosion.
What should I do if the brush roller wire is too aggressive for my surface?
Switch to a thinner wire gauge, choose crimped wire instead of straight, or reduce the fill density. You can also consider a mixed-filament brush that blends stainless steel with a softer fiber to tone down aggressiveness.
How do I prepare a technical request for a stainless steel brush roller?
Provide clear information: workpiece material and hardness, type of residue to remove, machine speed and pressure, wet/dry operation, chemical exposure, and any surface finish limitations. Specifying 304 or 316, wire diameter, crimp type, and core dimensions will help suppliers give you an accurate proposal. Always ask for a test segment if available.
