What Is a Strip Brush Channel?
A strip brush channel is the metal or plastic retainer that holds the brush fill (bristles) in a linear brush strip. It serves two main jobs: it gives structural support to keep the strip straight during mounting, and it provides a base that can be fastened to a machine frame, door, or conveyor. The channel’s design directly affects how well the brush seals, wipes, or cleans in its application.
For engineering drawing, dimensions, tolerance, thread, fit, and RFQ specification context, this section references ASME — Y14.5 Dimensioning and Tolerancing.
For brush construction terminology, bristle/fill/backing/stem terms, this section references American Brush Manufacturers Association — Brush Lingo.

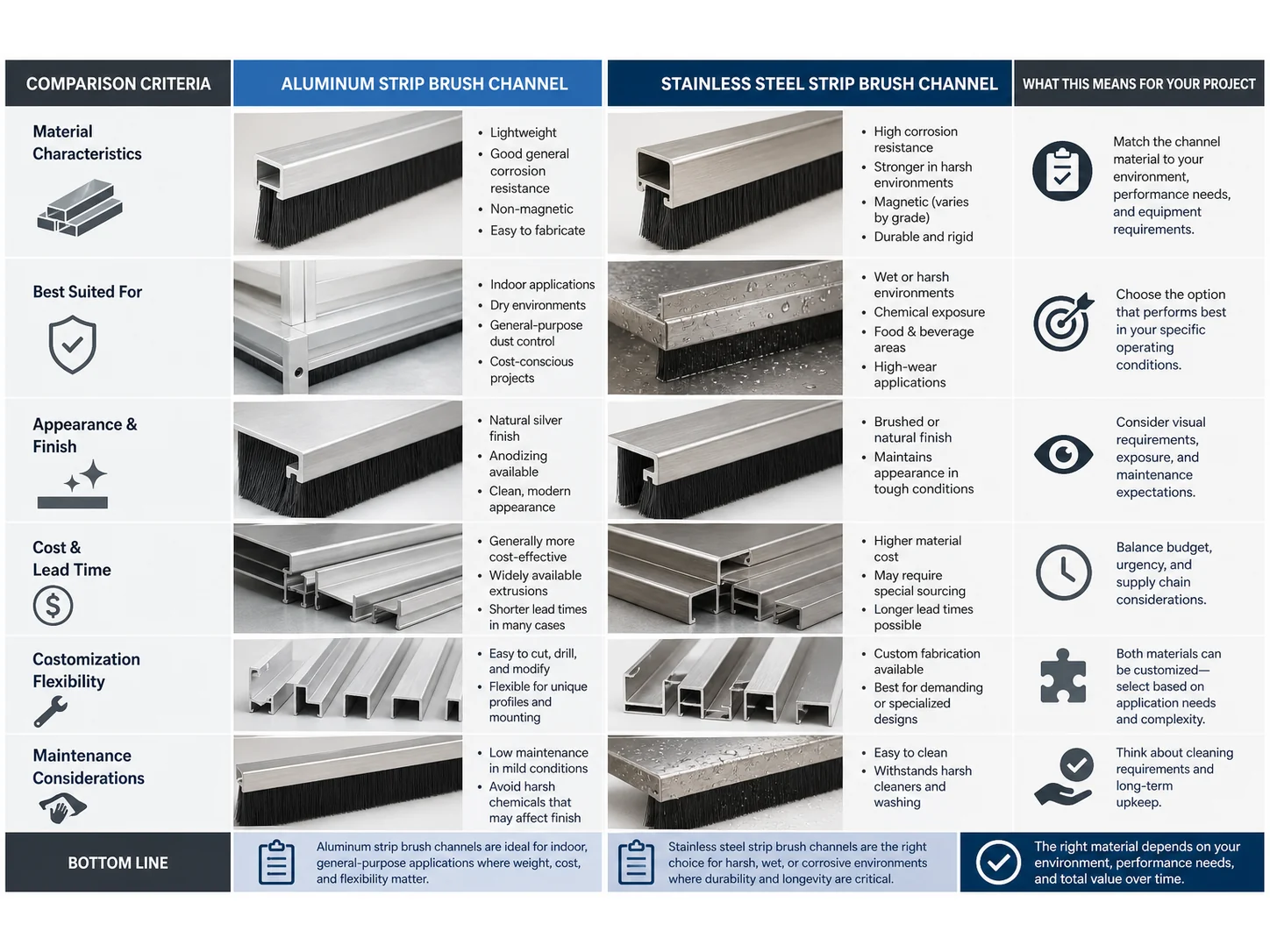

Common Strip Brush Channel Materials
Strip brush channels come in four primary materials. Each offers a different balance of corrosion resistance, strength, weight, and cost.
| Material | Typical Use | Corrosion Resistance | Strength | Relative Cost |
|---|---|---|---|---|
| Aluminum | Light‑duty sealing, clean environments, food equipment | Good in dry air; can corrode in alkali or chloride exposure | Moderate | Medium |
| Stainless Steel | Washdown, chemical, marine, pharmaceutical | Excellent; 304/316 grades resist most acids and moisture | High | Higher |
| Galvanized Steel | General industrial, outdoor (with shelter), conveying | Good while zinc coating is intact; will rust if scratched deeply | High | Low |
| PVC / Plastic | Light‑duty, low‑cost, indoor, no metal contact | Excellent against water and mild chemicals | Low | Lowest |
Pay close attention to the operating environment. A strip brush channel that works perfectly in a dry warehouse may fail quickly in a humid food‑processing line if the wrong material is chosen.
Standard vs Angled vs Curved Profiles
The channel’s cross‑sectional profile determines how the brush sits against the mounting surface and what fastening options are available. The three most common profiles are standard, angled, and curved.
For SI measurement and unit specification context, this section references NIST — Metric SI.
| Profile | Best For | Mounting Method | Limitations |
|---|---|---|---|
| Standard (Flat Back) | Straight‑line sealing on flat surfaces | Screws, clamps, or slide‑in retainers | Poor fit on curved or angled surfaces; may require extra sealant for a tight seal |
| Angled (Bent Leg) | Corner sealing, guiding product around bends, preventing bypass | Screws at an angle; often used with a mating plate | More complex to fabricate; may need custom bending |
| Curved (Radius) | Arcs in conveyor systems, rotary tables, curved door edges | Flex‑fit grooves or press‑in retainers; sometimes snap‑fit | Must be pre‑formed to exact radius; can’t be bent from straight stock on site |
Choosing the wrong profile often forces installers to deform the channel or add spacers, which compromises the brush’s sealing ability and long‑term retention.
How to Choose the Right Channel Based on Installation and Environment
Start with the conditions the strip brush will face, then work backward to the channel spec.
- Identify the operating environment: Does it involve moisture, chemicals, temperature extremes, or washdown? Stainless steel is your default for corrosive settings; aluminum or galvanized can work in dry, indoor applications.
- Look at the mounting surface: Is it flat, angled, or curved? A standard channel needs a flat, straight surface. If the surface bends or turns, angled or curved channels avoid gaps.
- Check the fastening method: Some channels are designed for screws, others for snap‑in retainers. Make sure the channel profile matches the hardware you can use.
- Confirm fill retention needs: The channel’s lip and gauge must hold the bristles securely. High‑vibration or heavy‑pressure applications require a thicker gauge and deeper crimp.
- Factor in maintenance and lifespan: A channel that corrodes or deforms will loosen the brush fill. Spending slightly more on the right material often eliminates unscheduled downtime.
Common Mistakes in Strip Brush Channel Selection
Even experienced designers fall into these traps. Here are five mistakes that can lead to poor retention, corrosion, or installation headaches.
- Choosing the wrong channel gauge. A channel that is too thin (e.g., 0.020″) may spread open under load, causing bristles to fall out. For heavy‑duty wipers, select a heavier gauge like 0.032″ or 0.040″.
- Ignoring galvanic corrosion. Mounting an aluminum channel with steel fasteners in a wet environment creates a battery effect. Use matching metals or insulating washers.
- Using a standard profile where an angled brush is needed. On a 45‑degree corner, a flat channel leaves a wedge‑shaped gap. An angled profile follows the corner and keeps the sealing line tight.
- Selecting material based solely on upfront cost. Galvanized steel may look cheaper, but if it rusts in six months, the replacement labor and downtime far exceed the material savings.
- Overlooking thermal expansion. Long runs of aluminum channel can buckle in high heat. Stainless steel expands less and handles wider temperature swings.
When a Standard Channel Is Not Enough – Custom Extrusion
Standard stock channels work for most applications, but sometimes a unique mounting geometry, a non‑standard lip design, or a special alloy is required. In these cases, a custom extruded channel may be the only option.
Consider custom extrusion when:
- You need a profile that doesn’t exist in any catalog—an odd T‑slot, a built‑in snap‑fit, or a radius that can’t be produced by bending.
- You require a specific material grade not available off the shelf, such as 316L stainless for extreme corrosion resistance.
- High‑precision retention lips are critical to hold dense or stiff brush fill, and standard channels are too loose or inconsistent.
Custom extrusion does add production schedule and tooling cost, so it’s important to exhaust standard options first. But when the design demands it, a custom channel makes a future‑proof, maintenance‑friendly assembly possible.
Final Takeaway
Choosing a strip brush channel is not just about picking a metal shape. Match the material to the environment, match the profile to the mounting surface, and never skip the retention requirements. A well‑specified channel keeps your brush fill in place, reduces maintenance calls, and prevents sealing failures. When in doubt, consult with a strip brush manufacturer early in the design process—especially if you think you might need a custom extrusion.
Practical Use Note
In daily use, the practical test is simple: check whether the brush reaches the full contact area, removes the target residue, and leaves the surface in the required condition. Record what changes when drawings, dimensions, mounting interface, filament material, stiffness, sample testing, and actual working conditions changes, because many brush failures are caused by the working condition shifting rather than by the brush body alone.
Frequently Asked Questions
What channel gauge should I choose for my strip brush?
Choose based on fill density and operating pressure. Light sealing can use 0.024″–0.030″ gauge; heavy wiping or high vibration requires 0.032″–0.040″ or thicker. Always confirm with the manufacturer’s retention specs.
Can I use an aluminum channel outdoors?
Aluminum works outdoors if it is not exposed to alkaline cleaners or salty air. In marine or heavy industrial environments, opt for stainless steel to avoid pitting and rapid corrosion.
How do I decide between stainless steel and galvanized steel?
Think about exposure. Stainless steel tolerates constant moisture, cleaning chemicals, and food‑grade conditions. Galvanized steel is adequate for dry, indoor industrial uses where the zinc coating won’t be scratched routinely.
Can I bend a standard channel to follow a curve?
Generally, no. Standard channels are designed for straight runs. Bending a flat channel will kink the metal and distort the bristle retention lip. Use a factory‑formed curved channel for any radius requirement.
What is the difference between a standard and an angled profile?
A standard profile has a flat back and mounts flat against a surface. An angled profile has one or both legs bent so that the brush sits at a specific angle, making it ideal for corners or interfacing with a mating plate.
How do I know if I need a custom extrusion?
If your design review turns up a shape, material, or retention feature that no standard catalog part provides, you likely need a custom extrusion. Early supplier involvement can confirm whether a standard channel can be modified or if a custom die is justified.
What is the most common mistake when specifying a strip brush channel?
Choosing a channel gauge that is too thin for the fill type. This leads to poor bristle retention, where the bristles pull out during the first few weeks of operation. Always match the channel’s grip to the fill material, density, and application force.
Can I mount a strip brush without a channel?
Not in a reliable, industrial system. The channel provides the uniform clamping force and base needed to hold the bristles and keep the brush aligned. Without it, the brush fill will spread, wander, and quickly fail.
