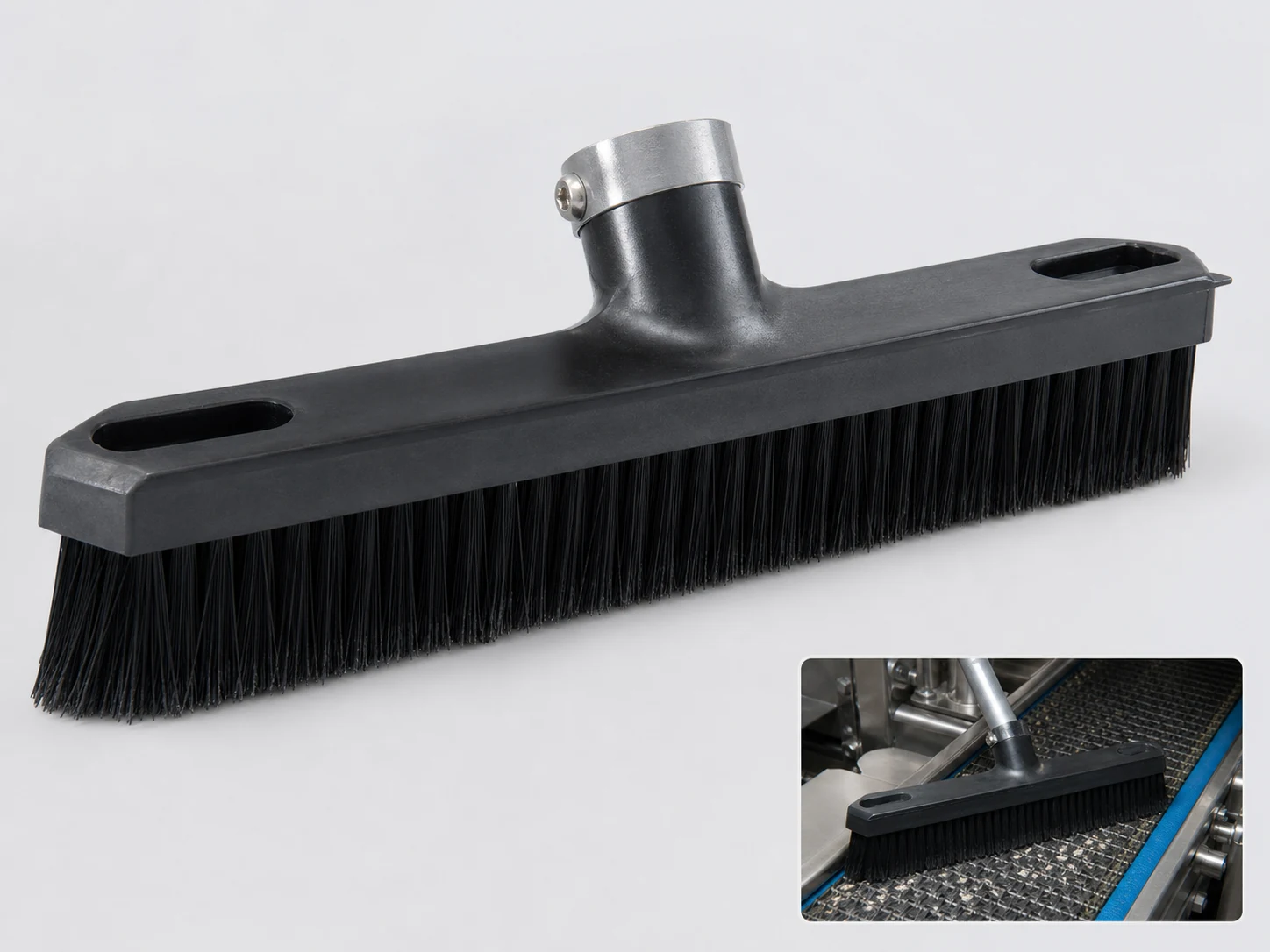

What Is a Synthetic Bristle Brush?
A synthetic bristle brush is a brush whose filament material is engineered from polymers rather than natural animal hair or plant fibers. Common synthetic bristle materials include nylon (types 6, 6.6, 6.10, 6.12), polyester, polypropylene, PTFE, and abrasive-impregnated nylon. These brushes are widely used in industrial cleaning, material handling, conveyor systems, surface preparation, and packaging because they offer consistent filament quality, good chemical and moisture resistance, and predictable wear properties.
For SI measurement and unit specification context, this section references NIST — Metric SI.
For brush construction terminology, bristle/fill/backing/stem terms, this section references American Brush Manufacturers Association — Brush Lingo.
When a Standard Synthetic Bristle Brush Works
Standard brushes fit many common tasks without any modification. You can typically stick with an off-the-shelf brush when:
For engineering drawing, dimensions, tolerance, thread, fit, and RFQ specification context, this section references ASME — Y14.5 Dimensioning and Tolerancing.
- The brush dimensions (length, diameter, trim length) match your equipment.
- Common bristle materials like general-purpose nylon or polypropylene meet your chemical and temperature needs.
- Standard mounting options (shaft, threaded end, or clamp) work with your machine.
- Your process speed and duty cycle are within the brush’s rated limits.
- You need a small quantity quickly and cannot wait for custom production.
When Customization Is the Right Move
You should consider a custom synthetic bristle brush when:
- Your equipment requires a non-standard brush size, shape, or fill pattern (e.g., a disc brush with a specific hole pattern or a tube brush with a stepped diameter).
- You need a bristle material with specific chemical resistance, temperature rating, or abrasiveness that is not available in standard stock.
- Your application runs at high speeds, high temperatures, or under severe chemical exposure, and an off-the-shelf brush would fail too soon.
- You need compliance with FDA regulations, USP class testing, or other standards for food, pharmaceutical, or medical use.
- You are scaling up a proven process and need brushes that match an existing design precisely to maintain product quality or machine throughput.
- The brush must integrate with unique mounting, drive, or holding fixtures.
Standard vs. Custom Synthetic Brushes at a Glance
| Factor | Standard Brush | Custom Brush |
|---|---|---|
| Cost per unit | Lower for typical quantities; economies of scale | Higher due to setup and engineering, but may drop at larger volumes |
| production schedule | Often in stock or days | Typically weeks; depends on tooling and testing |
| Design flexibility | Limited to catalog specs | Full control over dimensions, bristle, core, and mounting |
| Performance optimization | General performance envelope | Tuned for specific speed, temperature, and chemical conditions |
| project quantity requirement | Usually one piece | May require a minimum batch; varies by supplier |
| Risk of error | Low; known product | Moderate; specifications must be correct; prototypes may be needed |
What to Include in a Custom Brush Specification
When you decide to move forward with a custom synthetic bristle brush, you need to provide the following information to get accurate quotes and functional prototypes:
- Brush type: Strip brush, cylinder brush, disc brush, tube brush, cup brush, roller brush, or twist-in wire brush. Each has different manufacturing processes.
- Drawing or sample: A dimensioned drawing (CAD preferred) or a physical sample of the old brush with notes on what to change.
- Dimensions: Overall length, brush diameter or face width, trim length (bristle free length), fill density, and any keyed or stepped features.
- Bristle material: Specify filament type (e.g., nylon 6.6, abrasive nylon, polyester), diameter (e.g., 0.012 in, 0.020 in), color, and any required additives (anti-static, conductive, antimicrobial).
- Backing or core material: Indicate whether the brush base should be polypropylene, nylon, wood, aluminum, or stainless steel, depending on weight, corrosion resistance, and cost requirements.
- Mounting details: Provide shaft diameter, keyway dimensions, thread size, flange patterns, or any custom brackets needed for installation.
- Operating conditions: Expected temperature range, chemical exposure (type and concentration), humidity, typical speed (RPM), and working load or pressure.
- Quantity and budget: Number of units for prototyping, pilot runs, and full production; target cost range if any.
- Regulatory compliance: Relevant standards such as FDA, USDA, EU 10/2011, RoHS, REACH, USP Class VI, or ATEX if applicable.
Providing these details early will help your supplier propose the right material and construction and avoid costly iterations.
Practical Use Note
In daily use, the practical test is simple: check whether the brush reaches the full contact area, removes the target residue, and leaves the surface in the required condition. Record what changes when drawings, dimensions, mounting interface, filament material, stiffness, sample testing, and actual working conditions changes, because many brush failures are caused by the working condition shifting rather than by the brush body alone.
Bottom Line
The best result comes from matching synthetic bristle brush to the real cleaning task rather than forcing one brush to solve every condition. Confirm access, residue, surface limits, and replacement routine first; then use a small trial or inspection step before scaling the method into daily work.
Frequently Asked Questions
What is the typical project quantity requirement for custom synthetic bristle brushes?
It varies by supplier, but many require a minimum batch of 10 to 100 units for a custom run. Prototyping services may offer smaller quantities at a higher unit cost. Always discuss volume upfront.
How long does it take to get a custom brush manufactured?
production schedules range from 2 to 8 weeks depending on complexity, tooling requirements, and current workload. Rush services may be available but often incur extra fees.
Can I get a sample before committing to a large order?
Yes, most manufacturers offer prototype samples for testing. This is recommended to verify fit, performance, and material compatibility. Sample costs can sometimes be credited against the production order.
Which synthetic bristle material is best for high-temperature applications?
For continuous heat above 200°C (392°F), PTFE or high-temperature nylon (e.g., nylon 6.6 with heat stabilizers) are common. Polyester and polypropylene have lower temperature limits. Always specify your exact temperature range and duration.
Do I need FDA-approved brushes for food processing?
If the brush contacts food directly or indirectly (e.g., conveyor cleaning in a food plant), supported by food-contact documentation materials are required. Your supplier can provide documentation for bristles and cores that meet FDA 21 CFR standards.
