What Is a PCB Brush?
A PCB brush is a small, precision cleaning tool specifically designed for cleaning printed circuit boards (PCBs) and electronic components. Unlike general-purpose brushes, PCB brushes minimize the risk of ESD damage by using materials with controlled surface resistivity—either conductive, static-dissipative, or anti-static. They typically feature fine bristles to reach tight spaces, remove solder flux, dust, and other contamination without scratching delicate traces or damaging coatings.
Why Static Sensitivity Matters in PCB Cleaning
When a standard brush with insulating bristles moves across a PCB surface, triboelectric charging can generate thousands of volts of static electricity. Discharging that accumulated charge into a sensitive component—like a CMOS chip or MOSFET gate—can cause immediate or latent failure. A proper PCB brush manages that charge: conductive brushes safely bleed charge to ground, while dissipative brushes slow the discharge to safe levels. Understanding the difference is the first step in choosing the right tool for static-sensitive parts.
Common Types of PCB Brushes
PCB brushes vary primarily by bristle material and handle design. The most common categories include:
- Conductive Carbon Fiber Brushes: Bristles made from carbon fiber or carbon-filled nylon. Surface resistance typically <10^3 ohms. They quickly dissipate charges when the handle is grounded. Best for cleaning around sensitive ICs.
- Static-Dissipative Brushes: Often made from synthetic dissipative fibers (e.g., conductive nylon or polyester blends) with surface resistance between 10^3 and 10^9 ohms. They prevent static buildup without requiring a ground path.
- Insulative Natural or Synthetic Brushes: Horsehair, goat hair, or nylon bristles. High resistance (>10^12 ohms). Can generate dangerous ESD; only suitable for non-sensitive boards or wet cleaning.
- Anti-Static Brushes: Treated to reduce triboelectric charging, but not as reliable as conductive/dissipative materials.
- Specialty Brushes: Including dual-layer brushes, retractable brushes, and small precision brushes for spot cleaning.
Also consider handle/core: conductive plastic handles for grounding, wooden handles with grounding studs, or insulated handles for handheld use without grounding.

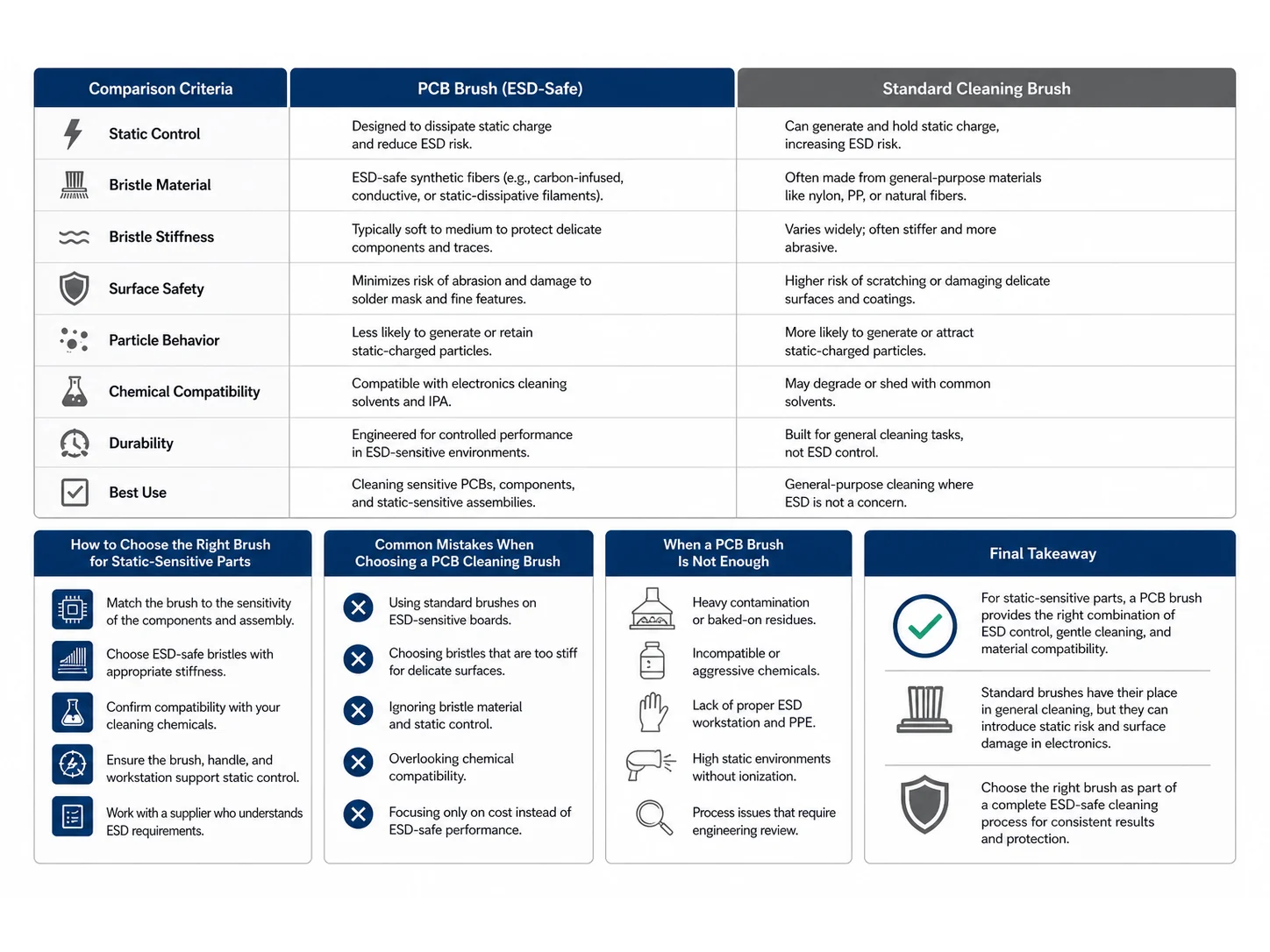

Comparison Table: Key PCB Brush Options at a Glance
| Brush Type | Bristle Material | Typical Stiffness | Handle/Core | Static Dissipation | Best For |
|---|---|---|---|---|---|
| Conductive Carbon Fiber | Carbon fiber or carbon-filled nylon | Soft to medium | Conductive plastic with grounding plug | Excellent (conductive path) | High-sensitivity boards, solder flux removal, static-safe workstations |
| Static-Dissipative Synthetic | Dissipative nylon or polyester | Medium | Dissipative polymer or carbon-loaded | Good (prevents buildup) | General PCB cleaning where grounding is impractical |
| Anti-Static Treated | Nylon or natural fiber with topical treatment | Soft to medium | Wood or plastic | Fair (degrades over time) | Low-budget cleaning of robust boards; not for critical ESD areas |
| Insulative Natural (e.g., horsehair) | Horsehair, goat hair | Soft | Wood or plastic | None (risk of ESD) | Wet cleaning with solvent, or non-sensitive boards only |
| ESD-Safe Micro Detail Brush | Conductive microfiber or carbon | Very soft | Anti-static pen-style handle | Excellent (when grounded) | Precision work near sensitive SMD components, under BGA packages |
How to Choose the Right PCB Brush for Your Application
When selecting a PCB brush, evaluate the following factors:
- Residue Type: Flux residue, loose dust, or sticky particles? Carbon fiber bristles are good for stubborn flux, while soft fiber works for light dust.
- Surface Sensitivity: How sensitive is the board? For ESD-sensitive components (class 0 or 1), use only conductive or verified dissipative brushes with proper grounding.
- Equipment Interface: Does your brush integrate with automated cleaning stations, or is it manual? Check mounting compatibility (ferrule size, handle shape).
- Wet or Chemical Exposure: If using solvents, ensure bristle material and handle bonding are compatible. Some adhesives degrade with alcohol or acetone.
- Hygiene Expectations: Cleanroom environments may require non-shedding, low-linting brushes with validated ESD properties.
- Maintenance Frequency: Can the brush be cleaned and reused? Carbon fiber brushes can be washed in isopropyl alcohol; anti-static treated brushes may lose effectiveness after washing.
- Custom Size Requirements: Standard sizes (e.g., 3–6 mm diameter, 10–30 mm bristle length) may not fit all layouts. In some cases, custom-trimmed bristles or small-headed brushes are needed for dense component placements.
Placement and Usage Factors
Even the best PCB brush can cause ESD damage if used improperly. Follow these guidelines:
- Work on an ESD-safe mat with wrist strap grounding when using conductive brushes.
- Attach the brush handle to the grounding point if the brush has a coax jack or conductive handle.
- Use gentle, low-pressure strokes to avoid mechanical damage.
- Clean brushes regularly with isopropyl alcohol to prevent contamination buildup.
- Store brushes in an ESD-protective container when not in use.
Common Mistakes When Selecting or Using a PCB Brush
- Mistaking insulative brushes for ESD-safe: A horsehair brush may feel soft but can generate dangerous static.
- Using a conductive brush without grounding: If the handle isn’t grounded, the brush can build up charge as a floating conductor.
- Choosing bristle stiffness based on feel alone: Too stiff can damage traces; too soft may not remove residue. Match stiffness to the cleaning task.
- Overlooking chemical compatibility: Bristle adhesives or fillers may dissolve in cleaning solvents, causing shedding.
- Assuming all black bristles are conductive: Dye color does not indicate conductivity. Verify surface resistivity from supplier.
- Using a single brush for all tasks: Cross-contamination from solder paste to cleaning solvents can worsen board cleanliness.
- Neglecting brush maintenance: Worn bristles create debris and lose effectiveness.
When a PCB Brush Is the Wrong Choice
A PCB brush is ideal for manual spot cleaning and light contamination. But it may not be sufficient when:
- Gross contamination: Heavy flux or conformal coating overspray requires ultrasonic cleaning or solvent spray.
- Full-board cleaning: For production cleaning, automated aqueous or solvent cleaning systems are more consistent.
- Strict ESD audit requirements: Some environments demand documented, certified dissipative brushes with traceable lot numbers—a generic brush won’t meet compliance.
- High-speed automated assembly: Robotic cleaning stations need brushes designed for machine mounting with specific shaft diameters and durability ratings.
If in doubt, request a brush sample, review data sheets for surface resistivity, and test on a non-critical board first.
Final Takeaway
Choosing a PCB brush for static-sensitive parts means matching bristle conductivity, stiffness, and handle grounding to the specific cleaning challenge and ESD protection level required. Conductive carbon fiber brushes with a grounding path are the safest default for most sensitive work, while dissipative brushes offer flexibility where grounding isn’t available. Always verify material resistivity, test compatibility with your cleaning process, and integrate the brush into a full ESD-safe workflow.
Frequently Asked Questions
What is a PCB brush made of?
PCB brush bristles are commonly made of carbon fiber, conductive nylon, dissipative synthetic fibers, or natural materials like horsehair. Conductive handles are typically carbon-loaded plastic.
How do I know if a brush is ESD-safe?
Look for a stated surface resistivity between 10^3 and 10^9 ohms for dissipative, or <10^3 for conductive. Avoid brushes without published resistivity data. A simple multimeter test may not give accurate results; trust supplier documentation.
Can I use a regular paintbrush for PCB cleaning?
No. Regular paintbrushes are often insulative and can generate high static charge, potentially damaging components. Only use brushes designed and labeled for ESD-safe electronics cleaning.
How do I clean my PCB brush?
Most conductive brushes can be rinsed with isopropyl alcohol and allowed to air dry. Avoid harsh solvents that degrade the bristle adhesive. Replace brushes when bristles become permanently deformed.
Does bristle color indicate conductivity?
No. Black bristles are not automatically conductive. Always check the manufacturer’s resistivity specification.
Can a PCB brush be used for wet cleaning?
Yes, if the bristle and handle materials are solvent-resistant. Some brushes have stainless-steel ferrules and epoxy-set bristles that withstand alcohol, acetone, or flux removers.
What size PCB brush do I need?
For general bench work, a 4–6 mm diameter brush with 15–20 mm bristle length is common. For tight areas under components, a 3 mm or pencil-style brush is preferred. Match size to component density.
How often should I replace my PCB brush?
Replace when bristles are frayed, contaminated, or when static dissipation properties degrade (for treated brushes). With proper care, a conductive carbon fiber brush can last hundreds of cleaning cycles.
Technical References
Which bristle material fits this job — Carbon Fiber, Horsehair or Nylon PA?
| Material | Continuous temperature (°C) | Peak temperature (°C) | Water absorption | Hardness |
|---|---|---|---|---|
| Carbon Fiber | 200–350 | 400–500 | ≤0.10% | — |
| Horsehair | 60–80 | 100–120 | 8–15% | — |
| Nylon PA | 93 | 121 | 0.3–9% by PA grade and conditioning | Medium to firm; filament diameter and trim length control bending force. |
| Conductive Nylon | 80–110 | 130–160 | 0.5–2.5% | Shore D 75–88 |
Figures as published by Brushtec / DuPont. Confirm the exact grade against the supplier datasheet before ordering.
