What Is a Nozzle Cleaning Brush?
A nozzle cleaning brush is a small-diameter brush engineered to clean the interior walls of tubes, nozzles, and orifices where conventional brushes cannot reach. Typical working diameters range from 1 mm to 10 mm, with bristle lengths between 50 mm and 300 mm. These brushes are built around a central wire core or plastic rod, holding bristles made of nylon, brass wire, stainless steel wire, or natural fibers. They remove buildup that can cause inconsistent flow, dripping, or spray pattern distortion in cosmetic filling, perfume spraying, and lotion dispensing operations.
For engineering drawing, dimensions, tolerance, thread, fit, and RFQ specification context, this section references ASME — Y14.5 Dimensioning and Tolerancing.
For lockout/tagout and maintenance isolation context, this section references OSHA — 1910.147 Control of Hazardous Energy.
For SI measurement and unit specification context, this section references NIST — Metric SI.
For brush construction terminology, bristle/fill/backing/stem terms, this section references American Brush Manufacturers Association — Brush Lingo.
Common Types of Nozzle Cleaning Brushes
Nozzle cleaning brushes come in several structural designs, each suited to a specific orifice profile or cleaning action:
- Twisted wire tube brushes – The most common; flexible core with bristles wound between twisted wires. Good for straight and slightly curved passages.
- Spiral‑wound brushes – Bristles set in a continuous spiral pattern; excellent for threaded or helical cavities.
- Tip cleaners – Very short, stiff brushes with a pointed tip, often used to declog spray heads and small cosmetic pump nozzles.
- Micro‑brushes – Ultra‑fine, single‑strand brushes for orifices below 2 mm; commonly made with synthetic bristles on a thin wire core.
- Handle‑mounted brushes – Brushes with a looped or straight handle for manual cleaning of filling nozzles that are frequently disassembled.
Comparing Brush Materials and Structures
The performance of a nozzle cleaning brush depends on bristle material, core flexibility, and tip shape. The tables below summarize how these factors influence suitability for cosmetic and small‑orifice cleaning.
Bristle Material Comparison
| Material | Stiffness | Best For | Limitations |
|---|---|---|---|
| Nylon | Soft to medium | Water‑based residue, light oils, food‑grade surfaces; non‑abrasive | Can degrade in strong acids or prolonged alkaline exposure; limited against baked‑on material |
| Brass wire | Medium to firm | Stubborn particulate, dried product in non‑critical stainless steel nozzles | May scratch soft metals or polished surfaces; slight risk of galvanic reaction with stainless in aggressive cleaners |
| Stainless steel wire | Firm to hard | Hardened residue, carbonized buildup, heavy‑duty industrial dispensing | Can score or damage aluminum, plastic, and glass orifices; not recommended for polished cosmetic contact parts |
| Natural fiber (horsehair, tampico) | Soft | Highly polished surfaces, delicate glass or ceramic nozzles, where zero scratching is critical | Absorbs moisture; can swell or harbor bacteria if not dried thoroughly; lower durability |
Brush Structure and Tip Shape Comparison
| Feature | Option | When to Choose |
|---|---|---|
| Core type | Twisted wire | Curved or irregular passages; flexibility required |
| Solid plastic | Straight, short orifices; fixed‑handle applications; no metal contamination risk | |
| Tip shape | Flat end | Through‑holes; uniform cleaning along entire length |
| Pointed end | Blind holes, dead‑end cavities, or tightly clogged spray tips | |
| Spiral / helical | Threaded or spiral‑grooved nozzles; improved debris extraction | |
| Handle / mounting | Loop handle | Manual cleaning; easy to hang and store |
| Straight shank | Insertion into machine‑held adapters or drill chucks for automated cleaning | |
| No handle (bare stem) | Integration into automated brush stations or custom‑built cleaning jigs |

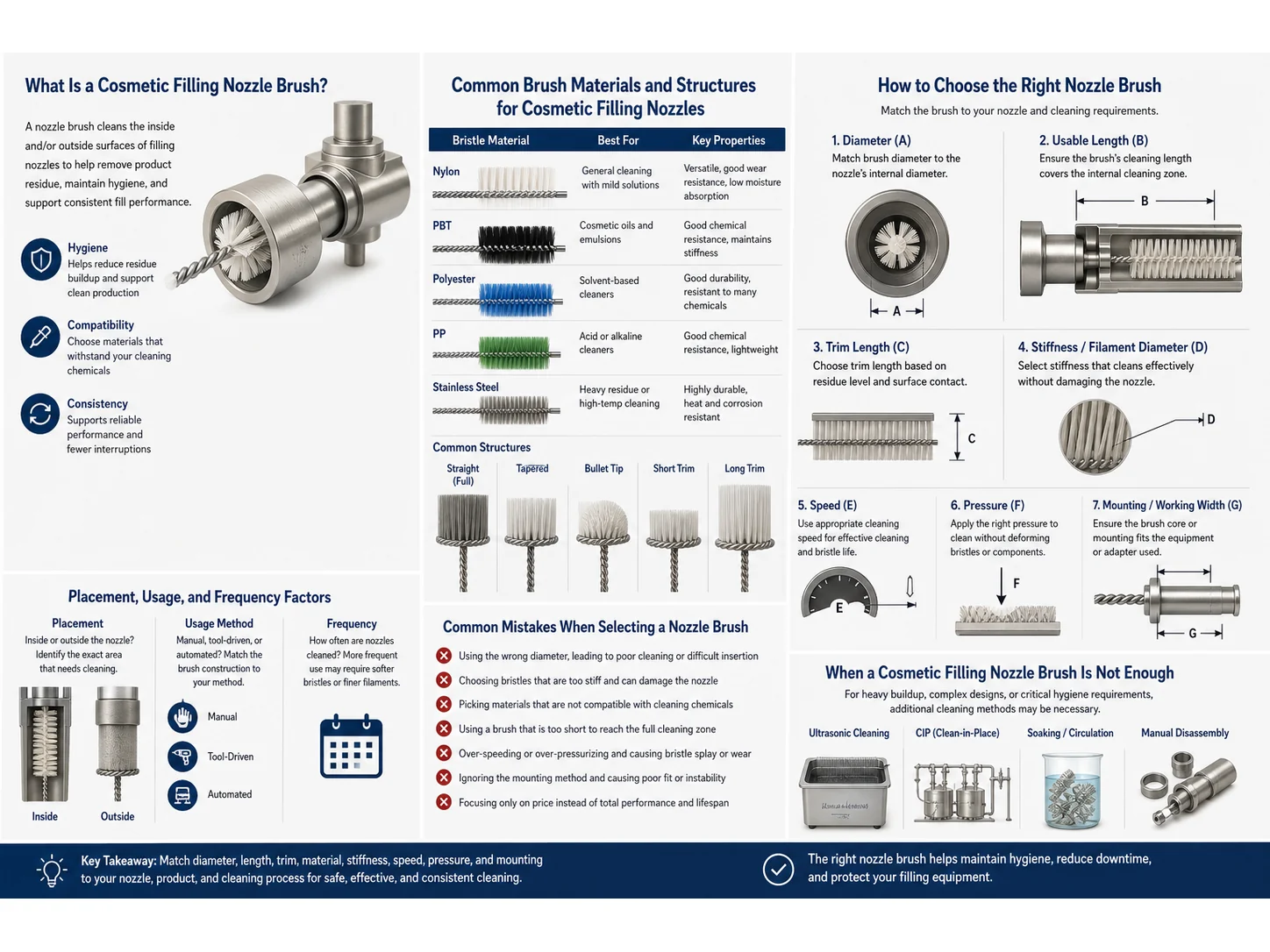

How to Choose the Right Nozzle Cleaning Brush
Use these decision factors to narrow options and avoid common down‑time causes.
- Orifice inner diameter (ID) – Measure the nozzle’s smallest internal bore. Choose a brush diameter that is 0.2–0.5 mm larger than the ID for a gentle interference fit; for very delicate or thin‑walled nozzles, match the diameter exactly or use a soft‑bristle brush.
- Residue type – For water‑soluble creams and lotions, nylon is often sufficient. For stubborn waxes, pigments, or heat‑set makeup, a brass or stainless wire brush may be needed, provided the nozzle material tolerates it.
- Chemical exposure – Verify bristle and core compatibility with cleaning solvents (alcohol, isopropyl, peracetic acid, caustic detergents). Nylon resists many organic solvents; stainless steel handles most chemicals but can be attacked by chlorides at elevated temperatures.
- Bristle stiffness – Soft bristles (nylon, natural fiber) for polished or coated orifices; medium for general maintenance; firm wire bristles for heavy buildup where scratching is acceptable.
- Tip shape – Pointed tips concentrate cleaning force at a single spot—ideal for declogging. Flat tips provide uniform contact for even wear. Spiral tips aid debris lift‑out in blind holes.
- Core flexibility – Select a twisted wire core if the passage curves; use a rigid plastic or thick wire core for straight, short orifices to prevent buckling.
- Mounting – For manual cleaning of a few nozzles per shift, a loop‑handle brush is practical. For automated cleaning cells or frequent disassembly, consider a straight shank or bare stem compatible with your tool holder.
Common Mistakes When Selecting or Using a Nozzle Cleaning Brush
- Oversized brush – Forcing a brush that is too large can crack thin glass or ceramic nozzles and distort soft metal orifices.
- Wrong material pairing – Using a brass brush with stainless nozzles in acidic cleaners may trigger galvanic corrosion; using stainless wire on aluminum nozzles gouges the surface.
- Ignoring chemical compatibility – Nylon bristles can become brittle in hot caustic baths; natural fibers swell and harbor bacteria if not dried.
- Reusing worn brushes – Bristle shedding is a contaminant risk. Replace brushes showing deformed, missing, or kinked bristles immediately.
- One brush for all products – Cross‑contamination between incompatible cosmetic formulations (e.g., oil vs. silicone) can cause residue‐hardening reactions. Dedicate brushes per product family or clean and inspect between batches.
- Aggressive twisting in tight glass or ceramic – Spiraling a wire brush forcefully can generate cracks; use a gentle in‑and‑out motion or switch to a non‑contact method.
When a Nozzle Cleaning Brush Is Not Enough
Manual brushing has limits. Consider alternative or complementary methods when:
- Orifice ID is below 1.5 mm and debris is hardened – A brush may bend or fail to make sufficient contact. Ultrasonic cleaning or pressurized solvent flush can reach those spaces without mechanical stress.
- Sterile or aseptic conditions are required – Even well‑maintained brushes can introduce fibers or microbes. Clean‑in‑place (CIP) or single‑use disposable tips are safer in pharmaceutical‑grade cosmetic filling.
- The nozzle has complex internal geometry (e.g., cross‑drilled holes, internal mixing chambers) – A brush may miss critical surfaces. A cleaning validation study may show that immersion in heated cleaning solution with periodic agitation is more effective.
- Brittle or highly polished surfaces cannot tolerate any contact – If scratching alters product flow or appearance, switch to non‑contact methods such as ultrasound, dry ice blasting, or high‑pressure water micro‑jetting.
- Buildup recurs within hours – Brushing treats symptoms; review the filling temperature, product viscosity, or nozzle material to address the root cause.
Final Takeaway
Selecting a nozzle cleaning brush is a matter of matching the orifice ID plus 0.2–0.5 mm overlap, choosing a bristle material that removes residue without harming the nozzle, and verifying chemical compatibility. For delicate cosmetics where particle shedding or scratching is unacceptable, softer nylon or natural fiber brushes are safer. When mechanical cleaning reaches its limit, explore ultrasonic or pressurized fluid methods to protect both the nozzle and product quality. Regularly inspect brushes for wear, replace them before they fail, and document which brush is used for each product family to prevent cross‑contamination.
Frequently Asked Questions
What size nozzle cleaning brush should I use for a 1.5 mm orifice?
Select a brush with a nominal diameter of 1.7–2.0 mm, provided the nozzle material can handle a light interference fit. For thin-walled or brittle nozzles, start with a 1.5 mm soft nylon brush and increase size only if cleaning is ineffective.
Can I use a brass brush on stainless steel nozzles?
Yes, if you avoid aggressive alkaline or acidic cleaners that promote galvanic corrosion. Brass is softer than stainless and usually safe on work‑hardened stainless, but always test on a scrap nozzle first and inspect for micro‑scratches with a loupe.
How often should I replace a nozzle cleaning brush?
Visually inspect before each use. Replace immediately if bristles appear crushed, missing, or bent more than 15 degrees from the original orientation. In high‑volume cosmetic filling, a brush may last a few shifts; document usage and set a preventive replacement schedule based on visible wear patterns.
Are nozzle cleaning brushes safe for food‑grade cosmetic filling?
Nylon and certain natural‑fiber brushes can be suitable for food‑grade and personal‑care products, provided they are cleaned and sanitized appropriately. Avoid brass or steel brushes where bristle shedding could become a contaminant, unless downstream metal detection is in place.
What is the best way to clean a nozzle cleaning brush itself?
Rinse the brush immediately after use with the same solvent or cleaning solution used for the nozzle. For sanitary applications, follow with an ultrasonic bath or soak in a peracetic acid solution per plant SOP, then rinse with purified water and dry thoroughly.
Can I use a nozzle cleaning brush for 3D printer nozzles?
Yes, but a small brass wire brush with a pointed tip works well for hardened plastic residue. Avoid steel bristles on brass 3D‑printer nozzles to prevent scratching; nylon brushes can melt if the nozzle is still hot, so use them only on cool components.
What if my orifice is too small for even the thinnest brush?
For IDs below 0.8 mm, consider non‑contact methods like an ultrasonic bath with a fine cleaning solution, or a precision syringe flush with filtered solvent. Specialty carbon‑fiber micro‑filaments exist, but they are fragile and may not provide enough cleaning force.
