What Is a PBT Tube Brush?

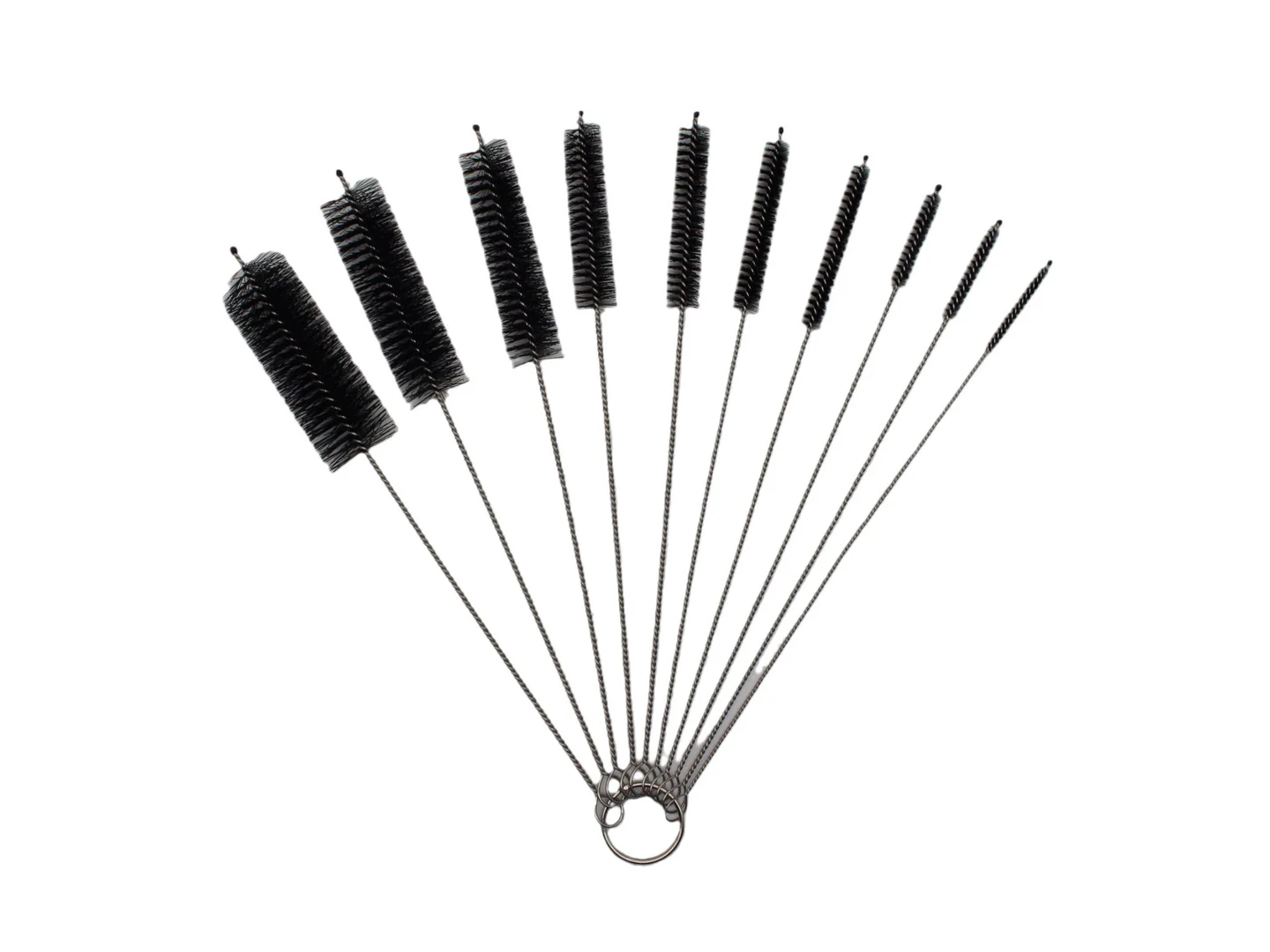

A PBT tube brush is a cleaning tool with a central twisted wire core or a solid holder that secures rows of polybutylene terephthalate (PBT) bristles. PBT bristles are chosen because they resist many industrial fluids, keep their shape in wet and dry environments, and provide enough aggressive cleaning action without being as abrasive as steel. These brushes are used to scrub the inside of tubes, pipes, and bores—removing scale, residue, light corrosion, or process buildup.
For machine guarding and moving-part safety context, this section references OSHA — Machine Guarding.
For lockout/tagout and maintenance isolation context, this section references OSHA — 1910.147 Control of Hazardous Energy.
For engineering drawing, dimensions, tolerance, thread, fit, and RFQ specification context, this section references ASME — Y14.5 Dimensioning and Tolerancing.
For thermoplastic material family and polymer property context, this section references British Plastics Federation — Thermoplastics.
For brush construction terminology, bristle/fill/backing/stem terms, this section references American Brush Manufacturers Association — Brush Lingo.
In production, the same brush may run hundreds of cycles, so its condition directly affects product quality, cycle time, and scrap rates. Maintenance is not just about “when it breaks” but about preserving consistent performance.
Common Maintenance Challenges for PBT Tube Brushes
Five issues regularly reduce PBT tube brush life or cause unexpected cleaning problems:
- Bristle wear and flattening. Repeated contact with tube walls gradually shortens or flattens bristle tips, reducing cleaning diameter and aggressiveness.
- Contamination and clogging. Process debris, hardened soils, or dried chemical residues pack between bristles, making the brush less effective and increasing pressure drop.
- Core deformation. Bent or stretched wire stems cause uneven contact, side-load wear, and can lead to broken cores that scratch the workpiece.
- Chemical attack. Wrong cleaning chemistry can swell, soften, or embrittle PBT bristles, leading to rapid shedding or loss of stiffness.
- Storage damage. Brushes left on dirty surfaces, stacked under weight, or exposed to UV/solvent vapors degrade faster than expected.
Inspection Checklist for PBT Tube Brushes
A consistent visual and touch inspection catches early signs of trouble. Use this checklist at intervals based on throughput—daily, per shift, or after a fixed number of cycles.
| Check Item | What to Look For | What It Means |
|---|---|---|
| Bristle length and shape | Shortened, tapered, or “mushroom” tips | Wear is changing effective cleaning diameter. Measure with a caliper if tolerance is tight. |
| Bristle density and distribution | Gaps, missing bristles, or matted sections | Shedding or chemical softening. Cleaning will be inconsistent. |
| Core straightness | Bend, kink, or twist deviation | Poor alignment causes side loading, uneven wear, and possible core fatigue. |
| Bristle contamination | Hardened deposits, sticky film, or discolored clumps | Cleaning chemistry may be inadequate, or drying cycles insufficient. |
| Attachment point | Cracked or deformed holder, broken lock-in feature | Brush may loosen in machine and cause erratic cleaning or damage. |
| Cleaning result | Streaks, spirals, or unremoved residual film | Either the brush is worn, pressure/speed wrong, or chemistry is failing. |
| Wet/dry condition | Brittle when dry, sticky when wet | PBT degradation or chemical incompatibility. |
Use a simple log to track findings. Sudden changes in brush appearance usually trace back to a process upset, not gradual wear.
How to Decide Between Cleaning, Re-trimming, Adjustment, or Replacement
Not every worn brush needs replacing. Use this decision logic to avoid throwing away usable tools or keeping a brush past its useful point.
| Situation | Action | Why |
|---|---|---|
| Bristles heavily loaded with removable residue, no visible core or bristle damage | Clean with appropriate solvent or detergent, rinse, dry | Restores function without impacting geometry. |
| Bristle tips slightly worn but brush still meets cleaning diameter spec; no shedding | Continue using, increase inspection frequency | Minor wear is normal; replacement would waste remaining service life. |
| Uneven wear pattern, bent core causing one-sided contact | Straighten core if possible, or replace if kinked beyond simple adjustment | Uneven brush causes uneven cleaning, may scratch tube wall or create process variation. |
| Bristle height reduced beyond acceptable cleaning diameter; shedding observed | Retire and replace | Failed bristles cannot hold tolerance and may contaminate product. |
| Chemical softening, swelling, or embrittlement | Replace; review cleaning chemistry | Damaged polymer will not recover; failure is imminent. |
| Core broken or cracked at attachment | Replace immediately | Safety risk and potential equipment damage. |
Re-trimming PBT bristles is rarely practical in production because bristle length is critical to cleaning diameter. If a re-trim option is available, only use it for very light tip straightening, and measure the result carefully.
Cleaning Methods and Chemistry Considerations
How you clean the brush itself is as important as how you use it. PBT bristles resist many chemicals, but some aggressive solvents can swell or embrittle them over time. A basic compatibility test on a worn-out brush before committing to a new cleaning solution is a good idea.
- Water-soluble soils: Warm water with mild detergent, followed by a thorough rinse and low-temperature dry (below 80 °C / 176 °F).
- Oil and grease: Diluted alkaline cleaners or water-based degreasers are often safe; avoid strong chlorinated solvents unless the brush supplier explicitly confirms compatibility.
- Hardened or polymerized residues: Mechanical pre-cleaning (gentle wire brushing or low-pressure water jet) may be needed before chemical soak. Avoid high-temperature acceleration that could soften PBT.
- Acidic or caustic exposure: PBT has reasonable acid resistance but prolonged strong base exposure above pH 12 at elevated temperatures can attack the polymer. Rinse thoroughly after use.
Never leave brushes soaking indefinitely. Extended immersion, especially with elevated temperature, accelerates bristle degradation. A standard operating procedure with defined soak and dry times prevents surprises.
Storage and Handling Best Practices
Many PBT brush problems start not in the machine but in the toolbox or storage shelf.
- Store brushes hanging by the handle or core, not resting on bristles. Weight on bristles causes permanent deformation.
- Keep in a clean, dry area away from direct sunlight, ozone sources, and solvent vapors.
- Separate worn but still usable brushes from new stock clearly; a color-tag system works well.
- Do not mix PBT brushes with metal brushes in the same bin; metal bristles can cut or crush PBT fibers.
- After cleaning, allow brushes to dry completely before storage to prevent microbial growth or wicking of residues into the base of the bristles.
Common Maintenance Mistakes
Even experienced teams make these mistakes:
- Using compressed air to “blow out” a dirty brush at high pressure. This can bend or snap bristles, especially on older brushes. Use low-pressure air or a gentle mechanical comb-out instead.
- Assuming all PBT brushes are the same. Bristle diameter, density, and core material change durability. A brush designed for light finishing will not survive heavy scale removal, and vice versa.
- Relying solely on “brush rotation hours” for replacement. Real wear depends on contact pressure, chemical exposure, soil type, and operator handling. Use inspection-based triggers, not just hours.
- Ignoring process fluid changes. When production switches to a different oil, coolant, or pretreatment chemical, brush material compatibility needs rechecking.
- Skipping documentation. Without a log, it is hard to see whether brush life is drifting or a particular production batch is causing faster wear.
When PBT Brush Maintenance Is Not Enough
Proper maintenance can extend brush life, but it does not fix a fundamentally wrong brush selection or process design. Consider a deeper review when:
- Brushes consistently fail in the same way (e.g., always shedding, always bending at a particular point) despite careful handling.
- Cleaning results are never satisfactory, even with new brushes—this suggests the brush material, bristle abrasive particle load, or size is wrong for the soil or surface finish requirement.
- The machine setup (speed, feed, pressure, travel) causes rapid uneven wear, and simple parameter adjustments do not improve it.
- Chemical attack is suspected, and changing the cleaning solution is not feasible—a different brush material (such as nylon, polypropylene, or natural fiber) might be necessary.
In these cases, involve the brush supplier or a process engineer to review the whole cleaning or finishing cell, not just the brush handling procedure.
Final Takeaway
Maintaining PBT tube brushes in production is about structured inspection, prompt cleaning, and making level-headed replacement decisions. A checklist removes guesswork. Understanding the limits of PBT bristles—especially in relation to temperature, chemicals, and mechanical stress—prevents using maintenance to compensate for a process design problem. When the basics are right, a well-cared-for PBT tube brush delivers repeatable cleaning results, predictable consumption, and fewer production stops.
Frequently Asked Questions
How can I tell if PBT bristles are chemically damaged?
Signs include softening (bristles feel gummy or easily bent), swelling (diameter increases), embrittlement (bristles snap when bent), or color change after cleaning. Always compare to a new brush of the same type.
What is a safe way to dry PBT tube brushes after cleaning?
Air drying at room temperature is safest. If you use heat, keep it below 80 °C (176 °F) and avoid direct contact with hot surfaces. Forced convection drying at moderate temperatures speeds up the process without damaging bristles.
Can I use the same cleaning solvent for the brush and the tubes?
Often yes, but test first. Some strong solvents used to clean tubes (e.g., high-concentration caustic or chlorinated agents) can degrade PBT over time. Check with the brush supplier or run a soak test on an old brush.
How often should I inspect production PBT tube brushes?
Start with a daily or per-shift visual check, and log findings. If brushes last weeks, reduce frequency to at least once per production run. If wear is rapid, increase checks to catch problems before they cause rework.
What is the best way to store brushes used infrequently?
Clean and completely dry them first, then hang or place in a compartmented rack with bristles free from contact. Label the storage location with brush type and last inspection date. Keep away from heat sources and chemical fumes.
Is it normal for PBT bristles to shed a little over time?
Minor, progressive loss is normal as the brush ages, but sudden shedding or large clumps indicate a problem—too high contact pressure, chemical attack, or a manufacturing defect in that batch. If shedding accelerates, retire the brush and investigate.
Should I re-trim PBT bristles to extend brush life?
Re-trimming is usually not cost-effective in production because it changes the cleaning diameter and can leave uneven tips. If you try it, use a fixture to ensure uniform length and verify results with a test piece before returning the brush to service.
When is a chiller tube brush machine or tube brush machine a better choice than manual brushing?
For high-volume or deep tubes, powered machines provide consistent speed and pressure that manual operation cannot match. They also reduce operator fatigue. However, poorly maintained machine chucks or misaligned drives can damage brushes faster than careful manual use. Evaluate based on tube length, production volume, and required finish consistency.
