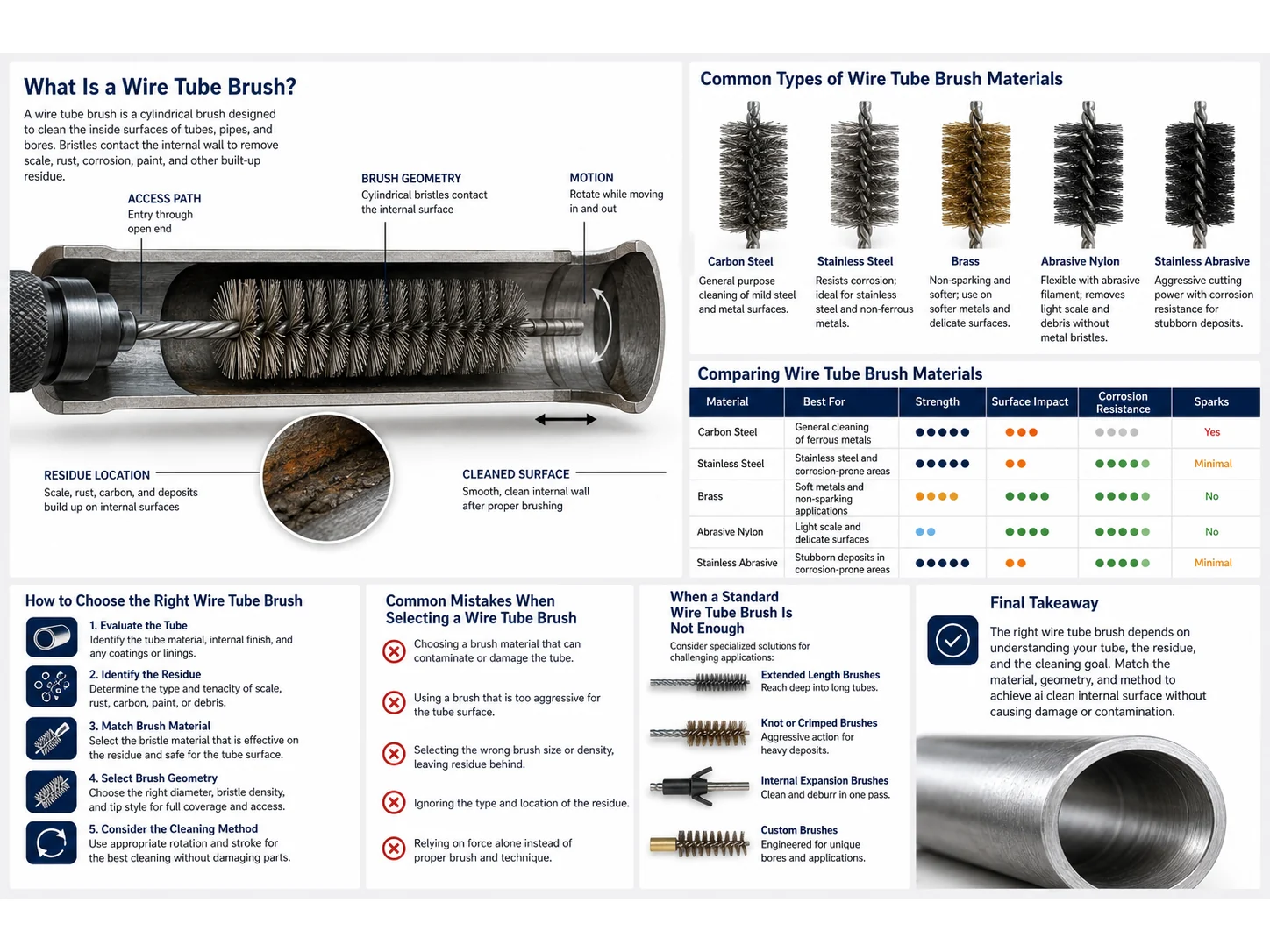

What Is a Condenser Tube Brush?
A condenser tube brush is a cylindrical cleaning tool with bristles anchored into a central core, typically made by twisting wire around the bristles or molding them into a spiral pattern. Its primary function is to scrub the inside diameter (ID) of tubes in condensers, chillers, boilers, and other shell-and-tube heat exchangers. Unlike generic pipe brushes, condenser tube brushes are designed to balance aggressive cleaning with tube protection, and they come in standardized diameters and lengths to fit common tube sizes.
For boilers, chillers, cooling towers, condenser systems, heat-exchanger maintenance, and O&M practices, this article cites U.S. Department of Energy FEMP — Operations & Maintenance Best Practices: A Guide to Achieving Operational Efficiency, Release 3.0; boiler, chiller, cooling tower, and heat-exchanger maintenance chapters.
For HVAC filters, coils, fins, condenser coils, condensate drains, and AC maintenance, this article references U.S. Department of Energy — Air Conditioner Maintenance.
For engineering drawings, GD&T, dimensions, tolerances, model/drawing requirements, and RFQ dimension control, this article references ASME — Y14.5 Dimensioning and Tolerancing.
For lockout/tagout standard during machine servicing, this article references OSHA — 1910.147 Control of Hazardous Energy.
For brush construction terminology, filament/backing/stem terms, this article references American Brush Manufacturers Association — Brush Lingo.
Common Brush Structures
- Twisted-in-wire (single stem): Bristles are clamped between folded wire and twisted. Simple, cost-effective, good for light to moderate fouling.
- Spiral wound (single or double stem): Bristles are wound in a continuous spiral around a central shaft. Provides more aggressive cleaning and better contact on uneven surfaces.
- Double spiral double stem: Two spiral brushes arranged back-to-back for heavy-duty scale removal and thorough cleaning in one pass.
- Full fill: Bristles packed to maximum density for polishing, deburring, or fine cleaning after aggressive descaling.
- Custom configurations: Non-standard diameters, extra-long lengths, flexible shafts, or combination bristle materials designed for unique tube geometries or residue types.
Bristle Options and Their Uses
| Bristle Material | Best For | Limitations |
|---|---|---|
| Nylon (standard) | Light fouling, soft sludge, general maintenance on copper, brass, or stainless tubes | Not effective on hard scale or baked-on deposits |
| Abrasive nylon (silicon carbide or aluminum oxide grit) | Moderate scale, surface conditioning, removing light rust | Can wear tube surface if overused; not for soft metals at high speeds |
| Steel wire (carbon or stainless) | Heavy rust, hard water scale, baked-on carbon deposits | May scratch soft metals like copper or aluminum; risk of sparking |
| Brass wire | Moderate deposits where non-sparking is required, softer than steel | Less aggressive; wears faster than steel |
| Combination (e.g., nylon/steel mix) | Multi-step cleaning in one pass: pre-scrub and polish | More complex to specify; may compromise individual aggressiveness |
Mounting Methods and Drive Interfaces
The brush end connection must match your cleaning driver. Common options:
- Straight solid shank: Inserted into a drill chuck or collet. Typical diameters 1/4″ or 6 mm.
- Looped end (eyelet): Allows manual pull-through cleaning with a rope or rod.
- Threaded shank: NPT or metric threads for attaching to extension rods or rotary machines.
- Hex shank: Prevents slippage in high-torque applications like electric drills.
- Quick-connect adapters: For rapid brush changes with compatible cleaning systems.
Powered cleaning (electric or pneumatic drill) requires a shank that fits the chuck and withstands torque. Manual cleaning often uses looped ends or threaded extensions for push-pull action.
How to Choose the Right Brush Size
Two critical dimensions: brush overall diameter (OD) and overall length (OAL). As a rule of thumb, the brush OD should be 1/16″ to 1/8″ larger than the tube ID for proper bristle compression and contact pressure. For a ½-inch ID tube, this often means selecting a brush with an OD between 9/16″ and 5/8″ (commonly called a ½-inch tube brush). For heavily fouled tubes, go toward the larger end of the range. The brush length should be at least 1.5 times the tube diameter to ensure adequate cleaning coverage per pass; a length of 2 to 3 diameters is more common for thorough cleaning.
Always measure your actual tube ID with a caliper – nominal sizes can differ from true inside diameters, especially in older or metric equipment. Do not rely on nominal pipe size alone.
Key Factors for Selection
| Factor | What to Evaluate | Recommendation |
|---|---|---|
| Tube material | Copper, brass, stainless steel, titanium, cupronickel | Use softer bristles (nylon, brass) on soft metals; steel only on hard metals like stainless |
| Fouling type | Soft sludge, hard scale, biological film, corrosion deposits | Match bristle aggressiveness: nylon for soft, abrasive nylon for moderate, steel for hard scale |
| Cleaning method | Manual pull-through vs. powered rotary | Powered cleaning benefits from spiral wound designs and shanks that fit high-speed chucks; manual favors looped ends |
| Tube accessibility | Straight tubes, U-bends, or tight spaces | Flexible shaft brushes for bent tubes; standard rigid for straight runs |
| Replacement cycle | How often bristles wear down or break | Stock fewer types if replacing frequently; invest in durable materials for high-production environments |
| Chemical exposure | Acidic or alkaline cleaning solutions | Nylon resists many chemicals; steel may corrode if not stainless |
Typical Operating Conditions That Affect Choice
- Wet or dry cleaning: Wet cleaning often allows finer bristles; dry cleaning may require stiffer bristles to break deposits.
- Temperature: High-temperature tubes may demand heat-resistant bristle material (e.g., nylon 6/6 for continuous heat).
- Frequency: High-frequency cleaning programs benefit from quick-connect mounts and standardized brush sizes to speed up changeovers.
- Tube length and layout: Long tubes need longer brush bodies or extension rods; baffled tubes may call for shorter, segmented brushes.
Common Mistakes When Choosing a Tube Brush
- Undersizing the brush diameter: A brush that fits loosely leaves residue and requires multiple passes.
- Using steel on soft metals: Steel bristles can gouge copper, brass, or aluminum, leading to leaks or reduced tube life.
- Ignoring bristle length: Short bristles wear out quickly and fail to conform to slight tube imperfections.
- Wrong shank type: A shank that does not fit your drill or cleaning machine causes downtime or unsafe operation.
- One-brush-fits-all mindset: Using the same brush for multiple tube sizes or fouling types leads to poor results and possible damage.
When a Standard Brush Is Not Enough
Standard off-the-shelf brushes cover most maintenance needs, but special cases justify a custom design or sampling program:
- Heavily pitted or corroded tubes: Require brush profiles that adapt to irregular surfaces without catching.
- Severe mineral scale (silica, calcium sulfate): May need layered bristle configurations or dual-action brushes.
- Tubes with tight bends: Off-the-shelf rigid brushes cannot navigate; flexible or articulated brushes are needed.
- Food, pharmaceutical, or high-purity applications: Often require supported by food-contact documentation materials, fill densities, or cleanroom packaging that generic brushes do not offer.
If your tube dimensions, residue, or operating constraints fall outside typical ranges, request a sample run or engineering drawing from a brush manufacturer. Starting with a drawing ensures the brush fits correctly and meets your cleaning objectives without trial-and-error damage.
Final Takeaway
Select a condenser tube brush by first measuring the exact tube ID and determining the tube material. Identify the primary fouling type, then match brush structure and bristle aggressiveness accordingly. Choose a shank style that works with your cleaning driver, and always keep a few spares to avoid production delays. Start with a standard configuration and move to a custom solution only when necessary.
Frequently Asked Questions
What is the difference between a condenser tube brush and a regular pipe brush?
A regular pipe brush may have a random bristle fill and inconsistent core, while a condenser tube brush is manufactured to precise diameters and bristle densities for heat exchanger tubes. Condenser brushes often use materials compatible with thin-walled metal tubes to prevent scratching.
Can I use the same brush for boiler tubes and condenser tubes?
It depends on the tube material and fouling type. Boiler tubes often see higher temperatures and harder mineral scale, requiring steel or abrasive bristles. Condenser tubes frequently use softer metals like copper alloys, so nylon or brass brushes are safer. Always match the brush to the tube metallurgy and deposit type.
How do I measure my tube to select the correct brush size?
Use a digital caliper to measure the inside diameter of a clean tube sample. Measure in several spots to account for ovality. The brush OD should be about 1/16″ to 1/8″ larger than your measured ID. For heavily fouled tubes, lean toward the larger end.
What bristle material is safest for copper-nickel condenser tubes?
Nylon or brass bristles are typically safest. Avoid steel wire unless the tube metallurgy specifically permits it and the fouling is extremely hard. When in doubt, start with nylon and move to slightly more aggressive abrasive nylon if needed.
How often should I replace my tube brush?
Replace the brush when bristles become permanently deformed, bristle length reduces by more than 30%, or cleaning efficiency drops noticeably. In high-production plants, brushes may last hundreds of tubes, but always inspect after each shift.
Can I order a custom-sized brush if my tube diameter is non-standard?
Yes, many brush manufacturers produce custom brushes to your drawing or sample. Provide the exact tube ID, length, material, and fouling description. Custom brushes often require a project quantity requirement and longer production schedules, so plan accordingly.
What’s the difference between a twisted-in-wire and a spiral wound brush?
A twisted-in-wire brush has bristles clamped linearly along a folded wire, creating a relatively uniform fill. A spiral wound brush has bristles set in a continuous helical pattern, offering more aggressive cleaning and better debris transport along the tube.
Do I need a special driver for rotary tube cleaning brushes?
A standard electric or pneumatic drill with a chuck that fits the brush shank (usually 1/4″ hex or round) works for most applications. For high-production cleaning, dedicated tube cleaning machines with quick-change adapters and torque control are recommended to speed up work and protect tubes.
