What Is a Die Casting Mold Cleaning Brush?
A die casting mold cleaning brush is a bristle tool designed to clean metallic and non‑metallic deposits from die casting molds without damaging precision surfaces. Unlike general-purpose brushes, these are selected for their bristle material, density, diameter, and mounting style to match the specific cleaning method—manual, pneumatic, or automated—and the mold’s geometry.
Common Types of Mold Cleaning Brushes
For material-selection language, this section is supported by World Stainless — Corrosion Resistance of Stainless Steels.
For brush terminology and construction language, this section references American Brush Manufacturers Association — Brush Lingo.
For dimension and measurement language, NIST — Metric SI supports the use of consistent SI/metric specifications.
Mold cleaning brushes come in several structures, each suited to different cleaning tasks:
- Twisted wire brushes – heavy‑duty removal of hard carbon and scale; available in wheel, cup, and tube shapes.
- Cup brushes – clean flat mold faces, parting lines, and ejector plates.
- Roller brushes – used in automated conveyor‑fed cleaning systems for large mold components.
- Tube / bore brushes – clean internal cooling channels, ejector pin bores, and small-diameter holes.
- Flexible shaft brushes – reach into complex internal cavities and curved passages.
Comparing Brush Structures, Bristles, and Mounting
The table below compares key brush types by structure, bristle material, mounting interface, and typical use. Use it as a starting point to match your mold cleaning challenge.
| Brush Type | Bristle Material | Typical Mounting | Best For | Considerations |
|---|---|---|---|---|
| Twisted wire brush | Steel, brass, or stainless steel wire | ¼ in. hex shank or threaded stud | Heavy rust, scale, and hard carbon in open areas | Aggressive; risk of scratching precision surfaces |
| Cup brush | Steel wire or abrasive nylon | Threaded arbor (5/8–11 UNC) or quick‑change | Flat mold faces, parting lines, large surfaces | Match rpm to tool; avoid contact with soft substrates |
| Roller brush | Polypropylene, nylon, horsehair, or abrasive‑nylon | Shaft extension or bearing‑mounted for continuous rotation | Automated cleaning of wide mold surfaces; wet cleaning environments | Excellent with chemical cleaners; choose filament for temperature range |
| Tube / bore brush | Nylon, brass wire, or stainless steel wire | Loop handle, fixed rod, or machine‑collet | Internal holes, cooling channels, ejector pin bores | Diameter must match bore; use non‑sparking options if needed |
| Flexible shaft brush | Abrasive nylon or stainless steel | Flexible shaft with drive coupling | Complex internal cavities, curved passages, deep ribs | Requires speed control; check shaft length and flexibility |
How to Choose the Right Brush
Selection depends on five practical factors. Work through each to narrow down the options:
1. Equipment Interface and Mounting
Start with the machine or tool that will hold the brush. Check the shank type (round, hex), diameter (common ¼ in., 6 mm, 8 mm), threading (UNC, metric), or collet system. Mismatched mounting leads to vibration, slippage, or operator injury.
2. Contact Surface and Mold Geometry
Identify the surfaces you need to clean: flat platens, deep cavities, narrow slots, cooling channels, or ejector pin holes. A cup brush works well on flat areas, while a tube brush is essential for bores. If the mold has intricate features, a flexible shaft brush may be the only way to reach them.
3. Residue Type
Aluminum smut and lubricant require different bristle stiffness and material. Hard carbon or scale may need a steel wire brush, but that risks scratching soft mold steels. For delicate surfaces, abrasive nylon or brass wire can remove deposits without substrate damage. Always test on a non‑critical area first.
4. Operating Environment

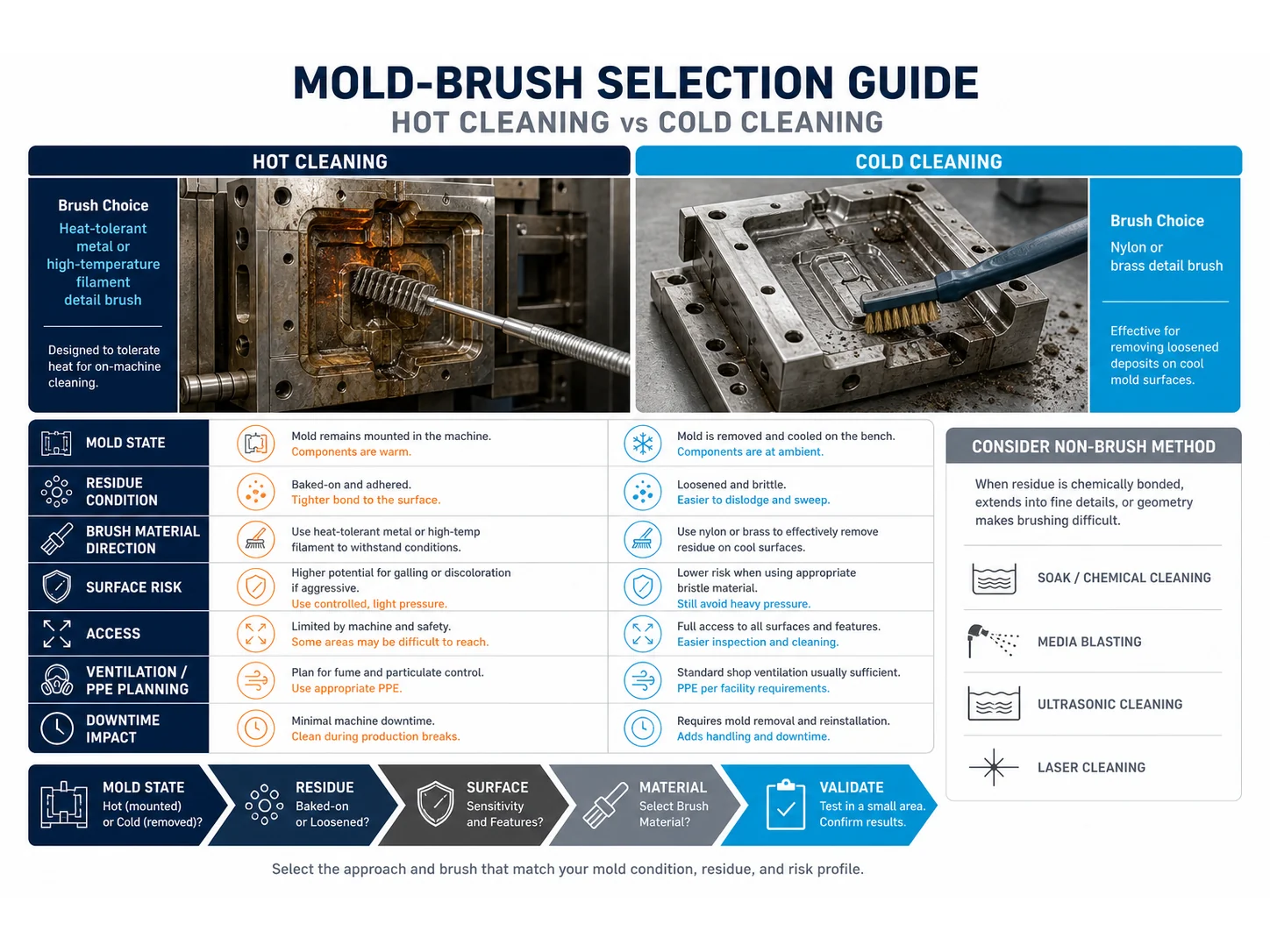

If the brush is used in an automated cell with coolant or cleaning chemicals, choose materials that resist corrosion and chemical attack. For high‑temperature cleaning (e.g., hot molds just after casting), ensure the bristle material and adhesive can withstand the heat. Standard nylon may not survive above 200°F.
5. Replacement Cycle and Durability
Budget for brush replacement as a consumable. Worn brushes lose cleaning efficacy and can become a source of contamination. A brush with better filament retention and a sturdy core may have a longer life, but avoid over‑specifying—a moderately priced brush replaced regularly is often better than a premium brush used past its life.
Common Mistakes When Selecting a Mold Cleaning Brush
- Choosing by cost alone – low-cost brushes may shed bristles, leaving debris inside the mold.
- Ignoring bristle material compatibility – steel wire on polished tool steel will cause scratches.
- Mismatched mounting – a threaded brush in a quick‑change chuck or vice versa wastes time and can be unsafe.
- Using the same brush for all residues – a brush that removes lubricant may not handle hard carbon; you often need at least two types.
- Neglecting wear – a brush that has lost its trim length and stiffness will not clean effectively and may burnish contaminants into the mold surface.
- Disregarding chemical compatibility – alkaline cleaning agents can degrade natural fibers like horsehair, while solvents may attack certain nylon types.
When a Standard Brush Is Not Enough
Mass‑produced brushes fit many applications, but some die casting molds demand more. If your mold has critical surface finishes (SPI/SPE A‑1, mirror polish), extremely tight tolerances (±0.001 in.), or unusual internal geometries that a stock tube brush cannot follow, a standard brush can do more harm than good. In these cases, a custom brush designed from a drawing or a physical sample of the mold cavity is necessary. Custom brushes can specify filament type, trim length, density, and overall shape to clean without damaging. Do not force an off‑the‑shelf solution when the risk of mold damage is high.
Final Takeaway
Start by defining the cleaning task: residue, surface finish, access, and machine interface. Use the comparison table to identify one or two brush types that match. Check the mounting shank and bristle material against your tool holder and mold material. Keep brushes on a replacement schedule, and do not hesitate to order a custom brush for complex, high‑value molds. A correctly chosen brush reduces cleaning time, protects mold life, and improves casting quality.
Practical Use Note
In daily use, the practical test is simple: check whether the brush reaches the full contact area, removes the target residue, and leaves the surface in the required condition. Record what changes when access, residue type, surface sensitivity, brush stiffness, operating environment, and replacement routine changes, because many brush failures are caused by the working condition shifting rather than by the brush body alone.
Frequently Asked Questions
Can I use the same brush for aluminum and steel molds?
Not always. Aluminum molds are softer and can be scratched by steel wire brushes. Use brass or abrasive nylon for aluminum; steel wire may be acceptable only for heavily scaled steel molds if the surface finish allows.
What bristle material is safest for polished tool steel?
Abrasive nylon with a fine grit or natural fiber (e.g., horsehair) is generally safe. Always test on a hidden area first. Avoid steel wire unless the mold surface can tolerate it.
How do I determine the correct brush diameter for a cooling channel?
Measure the minor diameter of the channel, then select a brush 0.001–0.003 in. larger to ensure contact without jamming. If the channel has bends, a flexible brush is required.
Can standard brushes handle high‑temperature mold cleaning?
Most standard nylon brushes have a continuous service temperature around 180–200°F. For cleaning hot molds (300°F or higher), specify brushes with heat‑resistant filaments like nomex or stainless steel wire.
When should I switch from a manual brush to an automated brush system?
Consider automation when cleaning time exceeds 15–20% of mold changeover time, or when consistency of manual cleaning is poor. Roller brushes integrated into a cleaning station can improve cycle time and uniformity.
How often should I replace a mold cleaning brush?
Replace when bristle trim length has worn by 20–30%, or when cleaning takes noticeably longer. A visual check during each use is a good practice; set a maximum cycle count based on your own data.
What if my mold has many small, deep cavities?
A series of tube brushes in graduated diameters combined with a flexible shaft brush for hard‑to‑reach areas is often the best approach. Consider a custom set if standard sizes do not reach every corner.
Do I need different brushes for lubricant residue vs. aluminum buildup?
Yes. Soft, absorbent filaments (e.g., polypropylene) work well for oil‑based residues, while stiffer, abrasive‑grit‑impregnated or wire brushes are needed for aluminum smut. Using the wrong brush can smear contaminants rather than remove them.
