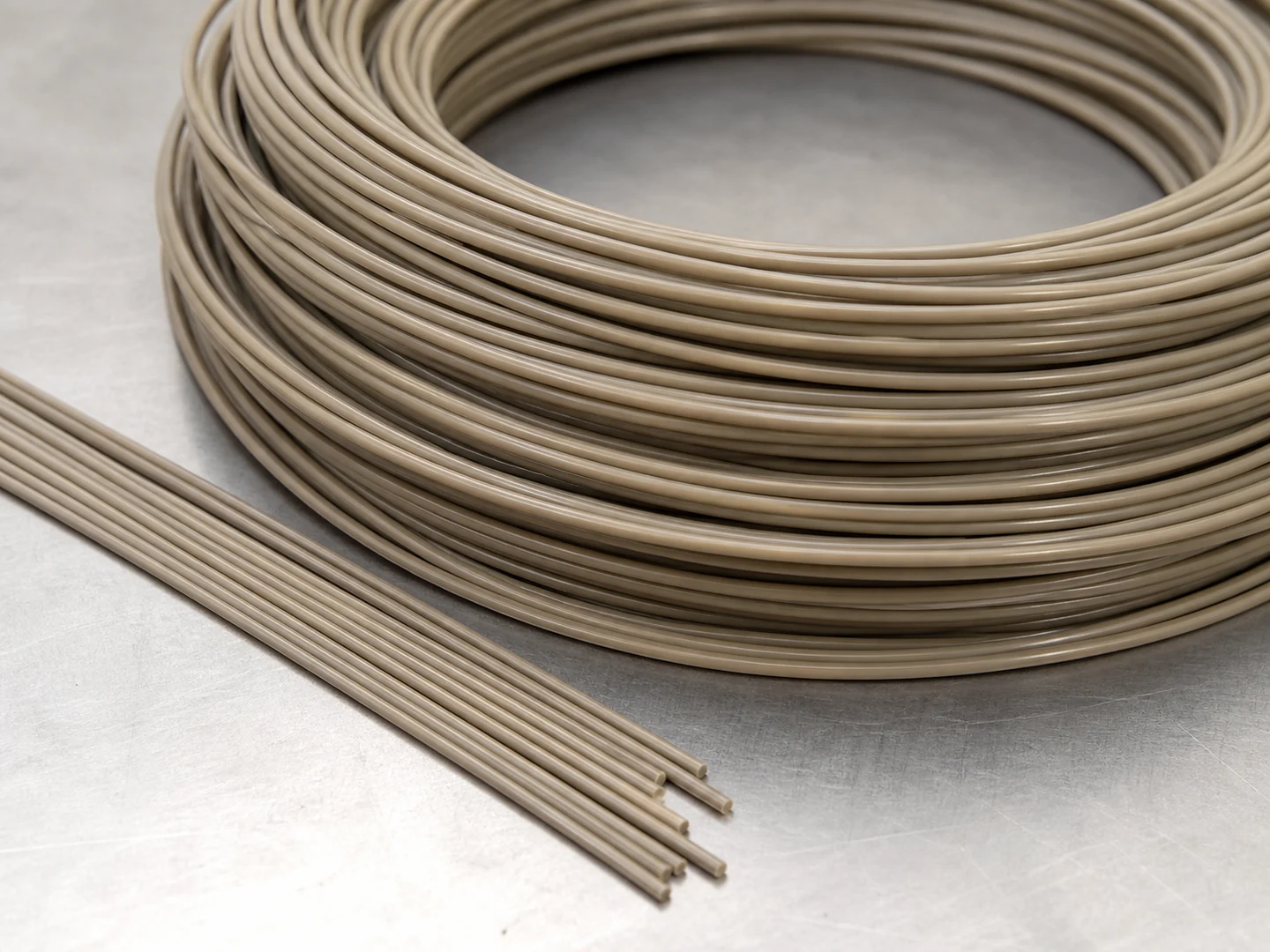

PPS Filament

In the high-performance polymer filament family, PPS Filament is specified, supplied as filament, drawn in round, rectangular and hollow sections and set in straight rows, helical, staggered and zoned fill patterns.

PPS Filament is used in custom cleaning brushes for hot chemical-process rollers, strip brushes and tube brushes that need dimensional stability beyond nylon or polyester.

It is usually weighed against Nylon PA, PBT and PET Polyester, and the deciding difference is moisture uptake and working temperature rather than anything you can read off the name.

Compare PPS Filament with Nylon, PBT, PET. Change material when wet stiffness, temperature, chemical resistance, conductivity, particle shedding, or surface marking becomes the limiting factor.

PPS Filament is medium to firm; filament diameter and trim length control bending force, and PPS Filament changes brush stiffness through filament diameter, free trim, density, crimp, and contact. Use finer filament and longer trim for conformable contact; use coarser filament, shorter trim, or higher density for stronger displacement or cutting.

Filament-level figures for this grade and the ones it is usually compared to. A finished brush behaves differently again.

The part people get wrong: the same grade can feel soft or aggressive depending on diameter, trim and density. Specify that geometry before the material, or the sample will surprise you.

PPS Filament takes up ≤0.05% (24h, ISO 62/ASTM D570).

Very low moisture uptake is reported for engineering PPS grades; confirm the actual filament grade and conditioning method.

What this means for your application: it barely absorbs water, so dry and wet contact pressure are effectively the same and the brush behaves alike on both duties.

A practical check: soak a sample for an hour and re-measure the trim. If it has moved enough to change the contact band, the grade is wrong for the duty.

PPS is a high-temperature polymer, but resin or stock-shape service ratings are not automatically a filament or finished-brush rating. For example, Ensinger lists 230°C long-term service for specific TECATRON PPS grades; confirm the actual filament grade and brush assembly.

Design to that answer rather than to a raw-material datasheet figure: a brush rating already accounts for filament working under load rather than raw polymer sitting in an oven.

Published melting point is about 280°C for representative PPS grades; this is not a continuous brush-service limit. That is a material property, not an operating ceiling, and using it to justify a hot wash is the fastest way to ruin a brush.

Where it stops working: validate with a sample if the process sits near the top of that band. A permanent bend under load means the answer is a higher-temperature filament family, not a heavier trim.

The usable limit also moves with diameter, trim and contact pressure. A fine filament under light load tolerates more than a thick one under heavy scrubbing.

PPS is broadly chemical resistant, but do not treat that as universal. Check the selected grade against the exact chemical, concentration, temperature, exposure time and mechanical load.

The same cleaner can be harmless or destructive depending on how strong it is, how hot it runs and how long it sits. Quote the concentration and the dwell time, not just the product name.

Before you commit to a quantity: Specify the exact PPS Filament grade or alloy, filament or profile size, color, straight or crimped form, working temperature, wet or dry use, chemical exposure, surface finish, and any required material documentation.

About 0.05 mm. Below that the filament turns fragile and breaks under ordinary contact pressure, so 0.05–1.20 mm is the working range.

Free trim runs 3–150 mm, and the two interact: a finer filament needs a shorter trim to keep useful stiffness, while a thicker one carries a longer trim and still lands pressure on the tip.

Split the range by duty: roughly 0.05–0.34 mm for light wiping, dusting and surfaces that mark easily, and 0.34–1.20 mm where residue is packed on and point pressure matters more than surface risk.

Tip treatments available on this filament: end rounding, plasma treatment, conductive filling and ptfe coating.

In practical brush terms: reaching deep into a bore or crevice is a diameter problem before it is a length problem. A thicker filament on a moderate trim pushes further in before the tips fold over.

Hot chemical-process rollers, strip brushes and tube brushes that need dimensional stability beyond nylon or polyester.

Where it turns up in practice:

• Industrial Machine Cleaning
• Conveyor Belt Cleaning
• Screen & Sieve Cleaning
• Brick, Tile & Building Material Machine Brush Use

It is normally set into these constructions:

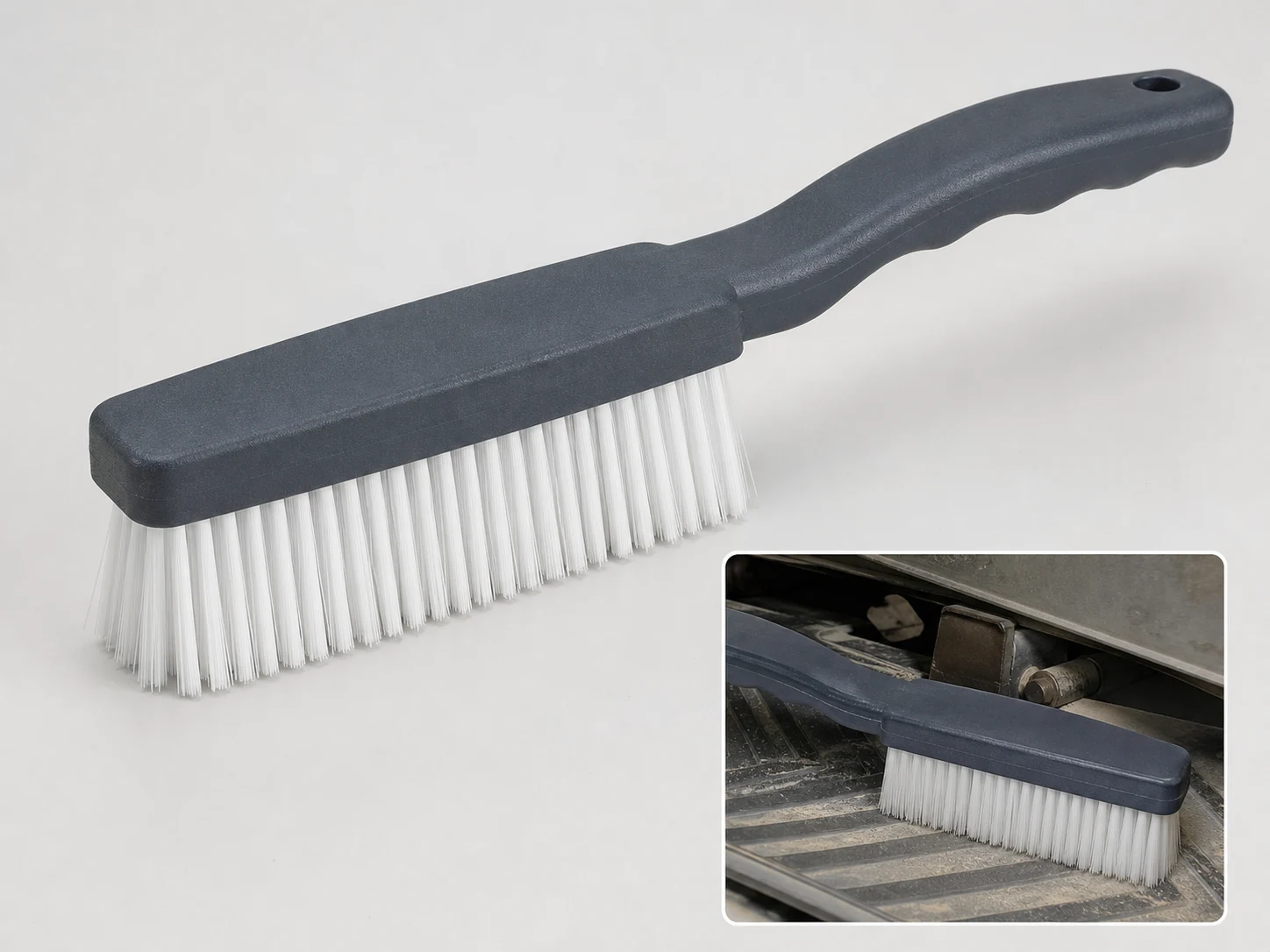

• Custom Handheld Detail Brushes

If the sample comes back rejected: PPS carries a higher material cost than general-purpose filament and is unnecessary where moderate-temperature nylon, PBT or PP already meets the duty.

A usable specification carries the construction, the filament diameter and free trim, the density and contact setting, and the service conditions: wet or dry, temperature, and what the cleaner actually is.

The mistakes that most often send a sample back:

• Selecting PPS Filament from the material name alone without setting filament diameter, trim length, and density
• Using dry stiffness to predict wet behavior without checking moisture absorption or liquid exposure
• Ignoring trapped abrasive particles, chemical concentration, temperature, or contact motion when assessing surface risk

Reference standards behind the figures on this page: ISO 527-1:2019; ASTM D638; ISO 62:2008; ASTM D570-22; ISO 868:2003; ASTM D2240-15(2021); ISO 4892-3:2024; ASTM G154-23; UL 94.

Source: Celanese — Fortron polyphenylene sulfide. PPS grades differ widely in long-term service rating, and a filament in a brush is loaded while it is hot. Take the grade-specific figure from the filament supplier rather than from the polymer family.
