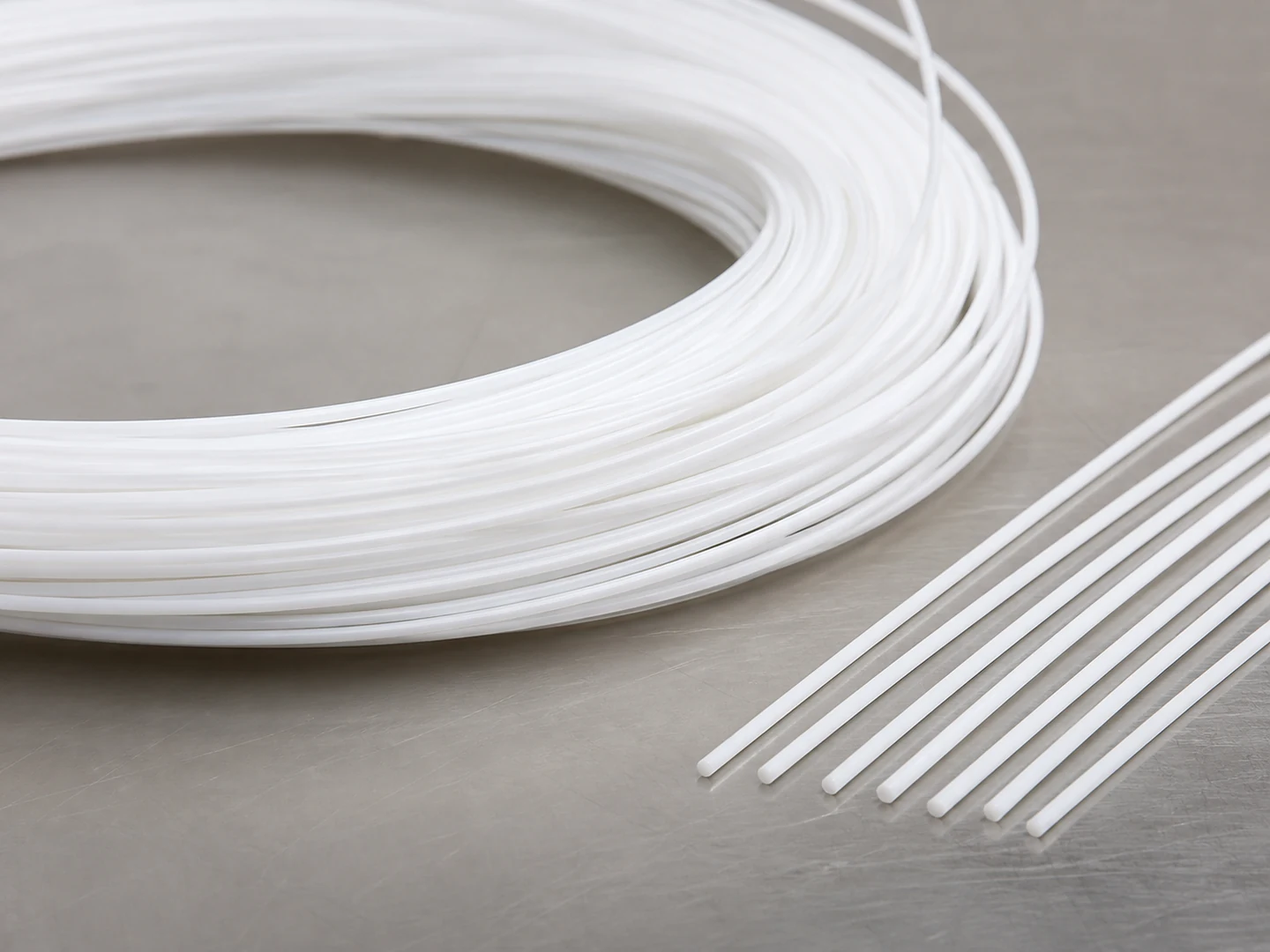

PTFE Filament

PTFE Filament belongs to the fluoropolymer filament group, supplied as filament, drawn in round, rectangular and hollow sections and set in straight rows, helical, staggered and zoned fill patterns.

PTFE Filament is used in custom cleaning brushes for chemical-process, laboratory and specialty cleaning where low friction and broad chemical resistance outweigh cutting action.

The realistic alternatives are Nylon PA, PBT and AISI 304 Stainless Steel Wire. What separates them here is moisture uptake and working temperature, not headline strength.

Compare PTFE Filament with Nylon, PBT, stainless steel. Change material when wet stiffness, temperature, chemical resistance, conductivity, particle shedding, or surface marking becomes the limiting factor.

PTFE Filament is medium to firm; filament diameter and trim length control bending force, and PTFE Filament changes brush stiffness through filament diameter, free trim, density, crimp, and contact. Use finer filament and longer trim for conformable contact; use coarser filament, shorter trim, or higher density for stronger displacement or cutting.

Published ranges for the filament itself. Read them as a shortlist tool, not as brush performance.

The part people get wrong: stiffness is not a property of the material on its own. A 0.50 mm filament on a 15 mm trim is stiffer than a 0.30 mm filament on a 25 mm trim in the same grade. Fix diameter and trim first, then confirm the material.

PTFE Filament takes up ≤0.01% (24h, ISO 62/ASTM D570).

Very low water absorption and stable wet performance.

What this means for your application: it barely absorbs water, so dry and wet contact pressure are effectively the same and the brush behaves alike on both duties.

A practical check: soak a sample for an hour and re-measure the trim. If it has moved enough to change the contact band, the grade is wrong for the duty.

Continuous service temperature up to 260°C for the cited PTFE grade; confirm that the actual brush filament and holder/binder are rated for the same service.

Design to that answer rather than to a raw-material datasheet figure: a brush rating already accounts for filament working under load rather than raw polymer sitting in an oven.

Published melting point is 327°C. That is a material property, not an operating ceiling, and using it to justify a hot wash is the fastest way to ruin a brush.

Where it stops working: validate with a sample if the process sits near the top of that band. If the filament takes a permanent set under load, step up to AISI 304 Stainless Steel Wire, which hold a higher continuous temperature.

The usable limit also moves with diameter, trim and contact pressure. A fine filament under light load tolerates more than a thick one under heavy scrubbing.

Excellent resistance to acids, alkalis, oils, fuels and cleaning solvents.

The same cleaner can be harmless or destructive depending on how strong it is, how hot it runs and how long it sits. Quote the concentration and the dwell time, not just the product name.

Before you commit to a quantity: Specify the exact PTFE Filament grade or alloy, filament or profile size, color, straight or crimped form, working temperature, wet or dry use, chemical exposure, surface finish, and any required material documentation.

About 0.05 mm. Below that the filament turns fragile and breaks under ordinary contact pressure, so 0.05–2.00 mm is the working range.

Free trim runs 5–200 mm, and the two interact: a finer filament needs a shorter trim to keep useful stiffness, while a thicker one carries a longer trim and still lands pressure on the tip.

Split the range by duty: roughly 0.05–0.54 mm for light wiping, dusting and surfaces that mark easily, and 0.54–2.00 mm where residue is packed on and point pressure matters more than surface risk.

Tip treatments available on this filament: end rounding, chemical etching, plasma treatment and conductive filling.

In practical brush terms: reaching deep into a bore or crevice is a diameter problem before it is a length problem. A thicker filament on a moderate trim pushes further in before the tips fold over.

Chemical-process, laboratory and specialty cleaning where low friction and broad chemical resistance outweigh cutting action.

The applications that keep coming back to this grade:

• Industrial Machine Cleaning
• Dust Removal
• Brick, Tile & Building Material Machine Brush Use
• Mold Cavity Cleaning
• Heat Exchanger Tube Cleaning
• Pipe Robot Brush Attachment Use

The constructions that usually carry it:

• Custom Handheld Detail Brushes
• Custom Tube & Pipe Bore Brushes
• Custom Bottle & Container Brushes

The trade-off: Not ideal when high mechanical cutting or aggressive deburring is needed.

A usable specification carries the construction, the filament diameter and free trim, the density and contact setting, and the service conditions: wet or dry, temperature, and what the cleaner actually is.

The mistakes that most often send a sample back:

• Selecting PTFE Filament from the material name alone without setting filament diameter, trim length, and density
• Using dry stiffness to predict wet behavior without checking moisture absorption or liquid exposure
• Ignoring trapped abrasive particles, chemical concentration, temperature, or contact motion when assessing surface risk

Reference standards behind the figures on this page: ISO 527-1:2019; ASTM D638; ISO 62:2008; ASTM D570-22; ISO 868:2003; ASTM D2240-15(2021); ISO 4892-3:2024; ASTM G154-23; UL 94.

Source: Ensinger — TECAFLON PTFE natural. The cited value is grade-level material data; brush construction can have a lower system limit.
