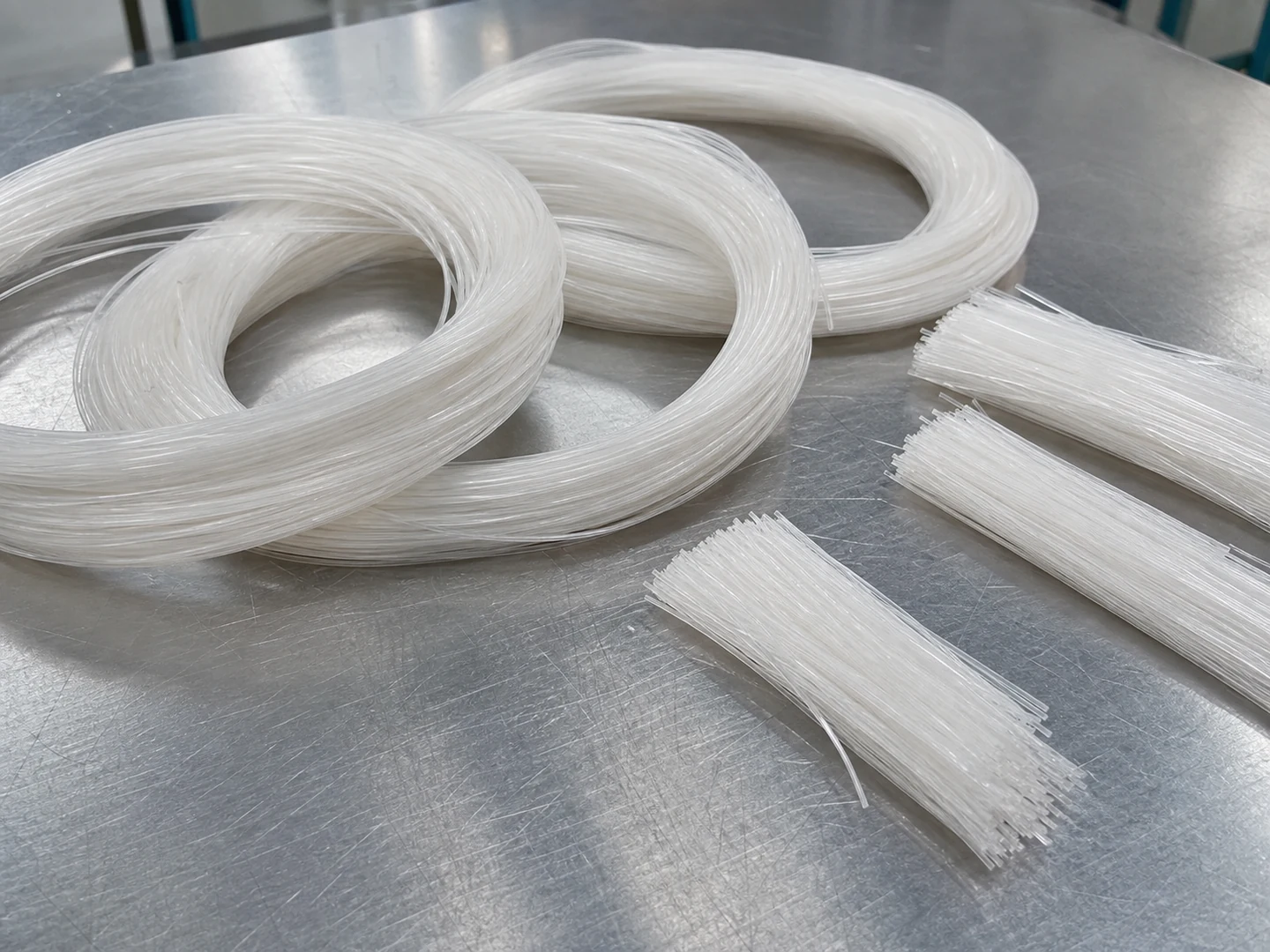

PVDF Filament

PVDF Filament belongs to the fluoropolymer filament group, supplied as filament diameter 0.10–1.50 mm and round or crimped monofilament, drawn in round, rectangular and hollow sections and set in straight rows, helical, staggered and zoned fill patterns.

PVDF Filament is used in custom cleaning brushes for chemical-process equipment, acid/alkali washdown, tank and pipe cleaning.

The realistic alternatives are Nylon PA, PBT and Polypropylene PP. What separates them here is moisture uptake and working temperature, not headline strength.

Use a softer polymer or natural fiber for lower marking; use abrasive or metal wire for greater cutting action.

PVDF Filament is medium; stable wet stiffness, which is why PVDF Filament changes contact through its filament or media size, free trim, density, profile, and engagement.

Published ranges for the filament itself. Read them as a shortlist tool, not as brush performance.

The part people get wrong: stiffness is not a property of the material on its own. A 0.50 mm filament on a 15 mm trim is stiffer than a 0.30 mm filament on a 25 mm trim in the same grade. Fix diameter and trim first, then confirm the material.

PVDF Filament takes up ≤0.04% (24h, ISO 62/ASTM D570).

Suitable for the wet or dry conditions stated in the application list; wash and dry retained-residue constructions after use.

What this means for your application: it barely absorbs water, so dry and wet contact pressure are effectively the same and the brush behaves alike on both duties.

A practical check: soak a sample for an hour and re-measure the trim. If it has moved enough to change the contact band, the grade is wrong for the duty.

Grade-dependent; the cited conductive PVDF grade lists 150°C long- and short-term service. Confirm the actual filament grade and brush construction.

Design to that answer rather than to a raw-material datasheet figure: a brush rating already accounts for filament working under load rather than raw polymer sitting in an oven.

Where it stops working: validate with a sample if the process sits near the top of that band. A permanent bend under load means the answer is a higher-temperature filament family, not a heavier trim.

The usable limit also moves with diameter, trim and contact pressure. A fine filament under light load tolerates more than a thick one under heavy scrubbing.

Use the grade-specific chemical profile; choose the exact PVDF grade for the chemicals and applications stated on this page.

The same cleaner can be harmless or destructive depending on how strong it is, how hot it runs and how long it sits. Quote the concentration and the dwell time, not just the product name.

Before you commit to a quantity: Specify PVDF Filament form, diameter or grade, trim, density, working temperature, cleaning fluid, and surface finish.

About 0.05 mm. Below that the filament turns fragile and breaks under ordinary contact pressure, so 0.05–1.50 mm is the working range.

Free trim runs 3–180 mm, and the two interact: a finer filament needs a shorter trim to keep useful stiffness, while a thicker one carries a longer trim and still lands pressure on the tip.

Split the range by duty: roughly 0.05–0.41 mm for light wiping, dusting and surfaces that mark easily, and 0.41–1.50 mm where residue is packed on and point pressure matters more than surface risk.

Tip treatments available on this filament: end rounding, plasma treatment and conductive filling.

In practical brush terms: reaching deep into a bore or crevice is a diameter problem before it is a length problem. A thicker filament on a moderate trim pushes further in before the tips fold over.

Chemical-process equipment, acid/alkali washdown, tank and pipe cleaning.

The applications that keep coming back to this grade:

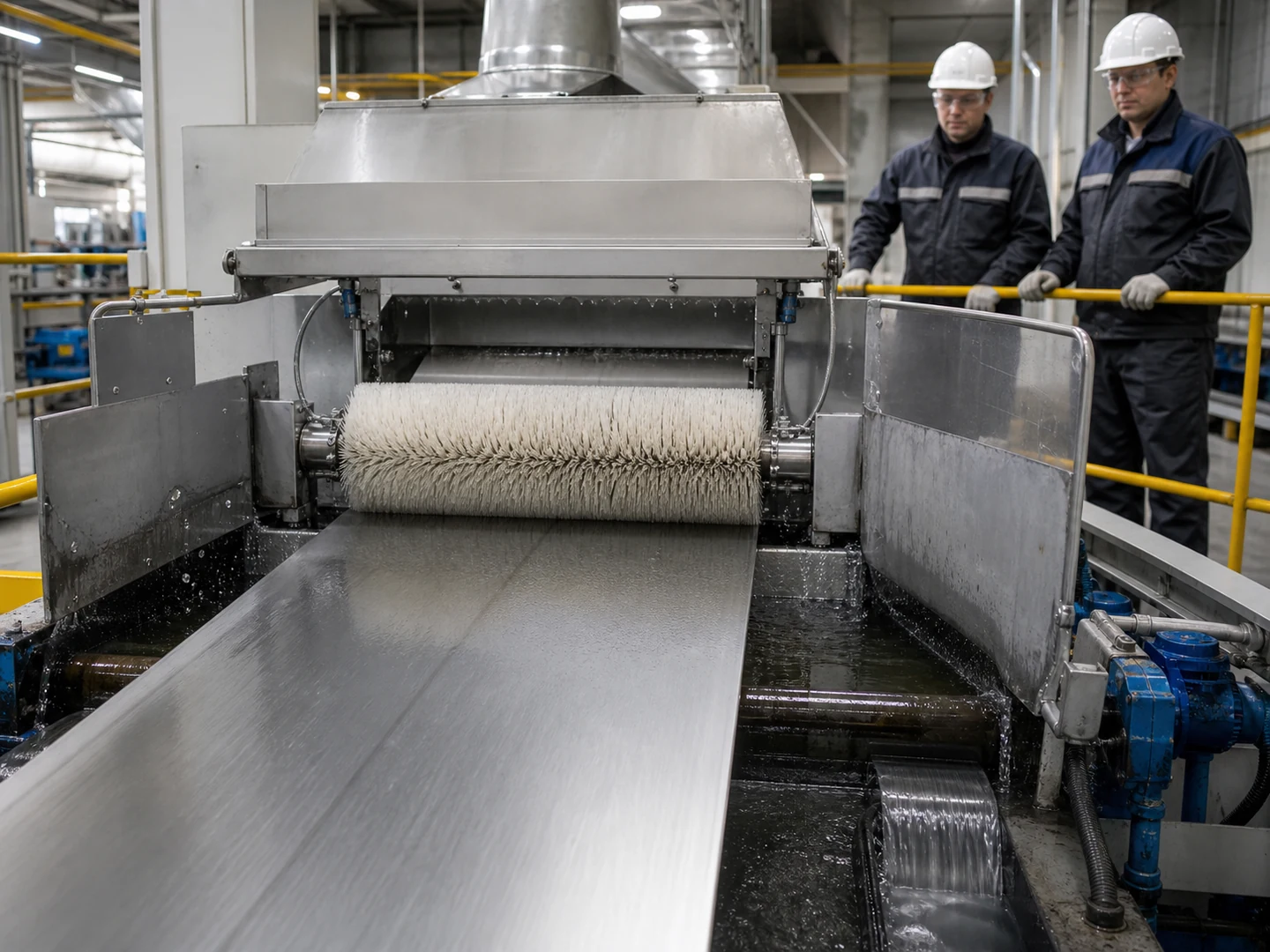

• Metal Acid Pickling & Degreasing Line Brush Use
• Industrial Machine Cleaning
• Steel Rust Removal

The constructions that usually carry it:

• Custom Handheld Detail Brushes

If the sample comes back rejected: Higher cost and lower bend recovery than nylon; use larger radii at repeated flex points.

A usable specification carries the construction, the filament diameter and free trim, the density and contact setting, and the service conditions: wet or dry, temperature, and what the cleaner actually is.

The mistakes that most often send a sample back:

• Selecting PVDF Filament without setting diameter, trim and density
• Using the material on a surface that cannot accept its contact level
• Ignoring temperature, liquid, motion or residue retention

Reference standards behind the figures on this page: ISO 527-1:2019; ASTM D638; ISO 62:2008; ASTM D570-22; ISO 868:2003; ASTM D2240-15(2021); ISO 4892-3:2024; ASTM G154-23; UL 94; ISO 13061-1; ASTM D143.

Source: Ensinger — TECAFLON PVDF ELS black. Grade-level material reference; final brush service is limited by filament, holder, bond and process together.
