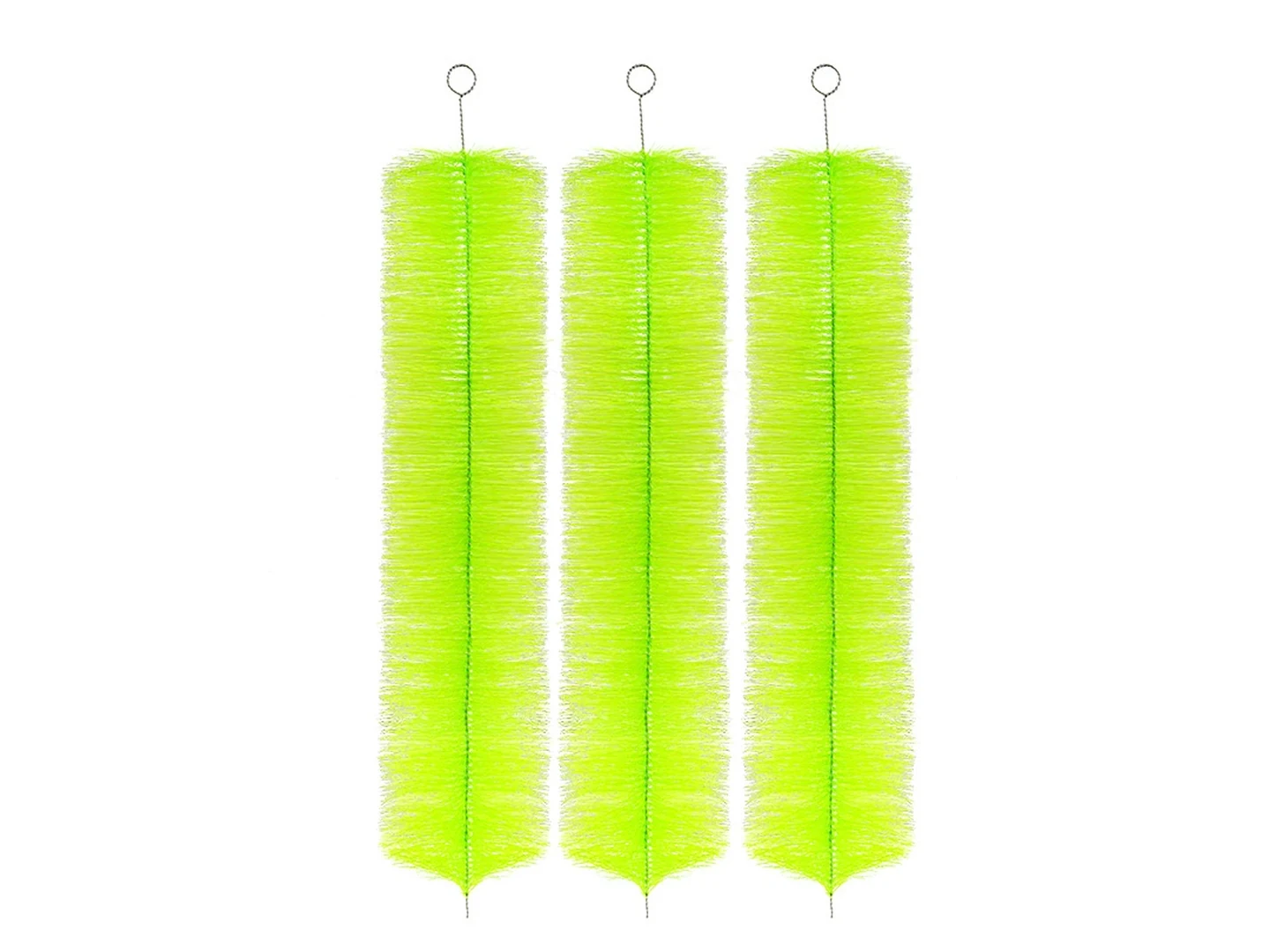

What Is a Mesh Filter Brush?
A mesh filter brush is a bristled cleaning implement engineered to dislodge and sweep away particles lodged in the fine openings of a mesh screen. It typically consists of a core wire or handle, a bristle fill anchored by a twisted‑wire or formed‑brush design, and a shape tailored to the filter geometry (straight tube, cartridge, or panel). Its primary purpose is to restore filtering efficiency without abrading, gouging, or plugging the mesh.
For algae, nutrient pollution, pond/water-quality impact, and aquatic ecosystem context, this section references EPA — Nutrient Pollution Effects on the Environment.
For brush construction terminology, bristle/fill/backing/stem terms, this section references American Brush Manufacturers Association — Brush Lingo.
Common Types of Mesh Filter Brushes
Manufacturers produce mesh filter brushes in many configurations. Understanding the main variations helps you communicate your needs when requesting a quote or comparing suppliers.
- Bristle material: nylon, polyester, brass, stainless steel, abrasive‑impregnated nylon, or natural fibers.
- Brush structure: spiral wound (twisted‑in‑wire), stem‑set (tufted), strip brush, or radial wheel.
- Mounting method: single‑end stem, double‑end handle, threaded adaptor, quick‑coupler, or fixed‑handle.
- Brush profile: straight cylindrical, tapered conical, flared, or bottle shape.
Mesh Filter Brush Comparison: Bristle, Structure, and Mounting
| Feature | Options | Best For | Watch Out For |
|---|---|---|---|
| Bristle material | Nylon (soft, general‑purpose) | Fine mesh screens, food‑grade applications, light residue | Limited heat resistance (softens above ~180°F) |
| Brass (firm, non‑sparking) | Moderate buildup on metal mesh, gentle enough for stainless screen | Not for acidic or high‑alkaline wet environments (corrosion risk) | |
| Stainless steel (aggressive) | Heavy scale, hard carbon, or baked‑on residues | Can damage fine mesh if bristle diameter is too large; must match wire gauge to screen opening | |
| Abrasive nylon (nylon + grit) | Stubborn deposits on robust screens (e.g., mining, dewatering) | Cuts faster; can degrade mesh if grit size is mismatched | |
| Brush structure | Twisted‑in‑wire (spiral) | Most common for tube and pipe cleaning; low cost, flexible | Limited bristle density at small diameters; bristle can pull out under high torque |
| Stem‑set (tufted) | Higher bristle density, custom patterns for flat or irregular surfaces | Higher unit cost; longer production schedule if not in stock | |
| Strip brush holder | Linear filters or panel screens; easy length customization | Requires proper mounting channel; less effective in tight curves | |
| Mounting method | Single‑end stem (bare wire or threaded) | Powered rotary cleaning, drill‑driven operations | Must match chuck or collet size; may need an adaptor |
| Double‑end handle | Manual in‑line cleaning, pull‑through filter tubes | Limited to pull‑through motion; not for rotary use | |
| Quick‑coupler or bayonet | Frequent changeovers, automated systems | Requires mating connector on equipment; compatibility check essential |
How to Choose a Mesh Filter Brush
Start by gathering information about your equipment and the material you need to remove. The following factors help you narrow down the options without guesswork.
1. Equipment interface and access
Measure the inner diameter of the filter tube, the length of the screen area, and any bends or ports. The brush outer diameter should be slightly larger than the screen inner diameter for effective contact, but not so large that it binds. For a curved path, choose a flexible twisted‑in‑wire brush; for straight tubes, a stiffer stem‑set design may last longer.
2. Contact surface and mesh opening
The bristle tip diameter must be smaller than the mesh opening to avoid pushing debris deeper. As a rule of thumb, bristle diameter should be no larger than half the mesh opening. Soft nylon bristles with feathered tips work well for ultra‑fine screens (e.g., <100 micron), while thicker bristles suit coarse screens.
3. Residue type and adhesion
- Dry powder or dust: soft nylon or antistatic fibers often suffice.
- Oily, greasy, or sticky buildup: stiffer bristles (brass or stiff nylon) combined with a spiral design to scrape while allowing solvent flow.
- Scale, rust, or hardened deposits: stainless steel or abrasive nylon; test on a small area first to avoid marring the mesh.
4. Operating environment and chemical compatibility
Consider temperature, moisture, and chemical exposure. Nylon absorbs moisture and can swell in water-based systems; polyester is more water‑resistant. Brass tolerates hydrocarbons but may corrode in acidic or caustic solutions. Stainless steel (typically 304 or 316) handles high heat and aggressive chemicals but adds expense.
5. Replacement cycle and total cost
A low-cost brush that fails quickly or damages screens costs more in the long run. Evaluate the expected number of cleaning cycles before bristle wear, core breakage, or contamination. Suppliers often provide wear data; ask for it in your inquiry. If downtime is expensive, consider a user‑replaceable bristle head system rather than a disposable one‑piece brush.
Common Mistakes When Choosing a Mesh Filter Brush
- Focusing only on cost – A low‑cost brush may shed bristles, scratch the mesh, or not fit properly, increasing filtration downtime.
- Ignoring bristle‑mesh compatibility – Using a brass brush on an aluminum mesh can cause galvanic corrosion in wet environments.
- Selecting the wrong diameter – A brush that is too small misses residue; one that is too large can bind or distort the screen frame.
- Overlooking mounting requirements – A threaded‑hole adaptor may not match your cleaning rod’s thread pitch, rendering the brush useless without ad‑hoc modifications.
- Skipping chemical resistance checks – Aggressive cleaning solvents can dissolve nylon bristles or weaken the core wire coating.
- Assuming one brush fits all screens – Different mesh counts and materials demand different bristle stiffness and tip profiles; keep a selection chart on hand.
When a Standard Mesh Filter Brush Is Not Enough
There are situations where an off‑the‑shelf brush will fail. If your application involves:
- Non‑standard screen shapes (oval, stepped, or with internal baffles)
- Extremely fine or fragile mesh (e.g., precision woven <20 micron)
- High‑temperature or high‑pressure cleaning cycles beyond typical material limits
- Residue that chemically binds to standard bristle fibers
- Automated cleaning heads with tight dimensional tolerances
…you should request a custom drawing or sample fabrication. In these cases, provide the filter manufacturer, mesh specification, cleaning environment details, and a sketch with critical dimensions. A reputable technical brush manufacturer will review your requirements and propose a tailored solution. Do not rely on generic catalog part numbers for mission‑critical filtration steps.
Final Takeaway
Choosing a mesh filter brush is a straightforward engineering decision when you work from the filter outward. Identify the screen dimensions, material, and residue first; then select bristle type, structure, and mounting to fit your cleaning method. Keep a small stock of validated brushes and review performance after a few cleaning cycles. For unusual conditions, invest in a custom design rather than adapting an ill‑fitting standard brush that risks filter damage and production delays.
Frequently Asked Questions
What is the difference between a twisted‑in‑wire brush and a stem‑set brush for mesh filters?
A twisted‑in‑wire brush has bristles captured between twisted core wires, making it flexible and economical for tube cleaning. A stem‑set brush has bristles anchored into a solid stem or hub, offering higher density and more aggressive cleaning action. For delicate mesh, the twisted design is often safer because it is less rigid.
Can I use a wire brush on a stainless steel mesh screen?
Yes, if the wire bristle is softer than the mesh material (e.g., brass bristle on stainless steel mesh) or if the wire diameter is small enough to avoid permanent scratching. Always test on a non‑critical area first. Using a hard stainless steel brush on a soft stainless screen can gall the surface.
How do I measure my filter tube to get the correct brush size?
Measure the inner diameter (ID) of the tube with calipers. The brush’s overall bristle diameter should be 10–20% larger than the ID for a snug fit. For very fine mesh, go toward the lower end of that range. Also measure the length of the fouled section to determine the brush’s trim length.
What bristle material is food‑safe for mesh filter brushes?
Nylon and polyester bristles are commonly accepted in food processing when they comply with FDA or EU food contact material regulations. Always confirm with the brush supplier that the specific grade and colorant meet your region’s food‑contact standards. Natural bristles (e.g., Tampico) are also used but may harbor bacteria if not dried properly.
Why does my brush shed bristles into the mesh?
Shedding usually happens when the bristle is too stiff for the mesh opening, the brush diameter is oversized causing excessive drag, or the core wire is damaged. Check that the bristle tip diameter is significantly smaller than the mesh opening. Also inspect the brush for bent or broken core wires that can slice bristles during use.
Can I use the same brush for multiple mesh sizes?
A single brush will not clean different mesh counts optimally. A brush sized for a 200‑micron screen may damage a 50‑micron screen. Keep a dedicated brush for each mesh specification, and label them clearly to avoid cross‑contamination.
How often should I replace a mesh filter brush?
Replace the brush when bristles are noticeably shortened, the core wire shows signs of fatigue (kinking or unwinding), or when cleaning effectiveness drops. In a high‑cycle industrial setting, this could be every few hundred cycles. For manual, low‑frequency use, a brush might last years if rinsed and dried after each use.
